沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineEngine with Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
123 次

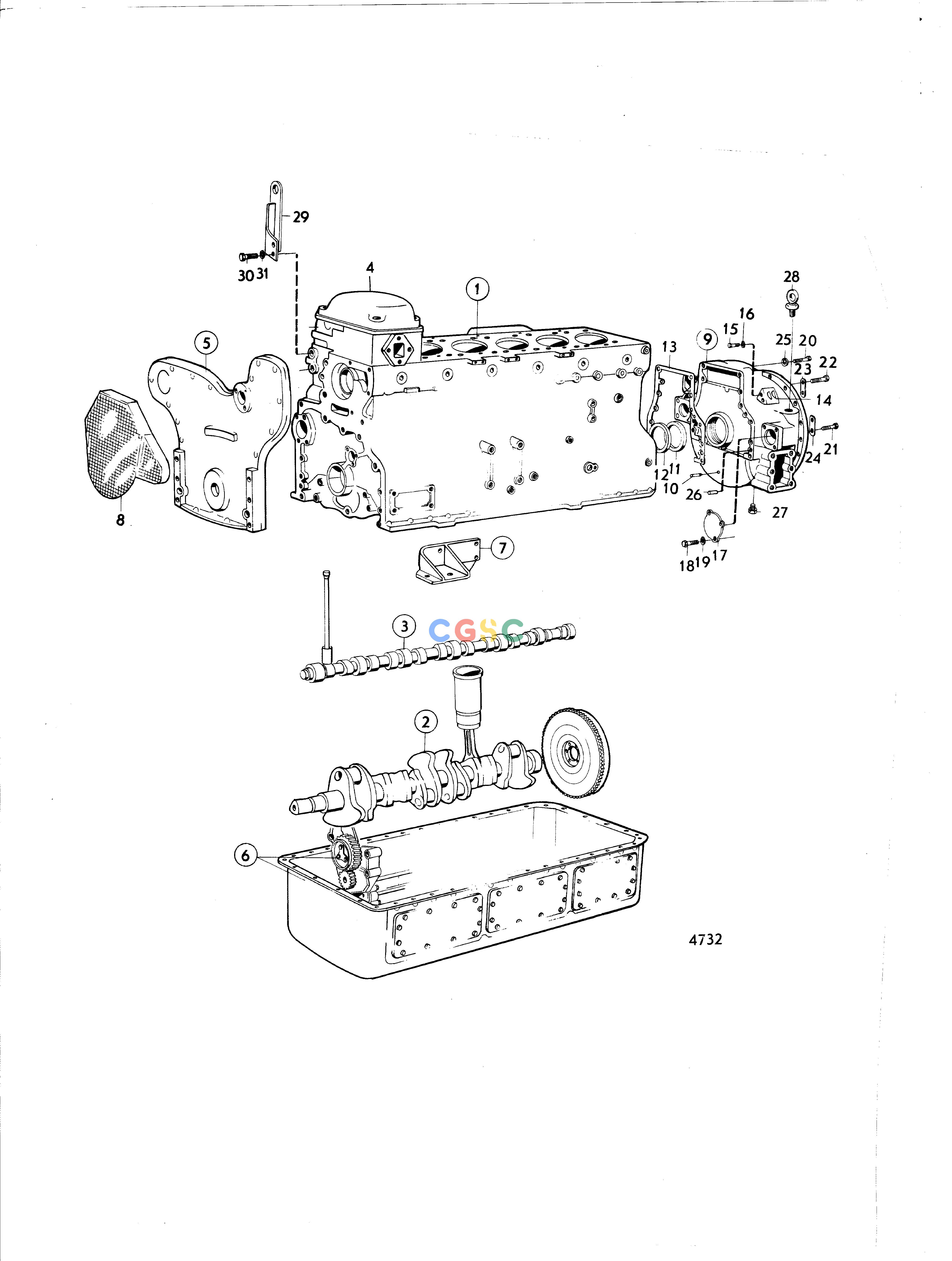

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7742190_004
|
|
cylinder block
|
|
| 2. |
7742190_008
|
|
crankshaft and related parts
|
|
| 2. |
|
|
|
|
| 3. |
7742190_010
|
|
camshaft
|
|
| 4. |
7742190_002
|
|
cylinder head
|
|
| 5. |
7742190_012
|
|
timing gear casing and gears
|
|
| 5. |
|
|
|
|
| 6. |
7742190_015
|
|
lubricating system
|
|
| 7. |
7742190_027
|
|
engine suspension
|
|
| 8. |
7742190_014
|
|
belt protection and installation comps
|
|
| 8. |
|
|
|
|
| 9. |
846348
|
[1] |
Flywheel housing
|
|
| 10. |
403270
|
[1] |
Pin
|
|
| 11. |
821754
|
[1] |
Sealing ring
|
|
| 12. |
821767
|
[1] |
Spacer ring
|
|
| 13. |
468556
|
[1] |
Gasket
|
|
| 14. |
417429
|
[1] |
Breather cap
|
|
| 15. |
940100
|
[2] |
Hexagon screw
|
|
| 16. |
941906
|
[2] |
Spring washer
|
|
| 17. |
423081
|
[1] |
Cover
|
|
| 18. |
940114
|
[3] |
Hexagon screw
|
|
| 19. |
942336
|
[3] |
Spring washer
|
|
| 20. |
955582
|
[2] |
Hexagon screw
|
L=70mm
|
| 20. |
955583
|
[2] |
Hexagon screw
|
L=76mm alt
|
| 21. |
955587
|
[2] |
Hexagon screw
|
|
| 22. |
955580
|
[8] |
Hexagon screw
|
|
| 23. |
941464
|
[1] |
Tab washer
|
L=68mm
|
| 24. |
941465
|
[5] |
Tab washer
|
L=81mm
|
| 25. |
941911
|
[2] |
Spring washer
|
|
| 26. |
191171
|
[2] |
Pin
|
|
| 27. |
952357
|
[1] |
Plug
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
955561
|
[2] |
Hexagon screw
|
|
| 31. |
940280
|
[2] |
Spring washer
|
|
