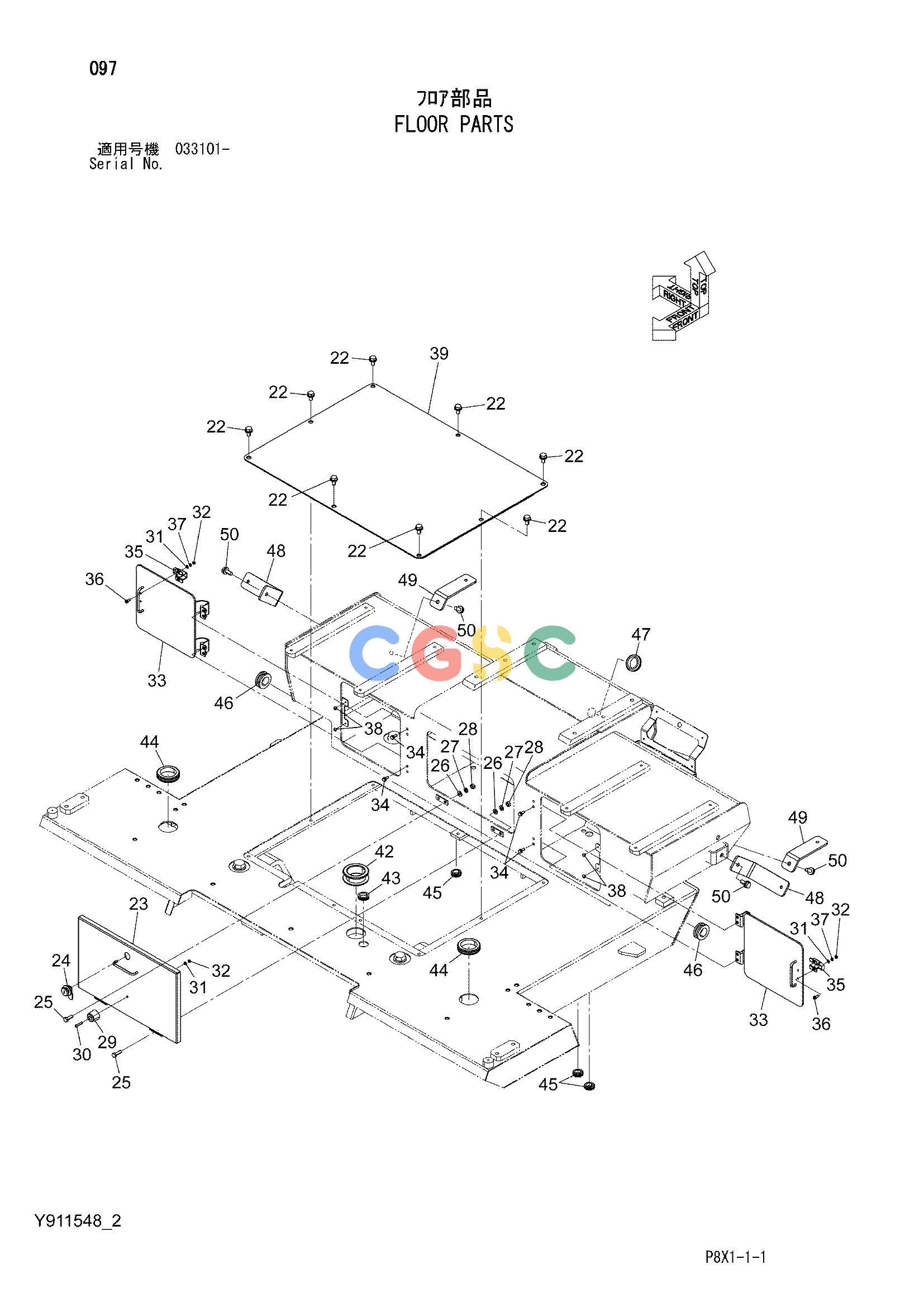

日立零件查询（CS125-3）FLOOR PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
473 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 22. | J271020 | [8] | BOLT;SEMS | |
| 22A. | J901020 | [1] | BOLT | |
| 22B. | J222010 | [1] | WASHER | |
| 23. | Y701197 | [1] | COVER | |
| 24. | 4363359 | [1] | LOCK | |
| 25. | J900825 | [4] | BOLT | |
| 26. | A590108 | [4] | WASHER;PLANE | |
| 27. | A590908 | [4] | WASHER;SPRING | |
| 28. | M500807 | [4] | NUT | |
| 29. | Y409163 | [1] | RUBBER;CUSHION | |
| 30. | M430525 | [1] | SCREW | |
| 31. | A590105 | [5] | WASHER;PLANE | |
| 32. | M500504 | [5] | NUT | |
| 33. | Y802812 | [2] | COVER | |
| 34. | J260616 | [8] | BOLT;SEMS | |
| 34A. | J900616 | [1] | BOLT | |
| 34B. | A590106 | [1] | WASHER;PLANE | |
| 35. | Y402628 | [2] | RATCH | |
| 36. | J460516 | [4] | SCREW;SEMS | |
| 37. | A590905 | [4] | WASHER;SPRING | |
| 38. | Y404556 | [4] | RUBBER;CUSHION | |
| 39. | Y802817 | [1] | COVER | |
| 42. | 4338858 | [1] | BUSHING;RUBBER | |
| 43. | 4274544 | [1] | BUSHING;RUBBER | |
| 44. | 4207839 | [2] | BUSHING;RUBBER | |
| 45. | 94-2816 | [3] | BUSHING;RUBBER | |
| 46. | 4279257 | [2] | BUSHING;RUBBER | |
| 47. | 4184582 | [1] | BUSHING;RUBBER | |
| 48. | Y417910 | [2] | BRACKET | |
| 49. | Y417911 | [2] | BRACKET | |
| 50. | J271025 | [4] | BOLT;SEMS | |
| 50A. | J901025 | [1] | BOLT | |
| 50B. | J222010 | [1] | WASHER | |
