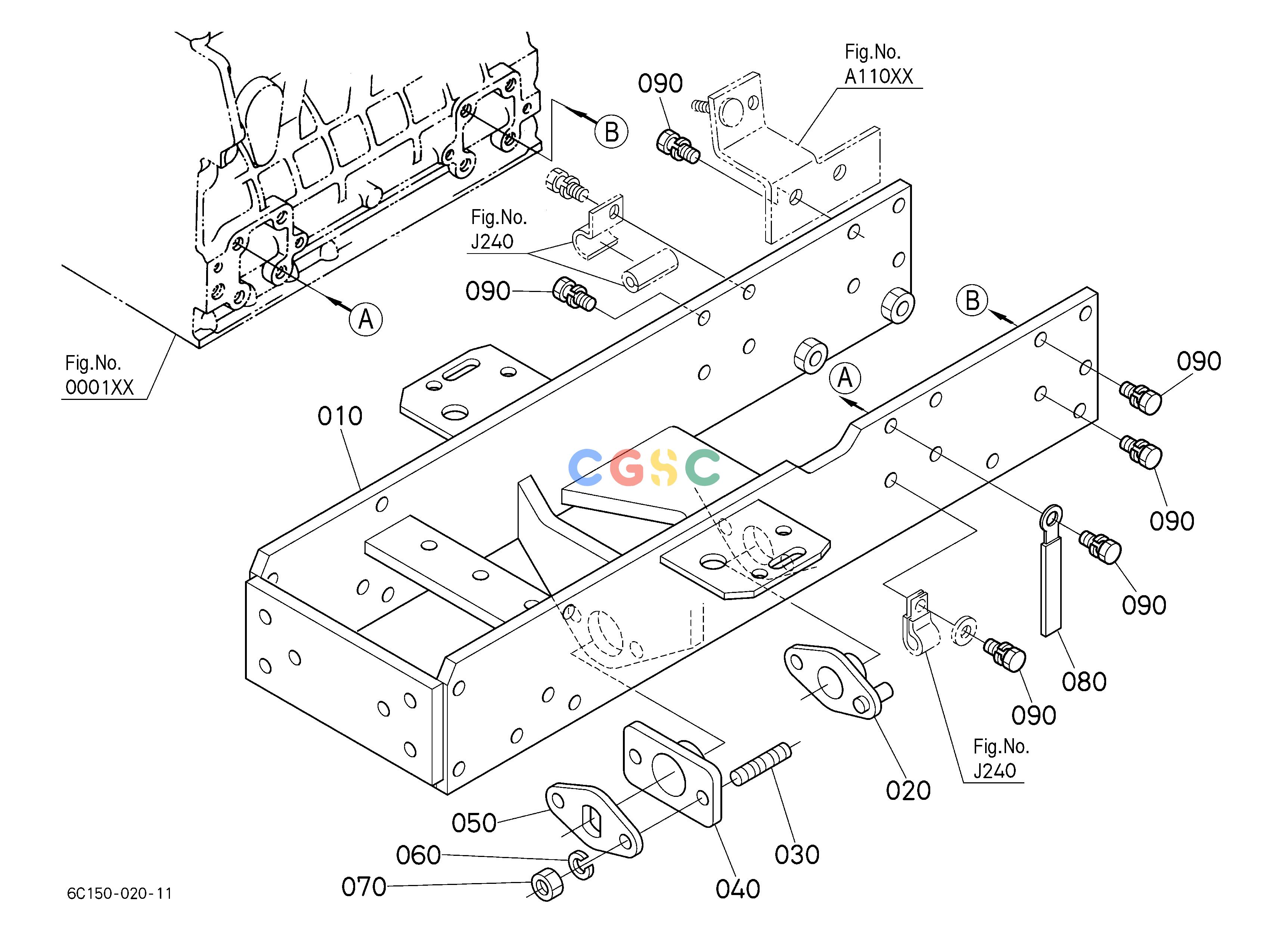

久保田零件查询G10102 FRONT AXLE FRAME [2WD] FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
173 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04078210
|
[1] |
COMP.FRAME FRONT
|
41.8000(lbs); 19.000
|
| 010. |
6C04078214
|
[1] |
COMP.FRAME FRONT
|
41.3600(lbs); 18.800
|
| 020. |
6780051980
|
[1] |
BUSH
|
0.2750(lbs); 0.125
|
| 030. |
0151761025
|
[2] |
STUD
|
0.0440(lbs); 0.020
|
| 040. |
6780051972
|
[1] |
BUSH
|
0.3300(lbs); 0.150
|
| 050. |
3270151960
|
[1] |
WASHER LOCK
|
0.1980(lbs); 0.090
|
| 060. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 070. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
3534029380
|
[1] |
CLAMP CORD
|
0.0220(lbs); 0.010
|
| 090. |
0113351025
|
[15] |
BOLT
|
0.0506(lbs); 0.023
|
