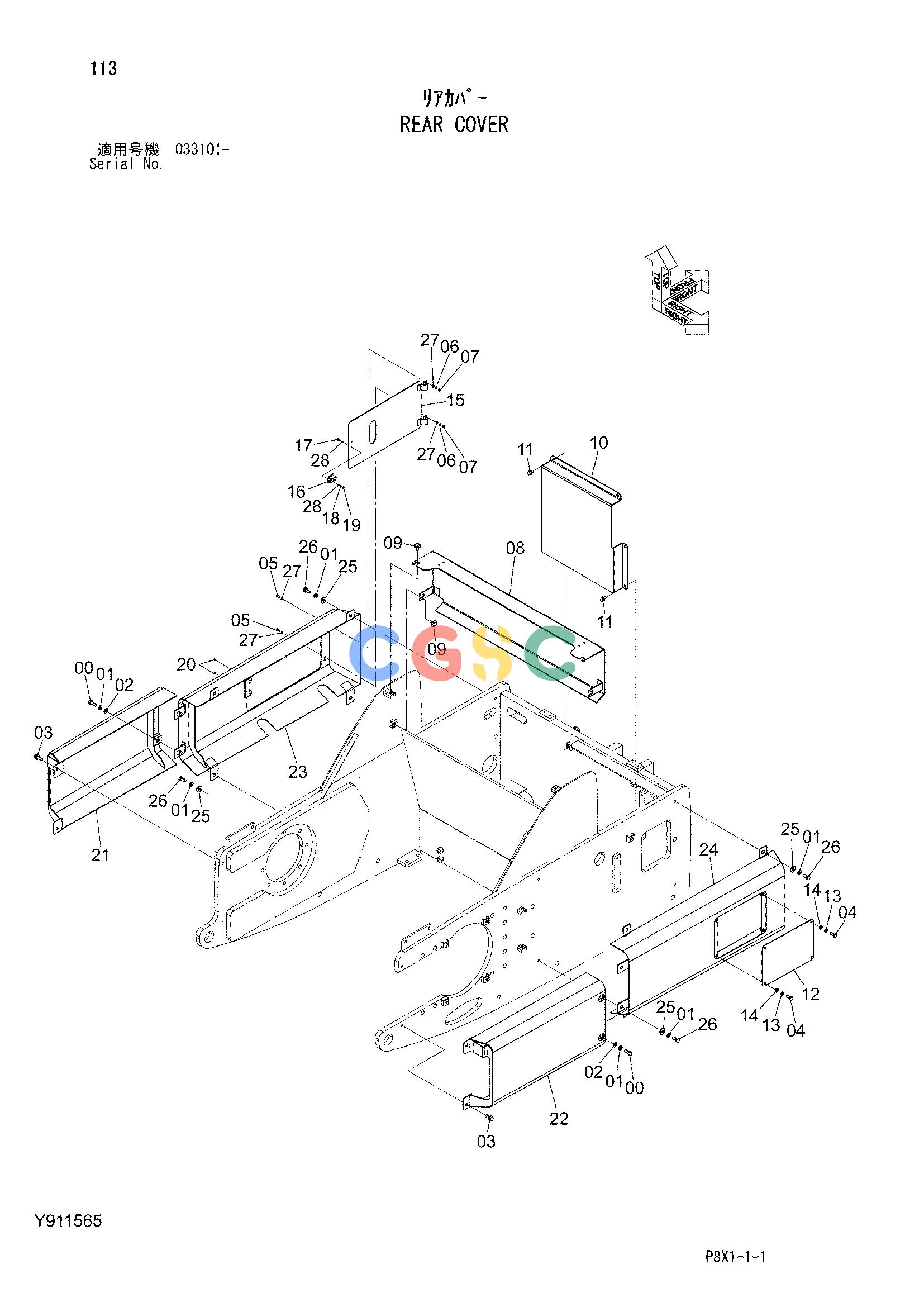

日立零件查询（CS125-3）REAR COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
363 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | J901230 | [4] | BOLT | |
| 01. | A590912 | [12] | WASHER;SPRING | |
| 02. | A590112 | [4] | WASHER;PLANE | |
| 03. | J271230 | [4] | BOLT;SEMS | |
| 03A. | J901230 | [1] | BOLT | |
| 03B. | J222012 | [1] | WASHER | |
| 04. | J901025 | [4] | BOLT | |
| 05. | J900616 | [4] | BOLT | |
| 06. | A590906 | [4] | WASHER;SPRING | |
| 07. | M500605 | [4] | NUT | |
| 08. | Y700341 | [1] | COVER | |
| 09. | J281025 | [4] | BOLT;SEMS | |
| 09A. | J901025 | [1] | BOLT | |
| 09B. | 4486055 | [1] | WASHER | |
| 10. | Y300710 | [1] | COVER | |
| 11. | J271020 | [4] | BOLT;SEMS | |
| 11A. | J901020 | [1] | BOLT | |
| 11B. | J222010 | [1] | WASHER | |
| 12. | Y405011 | [1] | COVER | |
| 13. | A590910 | [4] | WASHER;SPRING | |
| 14. | A590110 | [4] | WASHER;PLANE | |
| 15. | Y802811 | [1] | COVER | |
| 16. | Y402628 | [1] | RATCH | |
| 17. | M430516 | [2] | SCREW | |
| 18. | A590905 | [2] | WASHER;SPRING | |
| 19. | M500504 | [2] | NUT | |
| 20. | Y404556 | [2] | RUBBER;CUSHION | |
| 21. | Y701028 | [1] | COVER;SIDE (L) | |
| 22. | Y701029 | [1] | COVER;SIDE (R) | |
| 23. | Y701207 | [1] | COVER;SIDE | |
| 24. | Y701208 | [1] | COVER;SIDE | |
| 25. | 449490 | [8] | WASHER | |
| 26. | J901225 | [8] | BOLT | |
| 27. | A590106 | [8] | WASHER;PLANE | |
| 28. | A590105 | [4] | WASHER;PLANE | |
