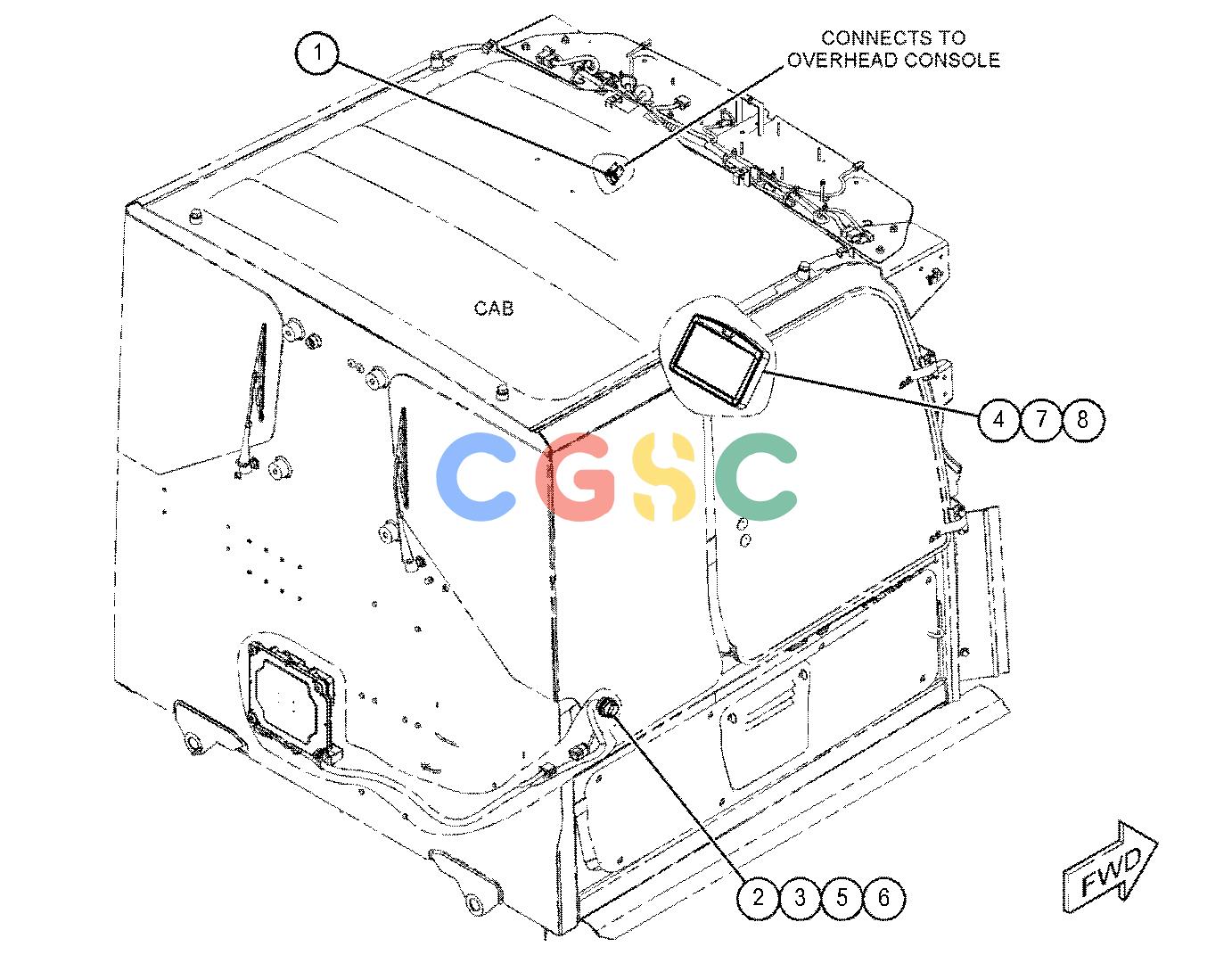

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 228-6089 | [1] | PLUG(ROCKER SWITCH) | |
| 2. | 268-8749 | [1] | CAP-CONNECTOR | |
| 3. | 311-2813 | [1] | SEAL | |
| 4. | 459-4756Y | [1] | CONTROL GP-ELECTRONIC(INDICATION DISPLAY) | |
| 5. | 211-0052 | [1] | NUT(1-11/16-18-THD) | |
| 6. | 310-0674 | [1] | LOCKWASHER | |
| 7. | 7I-2272M | [8] | BOLT(M5X0.8X12-MM) | |
| 8. | 8T-0328 | [8] | WASHER-HARD(5.5X10X1-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
