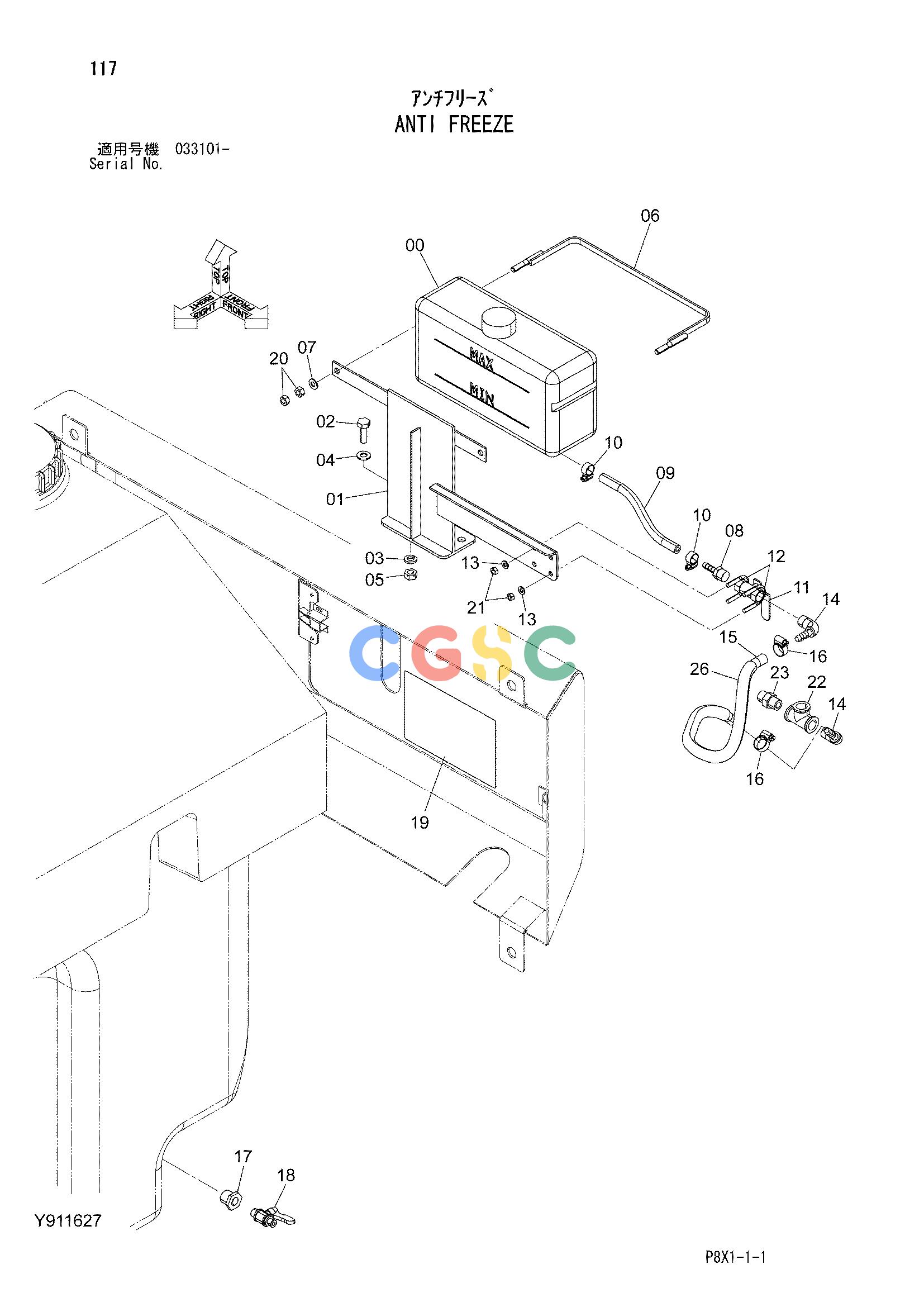

日立零件查询（CS125-3）ANTI FREEZE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
492 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y404518 | [1] | TANK | |
| 01. | Y801106 | [1] | BRACKET | |
| 02. | J901030 | [2] | BOLT | |
| 03. | A590910 | [2] | WASHER;SPRING | |
| 04. | A590110 | [2] | WASHER;PLANE | |
| 05. | J950010 | [2] | NUT | |
| 06. | Y970327 | [1] | CLAMP | |
| 07. | A590108 | [2] | WASHER;PLANE | |
| 08. | Y403219 | [1] | HOSE;FITTING | |
| 09. | Y405151 | [1] | HOSE;WATER | |
| 10. | 4235205 | [2] | CLAMP;HOSE | |
| 11. | Y401986 | [1] | VALVE;BALL | |
| 12. | Y401840 | [2] | BOLT;U | |
| 13. | A590106 | [4] | WASHER;PLANE | |
| 14. | Y402069 | [2] | HOSE;FITTING | |
| 15. | Y407730 | [1] | HOSE;VINYL | |
| 16. | 4514700 | [2] | CLAMP;HOSE | |
| 17. | J728482 | [1] | REDUCER | |
| 18. | Y404982 | [1] | VALVE;BALL | |
| 19. | Y302342 | [1] | DECAL | (CAUTION:ANTI FREEZE SYSTEM) |
| 20. | M500807 | [4] | NUT | |
| 21. | M500605 | [4] | NUT | |
| 22. | J70483 | [1] | TEE | |
| 23. | J70783 | [1] | ADAPTER | |
| 26. | 4327293 | [1] | PROTECTOR | |
