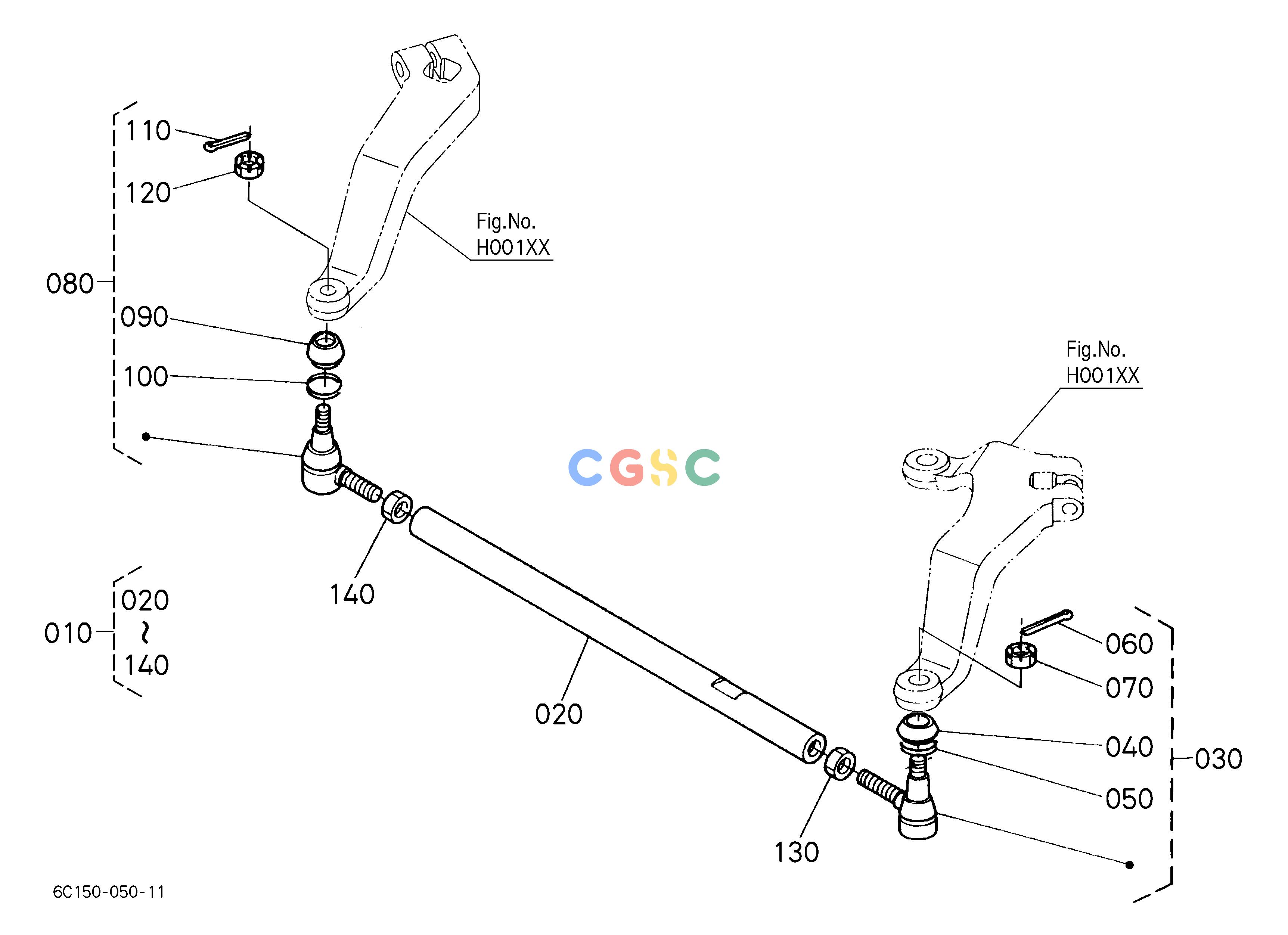

久保田零件查询H00502 TIE ROD [2WD] STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6781056502
|
[1] |
ASSY ROD TIE
|
4.7080(lbs); 2.140
|
| 020. |
6781056512
|
[1] |
ROD TIE
|
3.3000(lbs); 1.500
|
| 030. |
3844044780
|
[1] |
ASSY END TIE ROD RH
|
0.7084(lbs); 0.322
|
| 030. |
H384044700
|
[1] |
END,ROD,ASSY
|
0.7084(lbs); 0.322
|
| 040. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 050. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 060. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 070. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 080. |
3844044790
|
[1] |
ASSY END TIE ROD LH
|
0.7040(lbs); 0.320
|
| 090. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 100. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 110. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 120. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 130. |
0217450160
|
[1] |
NUT
|
0.0484(lbs); 0.022
|
| 140. |
3224012280
|
[1] |
NUT
|
0.0374(lbs); 0.017
|
