日立零件查询（CS125-3）CONTROL PART Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
609 次

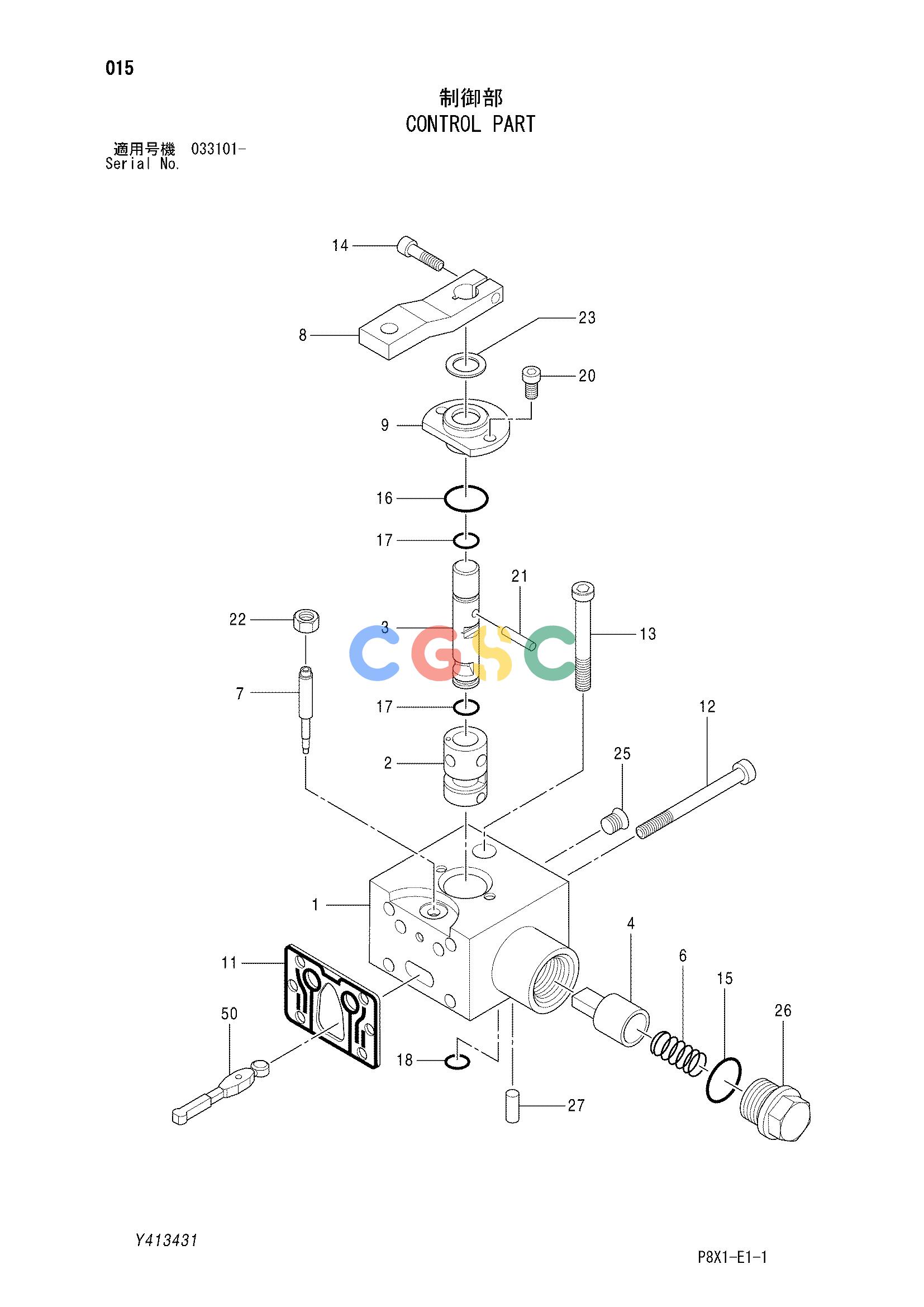

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y413431 | [1] | CONTROL PART | |
| 1-27. | Y413452 | [1] | INNER CONTROL PART | |
| 1. | +++++++ | [1] | BODY | |
| 2. | +++++++ | [1] | BUSHING | |
| 3. | +++++++ | [1] | SHAFT | |
| 4. | +++++++ | [1] | SEAT;SPRING | |
| 6. | +++++++ | [1] | SPRING | |
| 7. | +++++++ | [1] | SCREW;ADJUST | |
| 8. | Y413453 | [1] | LEVER | |
| 9. | +++++++ | [1] | COVER | |
| 11. | Y408520 | [1] | GASKET | |
| 12. | Y413454 | [4] | BOLT;SOCKET | |
| 13. | Y413455 | [1] | BOLT;SOCKET | |
| 14. | Y413456 | [1] | BOLT;SOCKET | |
| 15. | Y413457 | [1] | O-RING | |
| 16. | Y413458 | [1] | O-RING | |
| 17. | Y413459 | [2] | O-RING | |
| 18. | Y413460 | [1] | O-RING | |
| 20. | Y413461 | [2] | BOLT;SOCKET | |
| 21. | +++++++ | [1] | PIN | |
| 22. | 0264007 | [1] | NUT | |
| 23. | +++++++ | [1] | SHIM | |
| 25. | +++++++ | [1] | PLUG | |
| 26. | +++++++ | [1] | PLUG | |
| 27. | +++++++ | [1] | PIN | |
| 50. | Y413462 | [1] | LEVER | |
