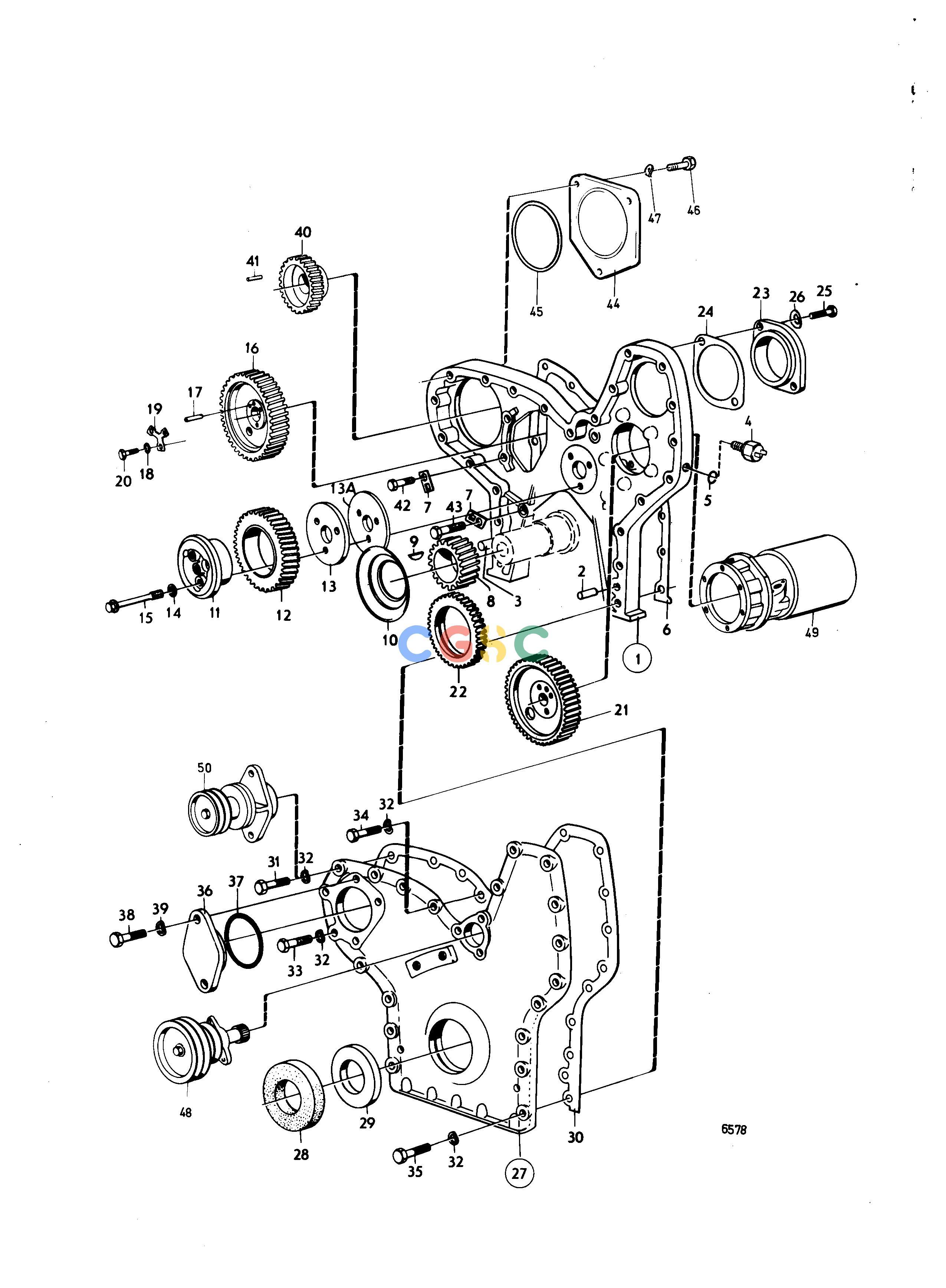

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCEngineTiming Gear Casing and Timing GearsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
422622
|
[1] |
Timing gear casing
|
|
| 2. |
941510
|
[1] |
Pin
|
|
| 3. |
941511
|
[1] |
Pin
|
|
| 4. |
354671
|
[1] |
Tachometer sensor
|
See group 3
|
| 5. |
925059
|
[1] |
O-ring
|
|
| 6. |
468557
|
[1] |
Gasket
|
|
| 7. |
941572
|
[5] |
Tab washer
|
|
| 8. |
423080
|
[1] |
Gear
|
|
| 9. |
422253
|
[1] |
Woodruff key
|
|
| 10. |
423177
|
[1] |
Oil deflector
|
|
| 11. |
467463
|
[1] |
Bearing spindle
|
|
| 12. |
467461
|
[1] |
Idler gear
|
|
| 13. |
467529
|
[1] |
Thrust washer
|
|
| 13A. |
467528
|
[1] |
Bearing shield
|
|
| 14. |
942180
|
[3] |
Disc spring
|
|
| 15. |
468738
|
[3] |
Hexagon nut
|
|
| 16. |
423079
|
[1] |
Gear
|
|
| 17. |
950588
|
[1] |
Pin
|
|
| 18. |
467055
|
[3] |
Washer
|
|
| 19. |
467052
|
[1] |
Lock washer
|
|
| 20. |
940128
|
[3] |
Hexagon screw
|
|
| 21. |
423079
|
[1] |
Gear
|
See group 2C
|
| 22. |
422047
|
[1] |
Gear
|
|
| 23. |
420183
|
[1] |
Cover
|
|
| 24. |
820751
|
[1] |
Gasket
|
|
| 25. |
940115
|
[2] |
Hexagon screw
|
|
| 26. |
942336
|
[2] |
Spring washer
|
|
| 27. |
823637
|
[1] |
Cover
|
|
| 28. |
941666
|
[1] |
Sealing ring
|
|
| 29. |
837851
|
[1] |
Sealing ring
|
|
| 30. |
422626
|
[1] |
Gasket
|
|
| 31. |
940162
|
[10] |
Hexagon screw
|
|
| 32. |
942336
|
[20] |
Spring washer
|
|
| 33. |
955538
|
[2] |
Hexagon screw
|
|
| 34. |
955541
|
[2] |
Hexagon screw
|
|
| 35. |
955544
|
[6] |
Hexagon screw
|
|
| 36. |
420183
|
[1] |
Cover
|
|
| 37. |
420213
|
[1] |
Seal
|
|
| 38. |
940115
|
[2] |
Hexagon screw
|
|
| 39. |
942336
|
[2] |
Spring washer
|
|
| 40. |
820957
|
[1] |
Gear
|
For BB115 with Volvo Penta reduction reverse gear., See group2B
|
| 41. |
950564
|
[1] |
Pin
|
|
| 42. |
941939
|
[4] |
Screw
|
|
| 43. |
955537
|
[1] |
Hexagon screw
|
|
| 44. |
420178
|
[1] |
Cover
|
|
| 45. |
413619
|
[1] |
Gasket
|
|
| 46. |
955576
|
[3] |
Hexagon screw
|
|
| 47. |
941911
|
[3] |
Spring washer
|
|
| 48. |
|
|
|
|
| 49. |
|
|
|
|
| 50. |
|
|
|
See group 9
|
