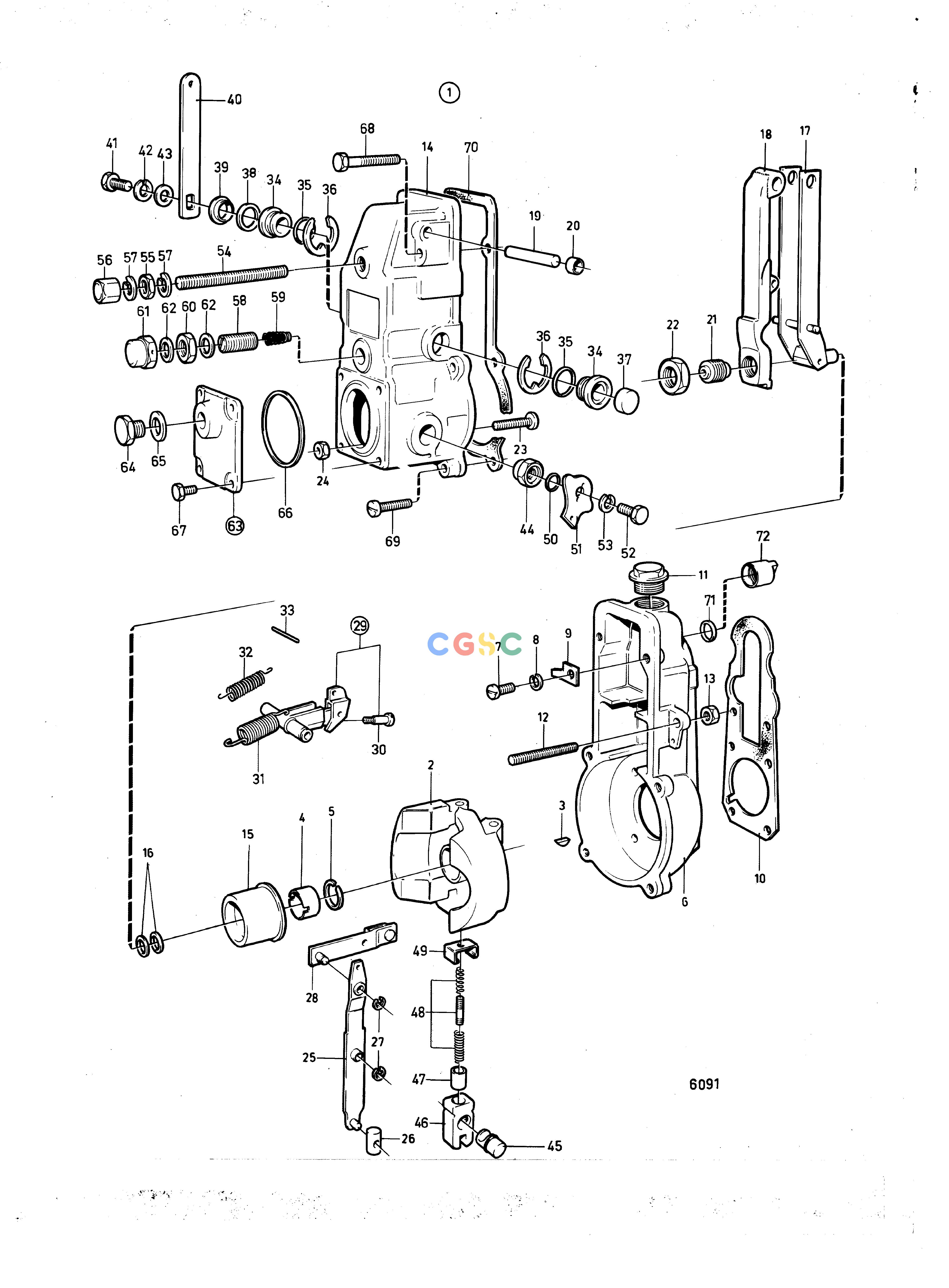

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemCentrifugal Governor: 240909EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
240909
|
[1] |
Centrifugal governor
|
|
| 2. |
870801
|
[1] |
Regulator weight
|
|
| 3. |
25464
|
[1] |
Key
|
|
| 4. |
238994
|
[1] |
Round nut
|
|
| 5. |
238995
|
[1] |
Spring washer
|
|
| 6. |
870907
|
[1] |
Regulator housing
|
|
| 7. |
956095
|
[8] |
Cross recessed screw
|
|
| 8. |
941906
|
[8] |
Spring washer
|
|
| 9. |
870908
|
[1] |
Bracket
|
|
| 10. |
240058
|
[1] |
Gasket
|
|
| 11. |
240919
|
[1] |
Plug
|
|
| 12. |
239003
|
[1] |
Screw
|
|
| 13. |
955781
|
[1] |
Hexagon nut
|
|
| 14. |
|
|
|
For engine with manual speed control.
|
| 15. |
870878
|
[1] |
Bushing
|
|
| 16. |
239007
|
[1] |
Spacer
|
TH=0.2mm
|
| 16. |
239008
|
[1] |
Washer
|
TH=0.4mm
|
| 16. |
239009
|
[1] |
Washer
|
TH=1.0mm
|
| 17. |
240373
|
[1] |
Arm
|
|
| 18. |
241008
|
[1] |
Tensioning arm
|
|
| 19. |
239017
|
[1] |
Shaft
|
|
| 20. |
240374
|
[2] |
Plug
|
|
| 21. |
239019
|
[1] |
Cover
|
|
| 22. |
239020
|
[1] |
Nut
|
|
| 23. |
239021
|
[1] |
Screw
|
|
| 24. |
955781
|
[1] |
Hexagon nut
|
|
| 25. |
240375
|
[1] |
Lever
|
(870881)
|
| 26. |
240376
|
[1] |
Cube
|
|
| 27. |
951667
|
[2] |
E-circlip
|
|
| 28. |
|
|
|
|
| 29. |
870887
|
[1] |
Swivel arm
|
|
| 30. |
239031
|
[1] |
Screw
|
|
| 31. |
243643
|
[1] |
Spring
|
|
| 32. |
845009
|
[1] |
Spring
|
(239041)
|
| 33. |
240370
|
[2] |
Hose
|
|
| 34. |
240382
|
[2] |
Bearing bushing
|
|
| 35. |
240383
|
[2] |
Gasket
|
|
| 36. |
239036
|
[2] |
Lock washer
|
|
| 37. |
239037
|
[1] |
Cover
|
|
| 38. |
240063
|
[1] |
Sealing ring
|
|
| 39. |
238132
|
[1] |
Washer
|
|
| 40. |
239039
|
[1] |
Arm
|
|
| 41. |
955270
|
[1] |
Hexagon screw
|
|
| 42. |
941906
|
[1] |
Spring washer
|
|
| 43. |
955892
|
[1] |
Washer
|
|
| 44. |
239048
|
[1] |
Bearing bushing
|
|
| 45. |
239049
|
[1] |
Shaft
|
|
| 46. |
870917
|
[1] |
Link
|
|
| 47. |
239051
|
[1] |
Sleeve
|
|
| 48. |
240387
|
[1] |
Spring
|
L=23,0mm
|
| 48. |
240388
|
[1] |
Spring
|
L=26,5mm
|
| 48. |
240386
|
[1] |
Spring
|
L=19,5mm
|
| 49. |
870916
|
[1] |
Brace
|
|
| 50. |
239058
|
[1] |
Gasket
|
|
| 51. |
|
|
|
See group 2D
|
| 52. |
955270
|
[1] |
Hexagon screw
|
See group 2D
|
| 53. |
941906
|
[1] |
Spring washer
|
See group 2D
|
| 54. |
239042
|
[1] |
Screw
|
|
| 55. |
955781
|
[1] |
Hexagon nut
|
|
| 56. |
870636
|
[1] |
Nut
|
|
| 57. |
190990
|
[2] |
Gasket
|
|
| 58. |
239044
|
[1] |
Screw
|
|
| 59. |
870667
|
[1] |
Spring
|
|
| 60. |
870900
|
[1] |
Nut
|
|
| 61. |
870637
|
[1] |
Nut
|
|
| 62. |
18839
|
[2] |
Gasket
|
|
| 63. |
240393
|
[1] |
Regulator cover
|
|
| 64. |
240570
|
[1] |
Screw
|
|
| 65. |
18836
|
[1] |
Gasket
|
|
| 66. |
240394
|
[1] |
Gasket
|
|
| 67. |
870935
|
[2] |
Screw
|
|
| 67. |
955269
|
[2] |
Hexagon screw
|
|
| 68. |
940101
|
[2] |
Hexagon screw
|
(240772)
|
| 69. |
241116
|
[4] |
Screw
|
|
| 70. |
6643417
|
[1] |
Gasket
|
(239071)
|
| 71. |
240017
|
[1] |
Gasket
|
|
| 72. |
870911
|
[1] |
Plug
|
|
