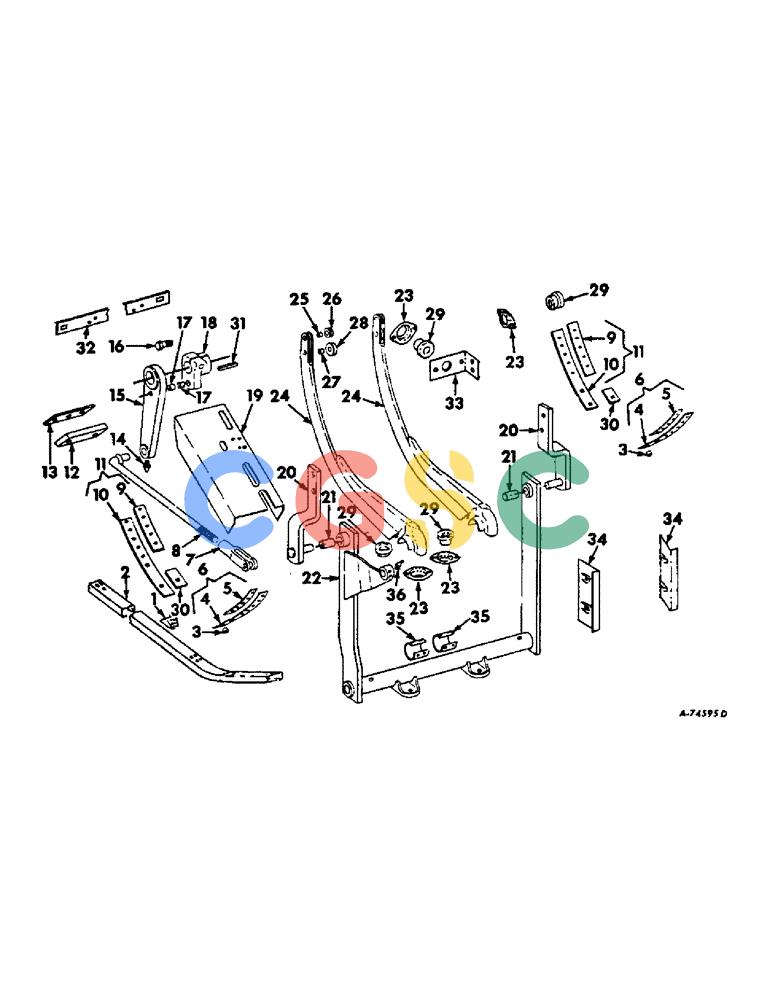

| 1. |
200539C2
|
[1] |
|
P
WEDGE, needle brake
|
| . . |
18686R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2
|
IH
BOLT, 3/8 x 2-1/4 znd sq-nk crg Superseded by part number: 280514
|
| . . |
18422R1
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, 3/8 x 1-3/4 znd sq-nk crg Superseded by part number: 411-628
|
| . . |
120377
|
[8] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[8] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
619856R1
|
[2] |
WASHER
|
IH
13/32 x 1 x 16 ga C-Z, (or as required) Superseded by part number: 87613182
|
| 2. |
674089R1
|
[1] |
GUARD
|
IH
needle
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
18794R1
|
[2] |
BOLT,Hex, 7/16" - 14 x 1", Gr 2
|
IH
7/16 x 1 znd hex-hd mach Superseded by part number: 9706729
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 znd hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| 3. |
660200R1
|
[2] |
SPACER,10.7mm ID x 17.14mm OD x 9.5mm L
|
IH
needle brake, replaces 22671R1
|
| 5. |
668025R1
|
[2] |
LINING
|
IH
needle rear brake
|
| . . |
136143
|
[10] |
PIN
|
BER
RIVET, tubular 3/16 x 7/16
|
| 6. |
668023R91
|
[2] |
BRAKE
|
IH
needle cpt. rear Superseded by part number: 668023R92
|
| 7. |
665438R1
|
[1] |
CLEVIS COUPLING
|
IH
CONNECTOR, needle Pitman
|
| . . |
23269R1
|
[1] |
PIN,3/4" x 1.910"
|
IH
3/4 x 2-3/64 C-Z rod end Superseded by part number: 27-12191
|
| . . |
137218
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 8. |
664767R1
|
[1] |
|
P
ROD, needle Pitman
|
| . . |
217216
|
[1] |
NUT
|
IH
1-14 znd hex. Superseded by part number: 219760
|
| . . |
21757R1
|
[1] |
WASHER
|
IH
25/32 x 1-1/4 x 22 ga. C-Z Superseded by part number: 87613196
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 9. |
667418R1
|
[2] |
LINING
|
IH
needle front brake Superseded by part number: 3101235R11
|
| 11. |
667416R91
|
[2] |
BRAKE
|
IH
needle front cpt. Superseded by part number: 667416R92
|
| 12. |
664818R1
|
[2] |
BUMPER
|
IH
needle
|
| . . |
18780R1
|
[2] |
BOLT,Hex, 3/8"-16 x 1 3/4", G2
|
IH
3/8 x 1-3/4 znd hex-hd mach Superseded by part number: 424-628
|
| . . |
18779R1
|
[2] |
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
|
IH
3/8 x 1-1/2 znd hex-hd mach Superseded by part number: 179843
|
| . . |
469668R1
|
[3] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| . . |
19019R1
|
[1] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd No. 3 plow Superseded by part number: 419-3616
|
| 13. |
665087R2
|
[2] |
PLATE ASSY.
|
IH
SUPPORT, needle bumper Superseded by part number: 3100671R1
|
| 14. |
109461
|
[1] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 15. |
664753R21
|
[1] |
|
P
CRANK, needle w/bushing
|
| 16. |
181620
|
[1] |
SCREW,Hex, 5/16" - 24 x 2", Gr 5
|
IH
BOLT, shear 5/16-24 x 2 znd hex-hd cap screw Superseded by part number: 414-532
|
| . . |
495-21031
|
[1] |
WASHER,1/4"
|
CAS
NUT, 5/16-24 znd hex. Superseded by part number: 80701, 72187262
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 17. |
662555R1
|
[2] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
needle shear bolt
|
| 18. |
663167R11
|
[1] |
HUB
|
IH
needle crank, w/bushing
|
| . . |
180191
|
[1] |
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
|
IH
SCREW, 1/2-13 x 3-1/4 znd hex-hd cap Superseded by part number: 113-427
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 19. |
200540C1
|
[1] |
SHIELD
|
IH
needle drive
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 znd sq-nk crg Superseded by part number: 86508748
|
| 20. |
664774R91
|
[2] |
ARM
|
IH
STRAP, needle pivot hammer cpt.
|
| . . |
18685R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 znd sq-nk crg Superseded by part number: 280552
|
| . . |
21753R1
|
[4] |
WASHER
|
IH
25/32 x 1-1/2 x 16 ga, (or as required) Superseded by part number: 86624157
|
| 21. |
664787R1
|
[2] |
BUSHING
|
IH
needle pivot
|
| 22. |
664781R93
|
[1] |
PIPE
|
IH
needle tie, includes 2 ref. No. 21
|
| 23. |
352133R1
|
[6] |
PLATE
|
IH
wire guide mounting
|
| . . |
436732
|
[12] |
SCREW,Slotted Pan Hd, #10-24 x 1/2"
|
IH
10-24 x 1/2 znd slt-pan-hd mach Superseded by part number: 70-1108
|
| . . |
120361
|
[12] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[12] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| . . |
21784R1
|
[12] |
WASHER
|
IH
17/64 x 1/2 x 16 ga, (or as required) Superseded by part number: 86624137
|
| 24. |
667411R11
|
[2] |
NEEDLE
|
IH
cpt., includes ref No. 25, 26, 27 and 28
|
| 25. |
667414R1
|
[2] |
BUSHING
|
IH
needle tip
|
| 26. |
667413R1
|
[2] |
SPACER
|
IH
PIECE, needle tip wearing
|
| 27. |
667415R1
|
[2] |
BUSHING
|
IH
needle sheave
|
| . . |
102688
|
[2] |
RIVET,Csk, 3/16" x 13/16"
|
IH
csk. hd. 3/16 x 13/16
|
| . . |
102689
|
[2] |
|
IH
csk. hd. 1/4 x 13/16 Superseded by part number: 46-413, 46-413, NLS
|
| . . |
271562
|
[4] |
SHIELD,Hex, 5/8" - 11 x 2", Gr 5
|
NNA
SCREW, 5/8-11 x 2 hex-hd cap Superseded by part number: 413-1032, 413-1032, NLS
|
| . . |
492-11062
|
[4] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
589068R1
|
[4] |
WASHER
|
IH
21/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 495-51066
|
| 28. |
667412R1
|
[2] |
ROLL
|
IH
SHEAVE, wire needle
|
| 29. |
670617R2
|
[6] |
GUIDE
|
IH
wire Superseded by part number: 3102165R2
|
| 30. |
668811R1
|
[2] |
|
P
SHIM, needle brake, (or as required)
|
| 31. |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
parallel, 3/8 x 1-7/8
|
| 32. |
674704R1
|
[1] |
SUPPORT
|
IH
wire guide
|
| 33. |
674703R
|
[2] |
BRACKET, wire guide
|
|
| 34. |
674099R1
|
[2] |
WEDGE
|
IH
hay
|
| . . |
15016R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2 Superseded by part number: 86508777
|
| . . |
664646R1
|
[4] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 hex. lock Superseded by part number: 280980
|
| 35. |
668027R1
|
[2] |
STRIP
|
IH
wear
|
| . . |
88542
|
[4] |
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
|
NH
SCREW, 1/4-20 x 1/2 znd hex-hd cap
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 36. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 45 deg angle self tap. lub
|
