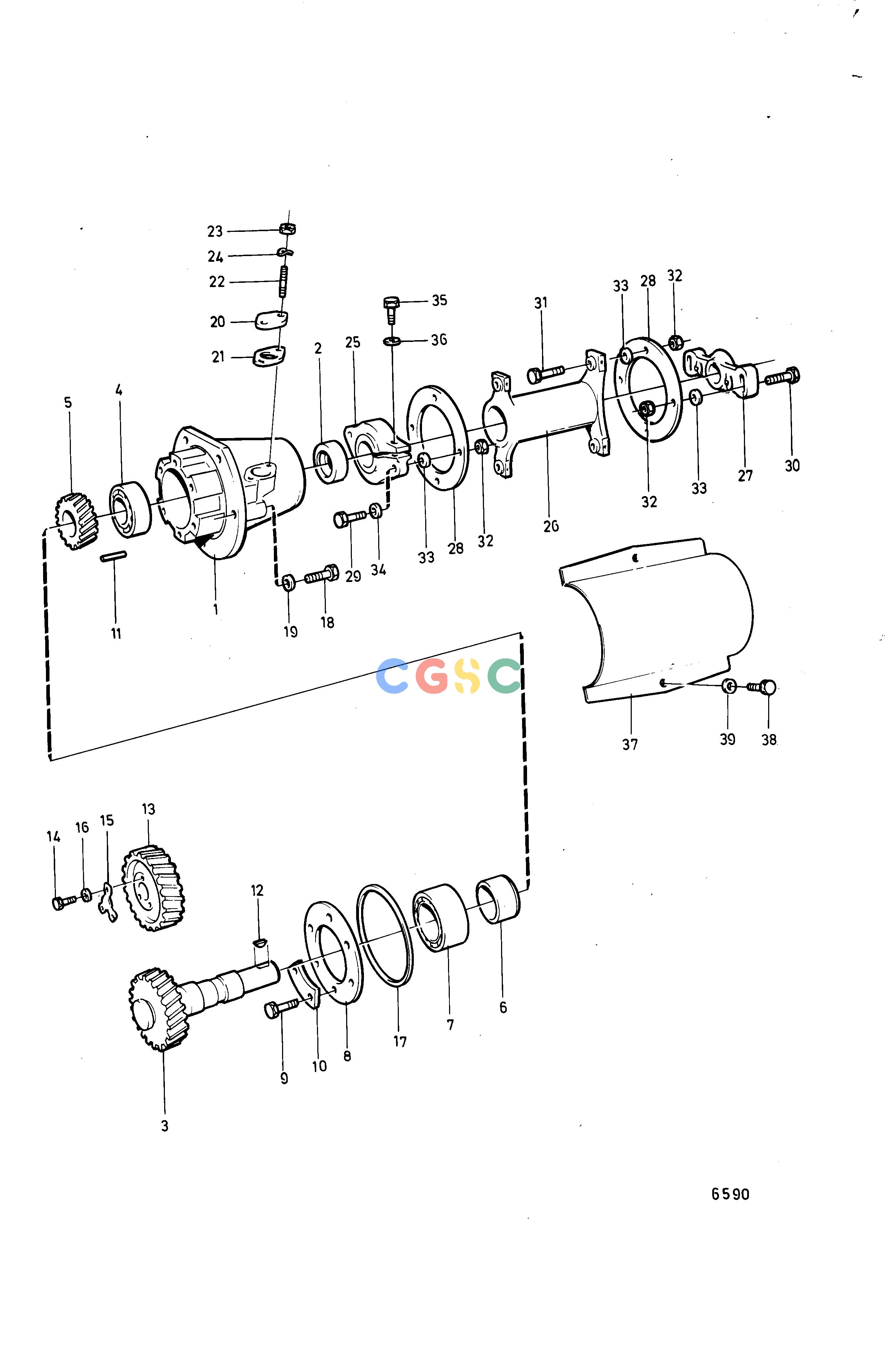

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemDrive Device, Fuel Injection PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
859 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
421074
|
[1] |
Bearing housing
|
|
| 2. |
941580
|
[1] |
Sealing ring
|
|
| 3. |
422073
|
[1] |
Shaft
|
|
| 4. |
11013
|
[1] |
Ball bearing
|
|
| 5. |
469364
|
[1] |
Gear
|
|
| 6. |
469363
|
[1] |
Stop ring
|
|
| 7. |
181577
|
[1] |
Ball bearing
|
|
| 8. |
423074
|
[1] |
Washer
|
|
| 9. |
940100
|
[6] |
Hexagon screw
|
|
| 10. |
421415
|
[3] |
Lock washer
|
|
| 11. |
950586
|
[1] |
Pin
|
|
| 12. |
422329
|
[1] |
Woodruff key
|
|
| 13. |
423079
|
[1] |
Gear
|
See group 2A
|
| 14. |
102056
|
[3] |
Hexagon screw
|
|
| 15. |
467052
|
[1] |
Lock washer
|
|
| 16. |
467055
|
[3] |
Washer
|
|
| 17. |
423123
|
[1] |
Sealing ring
|
|
| 18. |
955525
|
[4] |
Hexagon screw
|
L=25mm
|
| 18. |
955527
|
[1] |
Hexagon screw
|
L=57mm
|
| 19. |
941907
|
[5] |
Spring washer
|
|
| 20. |
422643
|
[1] |
Cover
|
|
| 21. |
422130
|
[1] |
Gasket
|
|
| 22. |
953224
|
[2] |
Stud
|
|
| 23. |
955825
|
[2] |
Hexagon nut
|
|
| 24. |
941906
|
[2] |
Spring washer
|
|
| 25. |
422184
|
[1] |
Companion flange
|
|
| 26. |
423134
|
[1] |
Intermediate section
|
|
| 27. |
468844
|
[1] |
Companion flange
|
|
| 28. |
417512
|
[6] |
Dog clutch disc
|
|
| 29. |
468853
|
[2] |
Screw
|
|
| 30. |
468847
|
[2] |
Screw
|
|
| 31. |
468853
|
[4] |
Screw
|
|
| 32. |
468845
|
[8] |
Nut
|
|
| 33. |
468846
|
[8] |
Washer
|
|
| 34. |
942336
|
[2] |
Spring washer
|
|
| 35. |
468848
|
[1] |
Screw
|
|
| 36. |
955896
|
[1] |
Washer
|
|
| 37. |
823010
|
[1] |
Protecting plate
|
|
| 38. |
940113
|
[2] |
Hexagon screw
|
|
| 39. |
941907
|
[2] |
Spring washer
|
|
