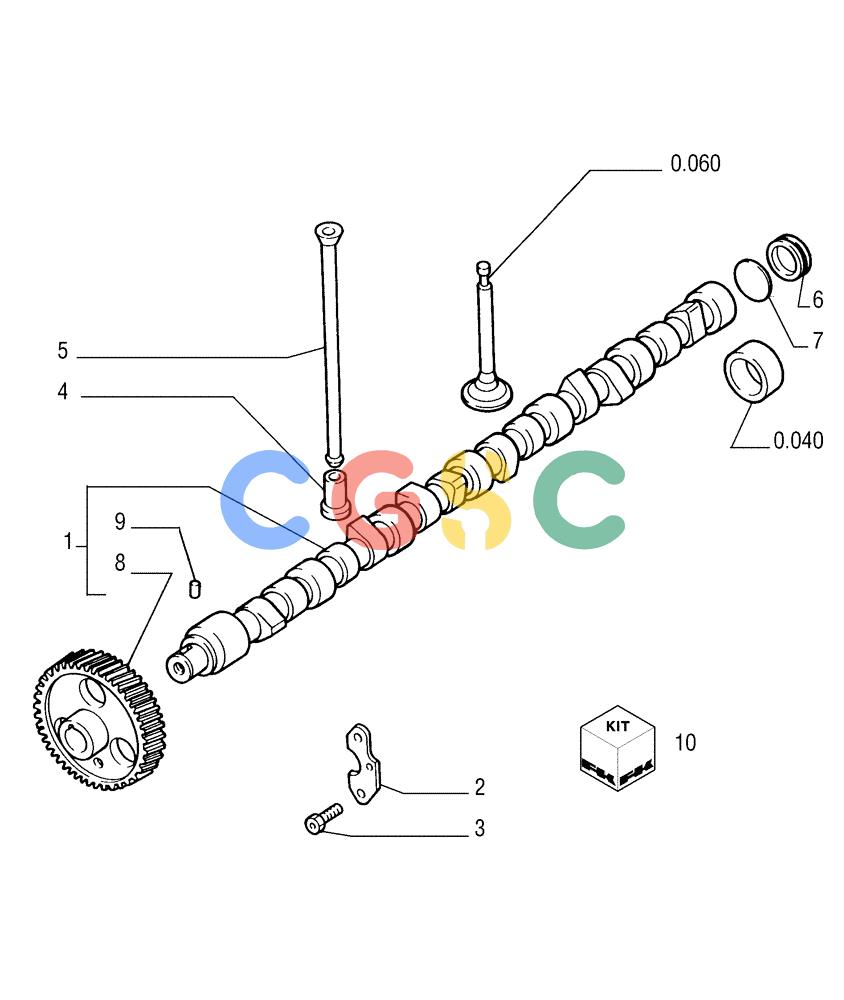

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.120[01]) - CAMSHAFT - TIMING CONTROL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
995 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61318763 | [1] | CAMSHAFT | ZED- ASSY, Start Serial: D3747 |
| 1. | 61317263 | [1] | CAMSHAFT | LEC- ASSY, Serial Range: -C3747 |
| 2. | 61315668 | [1] | FLANGE | LEC |
| 3. | 61315669 | [2] | SCREW | LEC10X1,25X30 |
| 4. | 61320986 | [12] | TAPPET | LEC+1,0 |
| 4. | 61320985 | [12] | TAPPET | LEC+0,5 |
| 4. | 61320983 | [12] | TAPPET | LEC |
| 5. | 61320984 | [12] | ROD | LEC |
| 6. | 61319161 | [1] | COVER | LEC |
| 7. | 14460581 | [1] | O-RING,67.94mm ID x 2.62" Width | BAS Superseded by part number: 17285081 |
| 8. | 61316208 | [1] | DRIVEN GEAR | LEC |
| 9. | 10839610 | [1] | DOWEL,M8 x 12mm | TOR8X12 |
| 10. | 1940142 | [1] | ENGINE GASKET KIT | LEC |
