沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemFuel Feed Pump: 243083EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
450 次

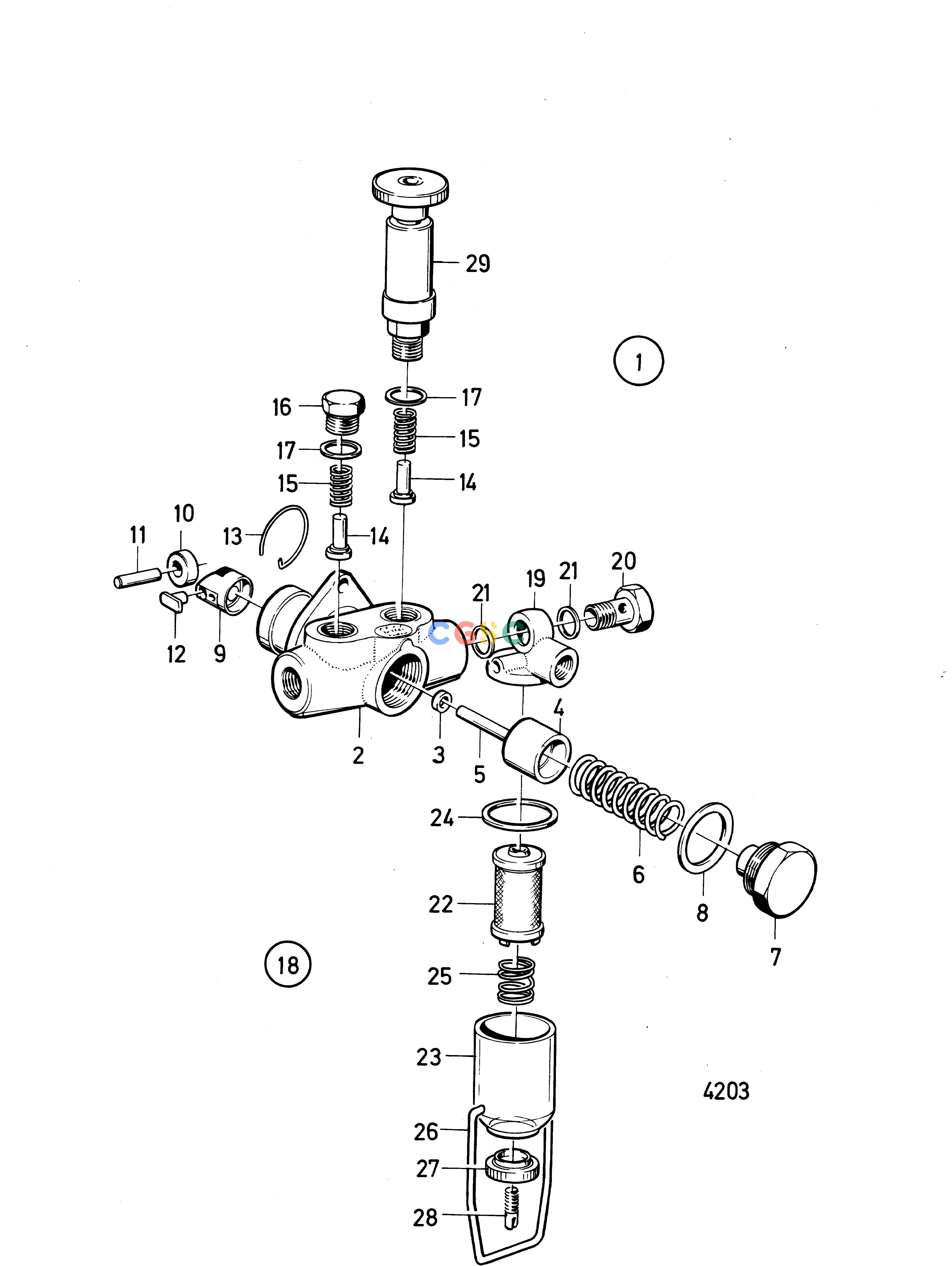

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
243083
|
[1] |
Feed pump
|
|
| 2. |
|
|
|
|
| 3. |
240270
|
[1] |
O-ring
|
|
| 4. |
240548
|
[1] |
Pump piston
|
D=21,989-21,994mm
|
| 5. |
243374
|
[1] |
Push rod
|
(6644427)
|
| 6. |
76699
|
[1] |
Spring
|
|
| 7. |
6644428
|
[1] |
Plug
|
|
| 8. |
18844
|
[1] |
Gasket
|
|
| 9. |
240074
|
[1] |
Cam follower
|
|
| 10. |
240075
|
[1] |
Roller
|
|
| 11. |
240076
|
[1] |
Lifting arm shaft
|
|
| 12. |
240077
|
[2] |
Cube
|
|
| 13. |
238368
|
[1] |
Spring ring
|
|
| 14. |
243136
|
[2] |
Valve
|
|
| 15. |
76706
|
[2] |
Compression spring
|
|
| 16. |
25278
|
[1] |
Plug
|
|
| 17. |
240572
|
[2] |
Gasket
|
|
| 29. |
76703
|
[1] |
Hand pump
|
Alt 843435
|
| 29. |
843435
|
[1] |
Hand pump
|
Class alt 76703
|
