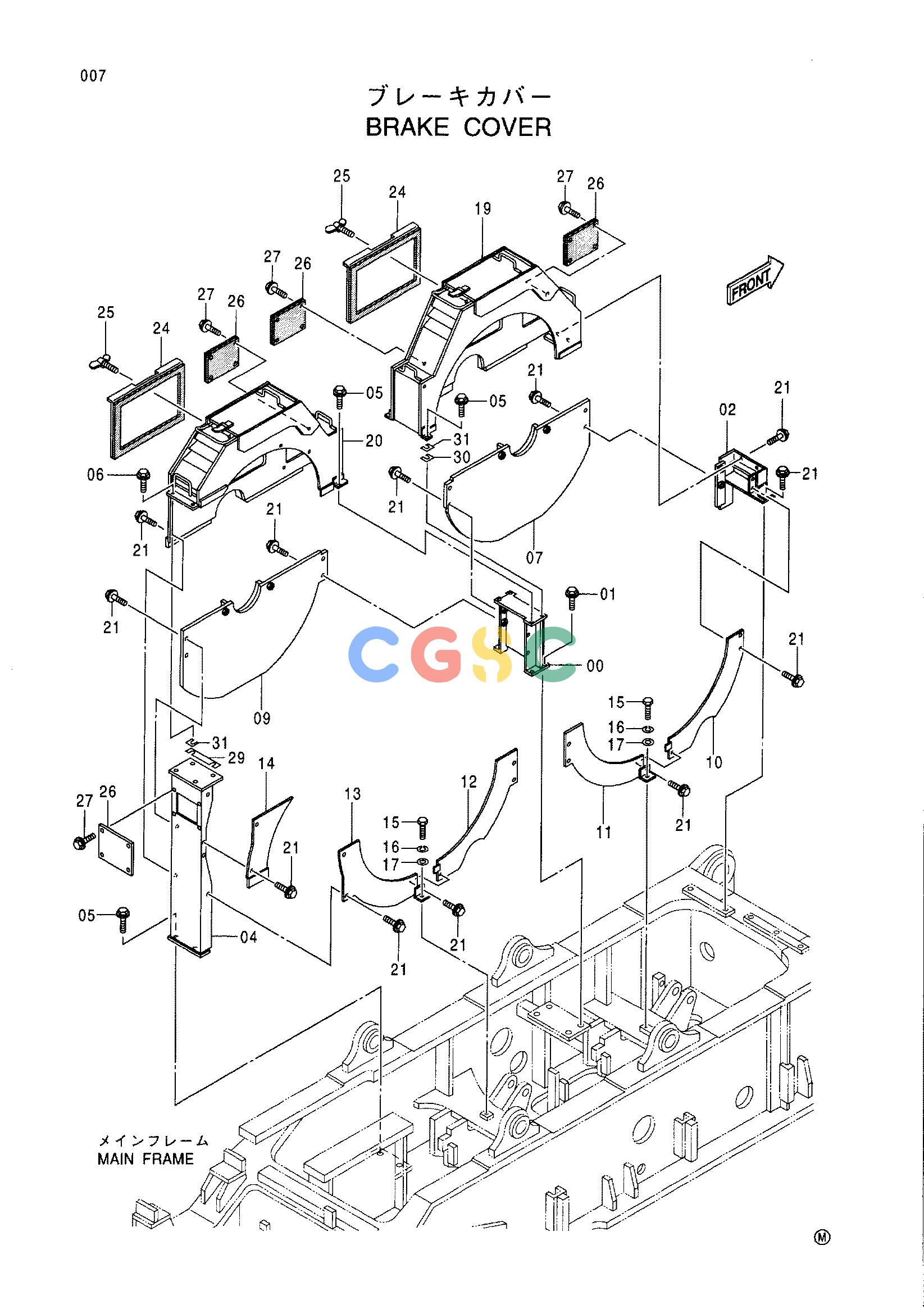

日立零件查询（CX1000）BRAKE COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7033334 | [1] | COVER | |
| 01. | J011220 | [4] | BOLT;SEMS | |
| 02. | 8069409 | [1] | COVER | |
| 04. | 7040453 | [1] | COVER | |
| 05. | J031235 | [6] | BOLT;SEMS | |
| 06. | J031240 | [2] | BOLT;SEMS | |
| 07. | 8069970 | [1] | COVER | |
| 09. | 8069972 | [1] | COVER | |
| 10. | 8048957 | [1] | COVER | |
| 11. | 8048958 | [1] | COVER | |
| 12. | 8048959 | [1] | COVER | |
| 13. | 8048960 | [1] | COVER | |
| 14. | 9735713 | [1] | COVER | |
| 15. | J901020 | [2] | BOLT | |
| 16. | A590910 | [2] | WASHER;SPRING | |
| 17. | J217083 | [2] | WASHER | |
| 19. | 5005546 | [1] | COVER;BRAKE | |
| 20. | 5005550 | [1] | COVER;BRAKE | |
| 21. | J031230 | [30] | BOLT;SEMS | |
| 24. | 9748515 | [2] | COVER | |
| 25. | M360816 | [10] | BOLT;WING | |
| 26. | 9748514 | [4] | COVER | |
| 27. | J020614 | [16] | BOLT;SEMS | |
| 29. | 4392496 | [1] | SHIM 1.6 | |
| 30. | 4392501 | [8] | SHIM 1.6 | |
| 31. | 4392502 | [10] | SHIM 0.5 | |
