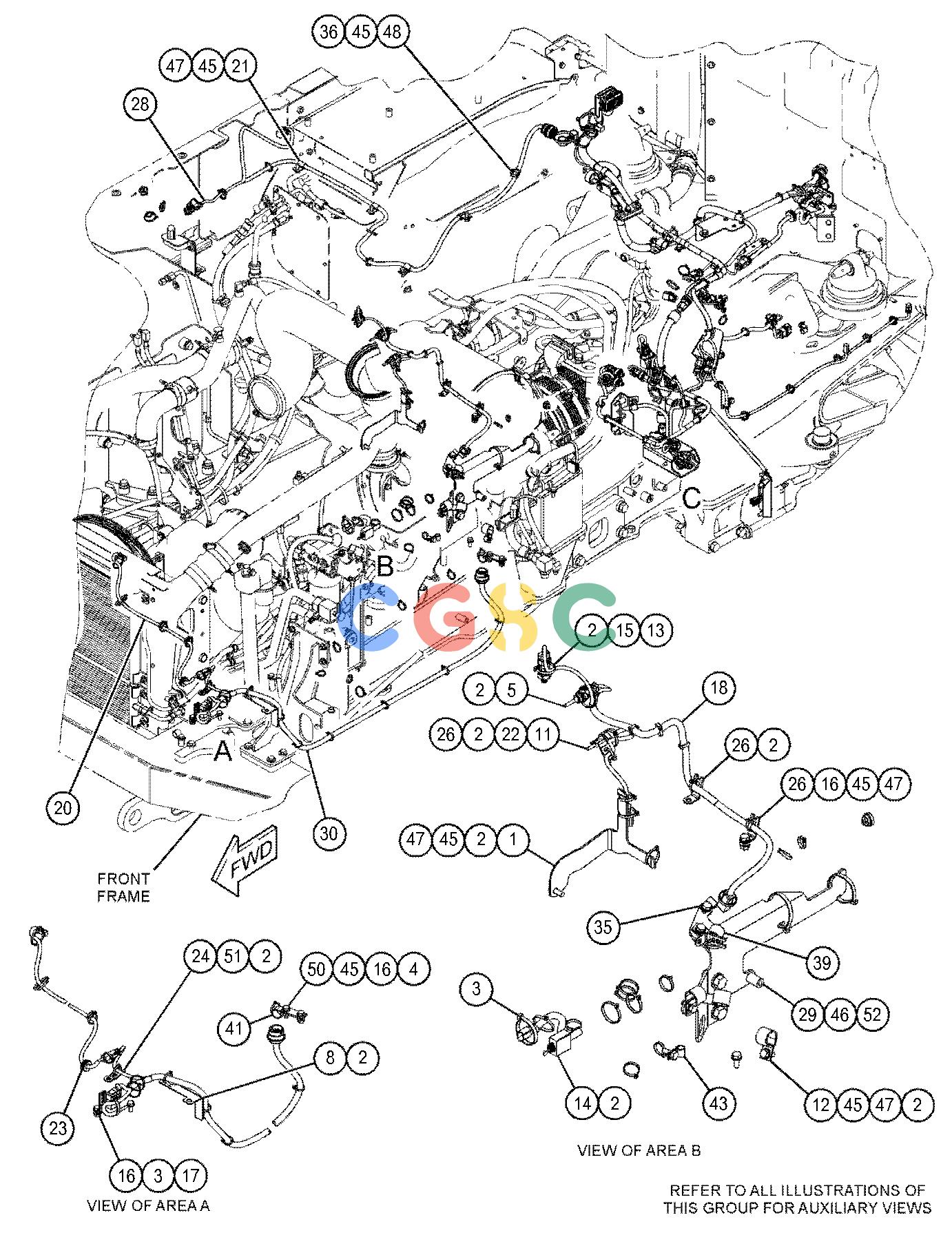

卡特零件查询（730） 502-2008: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 563-7262 | [1] | PLATE | |
| 2. | 3S-2093 | [103] | STRAP-CABLE | |
| 3. | 7K-1181 | [10] | STRAP-CABLE | |
| 4. | 7U-9542 | [1] | PLATE-CLAMPING | |
| 5. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(TRANSMISSION OIL) | |
| 6. | 393-0321 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 421-5545 | [1] | PLATE | |
| 8. | 433-2632 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| 9. | 446-0177 | [1] | PLATE | |
| 10. | 460-9488Y | [1] | WIRING GP-SENSOR(RADIATOR) | |
| 11. | 102-2240Y | [1] | SENSOR GP-TEMPERATURE(3-PIN)(AIR INLET) | |
| 12. | 149-7738 | [6] | CLIP(LOOP) | |
| 13. | 228-7100 | [1] | SEAL-O-RING | |
| 14. | 260-5864Y | [1] | SWITCH GP-TOGGLE(FUEL PRIMING) | |
| 15. | 320-3063 | [1] | SENSOR GP-PRESSURE(AIR RESTRICTION) | |
| 16. | 344-5675M | [4] | NUT(M10X1.5-THD) | |
| 17. | 352-3968 | [1] | CLIP(LADDER) | |
| 18. | 392-3489Y | [1] | HARNESS AS-SENSOR(AIR CLEANER) | |
| 19. | 393-1829 | [2] | TIE-CABLE | |
| 20. | 395-1122 | [1] | HARNESS AS-FRONT(ATAAC) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 21. | 3E-6909 | [2] | CLIP(LOOP) | |
| 22. | 3K-0360 | [1] | SEAL-O-RING | |
| 23. | 4H-2558 | [1] | GROMMET | |
| 24. | 4P-7428 | [1] | CLIP(LADDER) | |
| 25. | 4P-7581 | [2] | CLIP(LADDER) | |
| 26. | 4P-8134 | [6] | CLIP(LADDER) | |
| 27. | 502-2011Y | [1] | HARNESS AS-CHASSIS(FRONT, RH) | |
| 28. | 502-2012Y | [1] | HARNESS AS-CONTROL(FENDER, RH) | |
| 29. | 503-8133 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2613M | [1] | BOSS-WELD(M10X1.5X25-MM) | |
| | 178-7023M | [2] | BOSS(M10X1.5X30-MM) | |
| 30. | 505-0915Y | [1] | HARNESS AS-CONTROL(TANK) | |
| 31. | 508-5583 | [1] | PLATE AS | |
| 32. | 515-2117Y | [1] | WIRING GP-VALVE | |
| 33. | 525-2953Y | [1] | WIRING GP-FRONT(AXLE)(RH) | |
| 34. | 541-4920 | [1] | PLATE AS | |
| 35. | 5P-9085 | [1] | CLIP(LOOP) | |
| 36. | 6D-3479 | [3] | CLIP(LOOP) | |
| 37. | 6D-4244 | [3] | CLIP(LOOP) | |
| 38. | 6D-4246 | [2] | CLIP(LOOP) | |
| 39. | 6D-4636 | [1] | CLIP(LOOP) | |
| 40. | 6H-4005 | [1] | GROMMET | |
| 41. | 7C-4354 | [3] | CLIP | |
| 42. | 7D-7233 | [1] | CLIP(LOOP) | |
| 43. | 8M-2770 | [3] | CLIP(LOOP) | |
| 44. | 8M-2773 | [1] | CLIP(LOOP) | |
| 45. | 8T-4121 | [41] | WASHER-HARD(11X21X2.5-MM THK) | |
| 46. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 47. | 8T-4136M | [27] | BOLT(M10X1.5X25-MM) | |
| 48. | 8T-4137M | [6] | BOLT(M10X1.5X20-MM) | |
| 49. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 50. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 51. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 52. | 8T-9393 | [2] | BOLT(5/8-11X1.5-IN) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
