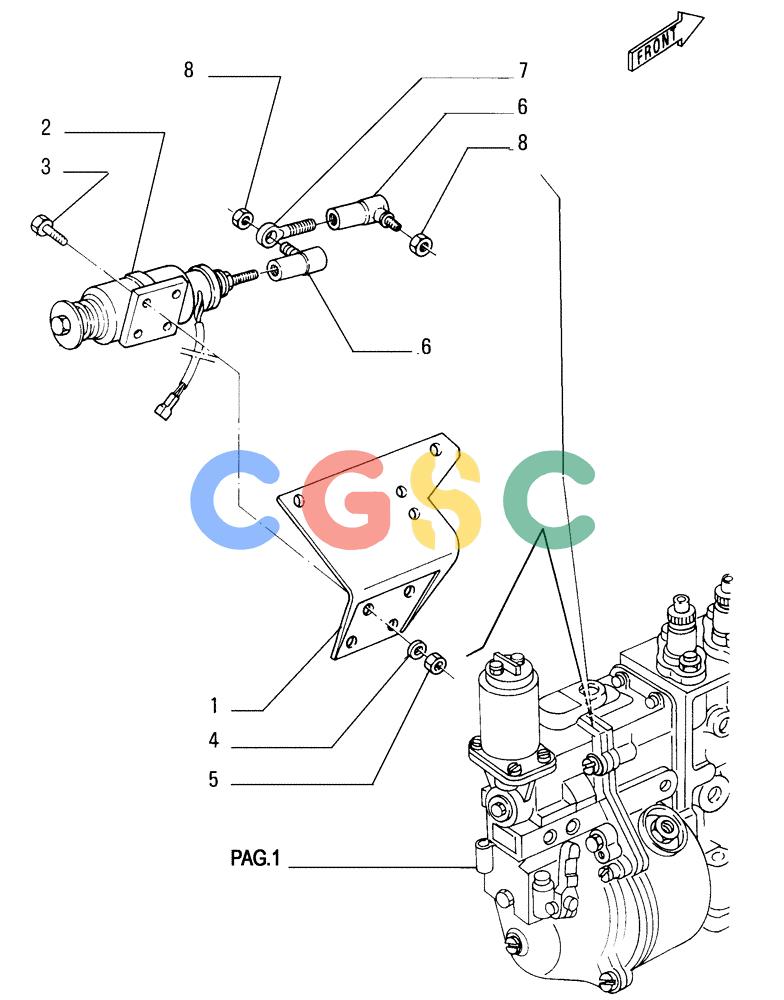

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.140[04]) - SOLENOID - INJECTION EQUIPMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61319491 | [1] | SUPPORT | LEC, Serial Range: -C3747 |
| 2. | 99463482 | [1] | ELECTROMAGNET | LEC, Serial Range: -C3747 |
| 3. | 10902124 | [4] | SCREW,Hex, M6 x 14mm, Cl 8.8 | TTF, Serial Range: -C3747 |
| 4. | 11197774 | [4] | BELLEVILLE WASHER,Belleville, M6.4 | TTF, Serial Range: -C3747 |
| 5. | 15896221 | [4] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED, Serial Range: -C3747 Superseded by part number: 86500688 |
| 6. | 15152590 | [2] | BALL JOINT | MKTM6X10, Serial Range: -C3747 |
| 7. | 17911311 | [1] | THREADED TIE-ROD | LECM6, Serial Range: -C3747 |
| 8. | 16979331 | [2] | NUT | LECM6, Serial Range: -C3747 Superseded by part number: |
