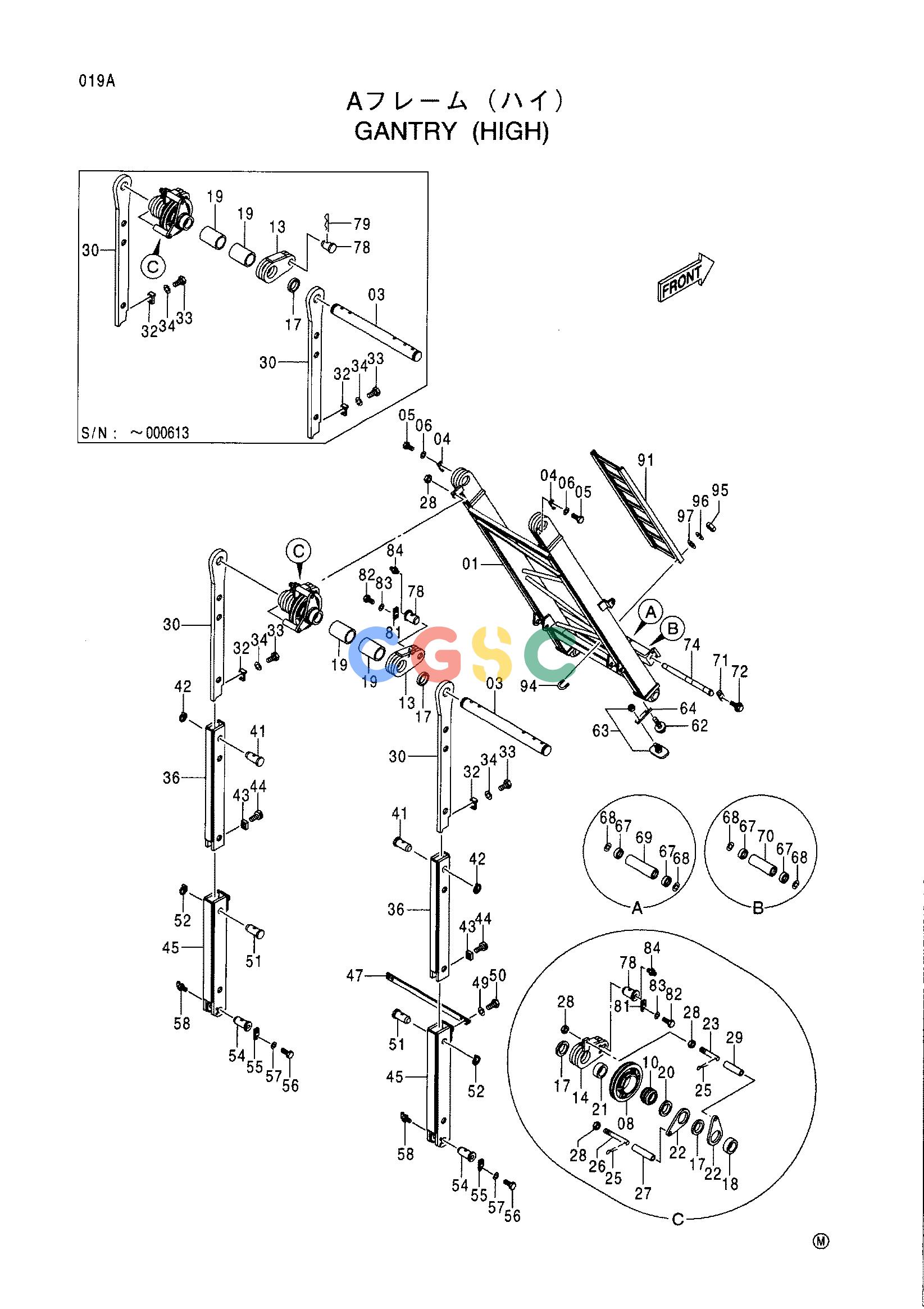

日立零件查询（CX1000）GANTRY (HIGH) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
862 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 6016530 | [1] | LEG;FRONT | |
| 03. | 3084936 | [1] | AXLE | |
| 04. | X4250 | [2] | PLATE;LOCK | |
| 05. | J932040 | [4] | BOLT | |
| 06. | A590920 | [4] | WASHER;SPRING | |
| 08. | 3080911 | [1] | SHEAVE | |
| 10. | 4226360 | [1] | BRG.;ROL. | |
| 13. | 8042799 | [1] | LINK | T8091184 |
| 13. | 8042799 | [1] | LINK | 4488741 |
| 13. | 8042799 | [1] | LINK | X4247 |
| 13. | 8042799 | [1] | LINK | J901630 |
| 13. | 8042799 | [1] | LINK | A590916 |
| 13. | 8042799 | [1] | LINK | J75481 |
| 13. | 8091184 | [1] | LINK:R | |
| 14. | 8042800 | [1] | LINK | T8091182 |
| 14. | 8042800 | [1] | LINK | 4488741 |
| 14. | 8042800 | [1] | LINK | X4247 |
| 14. | 8042800 | [1] | LINK | J901630 |
| 14. | 8042800 | [1] | LINK | A590916 |
| 14. | 8042800 | [1] | LINK | J75481 |
| 14. | 8091182 | [1] | LINK:L | |
| 17. | 4227841 | [3] | SPACER | |
| 18. | 4227842 | [1] | SPACER | |
| 19. | 4227843 | [2] | SPACER | |
| 20. | 4414797 | [1] | SPACER | |
| 21. | 4414798 | [1] | SPACER | |
| 22. | 4369537 | [2] | LINK | |
| 23. | 4227844 | [1] | PIN | |
| 25. | A765050 | [2] | PIN;SPLIT | |
| 26. | 4176665 | [1] | PIN | |
| 27. | 4206837 | [1] | SPACER | |
| 28. | J951024 | [4] | NUT | |
| 29. | 4278302 | [1] | SPACER | |
| 30. | 2040489 | [2] | LEG;REAR | |
| 32. | 4379783 | [2] | STOPPER | |
| 33. | J901640 | [4] | BOLT | |
| 34. | A590916 | [4] | WASHER;SPRING | |
| 36. | 7032627 | [2] | LEG;REAR | |
| 41. | 4362288 | [2] | PIN | |
| 42. | 4135031 | [2] | PIN;RING | |
| 43. | 4379776 | [2] | STOPPER | |
| 44. | M341640 | [4] | BOLT;SOCKET | |
| 45. | 7032630 | [2] | LEG;REAR | |
| 47. | 4227951 | [1] | STAY | |
| 49. | A590916 | [4] | WASHER;SPRING | |
| 50. | J901632 | [4] | BOLT | |
| 51. | 4362289 | [2] | PIN | |
| 52. | 4135031 | [2] | PIN;RING | |
| 54. | 4362290 | [2] | PIN | |
| 55. | X4247 | [2] | PLATE;LOCK | |
| 56. | J901635 | [4] | BOLT | |
| 57. | A590916 | [4] | WASHER;SPRING | |
| 58. | J75581 | [1] | FITTING;GREASE | |
| 62. | J010614 | [2] | BOLT;SEMS | |
| 63. | 4152892 | [1] | MIRROR | |
| 64. | 4381401 | [1] | STAY | |
| 67. | 971195 | [8] | BRG.;BALL | |
| 68. | 940144 | [8] | RING;RETAINING | |
| 69. | 4201775 | [2] | ROLLER | |
| 70. | 4228111 | [2] | ROLLER | |
| 71. | X4245 | [2] | PLATE;LOCK | |
| 72. | J011016 | [4] | BOLT;SEMS | |
| 74. | 4227953 | [2] | PIN | |
| 78. | 4373699 | [2] | PIN | |
| 78. | 4488741 | [2] | PIN | |
| 79. | A761001 | [2] | PIN;SPLIT | |
| 81. | X4247 | [2] | PLATE;LOCK | |
| 82. | J901630 | [4] | BOLT | |
| 83. | A590916 | [4] | WASHER;SPRING | |
| 84. | J75481 | [2] | FITTING;GREASE | |
| 91. | 8058095 | [1] | LADDER | |
| 94. | 4190523 | [5] | BOLT;U | |
| 95. | J950010 | [10] | NUT | |
| 96. | A590910 | [10] | WASHER;SPRING | |
| 97. | A590110 | [10] | WASHER;PLANE | |
