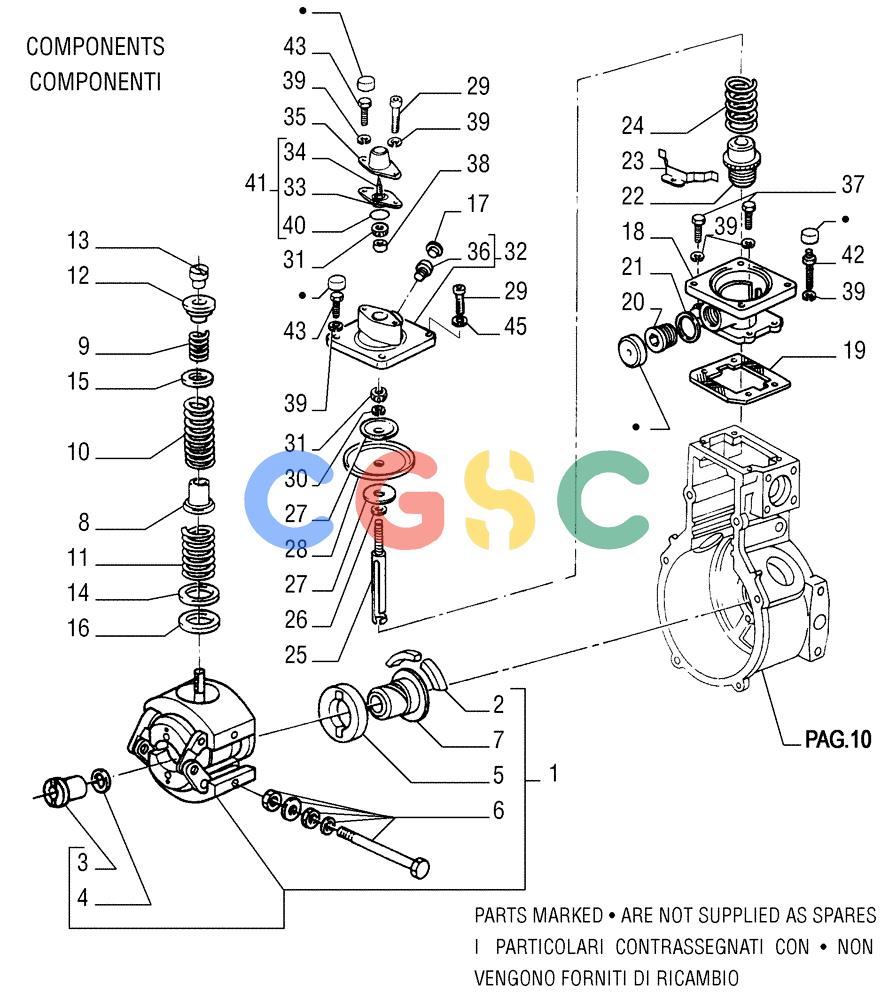

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.140[11]) - INJECTION EQUIPMENT - REGULATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
198 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9970372 | [1] | SPEED GOVERNOR | LEC- ASSY, Start Serial: D3747 Superseded by part number: 9970222 |
| 1. | 9968740 | [1] | SPEED GOVERNOR | LEC- ASSY, Serial Range: -C3747 Superseded by part number: 9978005 |
| 2. | 76026136 | [4] | DAMPER | LEC |
| 3. | 76026137 | [1] | COUPLING | LEC |
| 4. | 79062772 | [1] | WASHER | MOD1,66 |
| 4. | 772532 | [1] | WASHER | JES1,60 Superseded by part number: 79023689 |
| 4. | 79062771 | [1] | WASHER | LEC1.63 mm |
| 4. | 79023699 | [1] | WASHER | MOD2,11 Superseded by part number: 772535 |
| 4. | 79062773 | [1] | WASHER | MOD1,69 |
| 4. | 79062774 | [1] | WASHER | LEC1,72 |
| 4. | 79062775 | [1] | WASHER | MOD1,75 |
| 4. | 79062776 | [1] | WASHER | LEC1,78 |
| 4. | 79062785 | [1] | WASHER | MOD2,05 |
| 4. | 79062788 | [1] | WASHER | LEC2.14 mm |
| 4. | 79062786 | [1] | WASHER | LEC2,08 |
| 4. | 79062777 | [1] | WASHER | MOD1,81 |
| 4. | 79062784 | [1] | WASHER | LEC2,02 |
| 4. | 79062783 | [1] | WASHER | MOD1,99 |
| 4. | 79062779 | [1] | WASHER | LEC1,87 |
| 4. | 79062778 | [1] | WASHER | MOD1,84 |
| 4. | 79062782 | [1] | WASHER | MOD1,96 |
| 4. | 79062780 | [1] | WASHER | MOD1,90 |
| 4. | 79062781 | [1] | WASHER | LEC1,93 |
| 5. | 76026138 | [1] | CUP COVER | LEC |
| 6. | 9007831 | [1] | KIT | MOD |
| 7. | 71445113 | [1] | UNIVERSAL JOINT | TOR, Serial Range: -C3747 |
| 7. | 9967602 | [1] | COUPLING | ZED, Start Serial: D3747 |
| 8. | 9968724 | [2] | CAP WASHER | LEC |
| 9. | 1288834 | [2] | SPRING | LEC |
| 10. | 9967283 | [2] | SPRING | MOD |
| 11. | 9970217 | [2] | SPRING | LEC, Start Serial: D3747 |
| 11. | 9968725 | [2] | SPRING | LEC, Serial Range: -C3747 |
| 12. | 79035484 | [2] | CAP WASHER | MOD |
| 13. | 79035483 | [2] | RING NUT | MOD |
| 14. | 4935634 | [2] | WASHER | BRE0.50 mm |
| 15. | 79023624 | [2] | RIGID TUBE | LEC0,50 |
| 16. | 76026121 | [2] | WASHER | LEC0.50 mm |
| 17. | 79033453 | [1] | PLUG | MOD, Start Serial: D3747 |
| 18. | 9968818 | [1] | BODY | BRE, Start Serial: D3747 |
| 19. | 79106760 | [1] | SEAL | LEC, Start Serial: D3747 |
| 20. | 9966704 | [1] | PLUG | BRE, Start Serial: D3747 |
| 21. | 76030848 | [1] | SEAL | LEC, Start Serial: D3747 |
| 22. | 79097280 | [1] | BUSHING | TOR, Start Serial: D3747 |
| 23. | 79033457 | [1] | RETAINER COLLAR | MOD, Start Serial: D3747 Superseded by part number: 9033457 |
| 24. | 9968819 | [1] | SPRING | BRE, Start Serial: D3747 |
| 25. | 9967597 | [1] | ROD | ZED, Start Serial: D3747 |
| 26. | 71445107 | [1] | WASHER | TOR, Start Serial: D3747 |
| 27. | 71445103 | [2] | WASHER | TOR, Start Serial: D3747 |
| 28. | 71445104 | [1] | DIAPHRAGM | TOR, Start Serial: D3747 |
| 29. | 10376724 | [4] | SCREW,Sl, Pan Hd, M6 x 16mm | BAS, Start Serial: D3747 Superseded by part number: 10376721 |
| 30. | 71445106 | [1] | WASHER | TOR, Start Serial: D3747 Superseded by part number: 9963377 |
| 31. | 9966700 | [2] | NUT | BRE, Start Serial: D3747 |
| 32. | 9967598 | [1] | COVER | ZED- ASSY, Start Serial: D3747 |
| 33. | 42488393 | [1] | NUT | MOD, Start Serial: D3747 |
| 34. | 79048248 | [1] | STUD | LEC, Start Serial: D3747 |
| 35. | 9966703 | [1] | COVER | BRE, Start Serial: D3747 |
| 36. | 9966702 | [1] | THREADED BUSHING | BRE, Start Serial: D3747 |
| 37. | 10902424 | [3] | SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd | TTF, Start Serial: D3747 Superseded by part number: |
| 38. | 9968820 | [1] | NUT | BRE, Start Serial: D3747 |
| 39. | 10516474 | [10] | LOCK WASHER | LEC6, Start Serial: D3747 Superseded by part number: 10516471 |
| 40. | 79038451 | [1] | O-RING | LEC15X2, Start Serial: D3747 |
| 41. | 9967860 | [1] | FLANGE | ZED- ASSY, Start Serial: D3747 |
| 42. | 9967878 | [1] | SCREW | ZED, Start Serial: D3747 |
| 43. | 9967631 | [2] | SCREW | ZED, Start Serial: D3747 |
