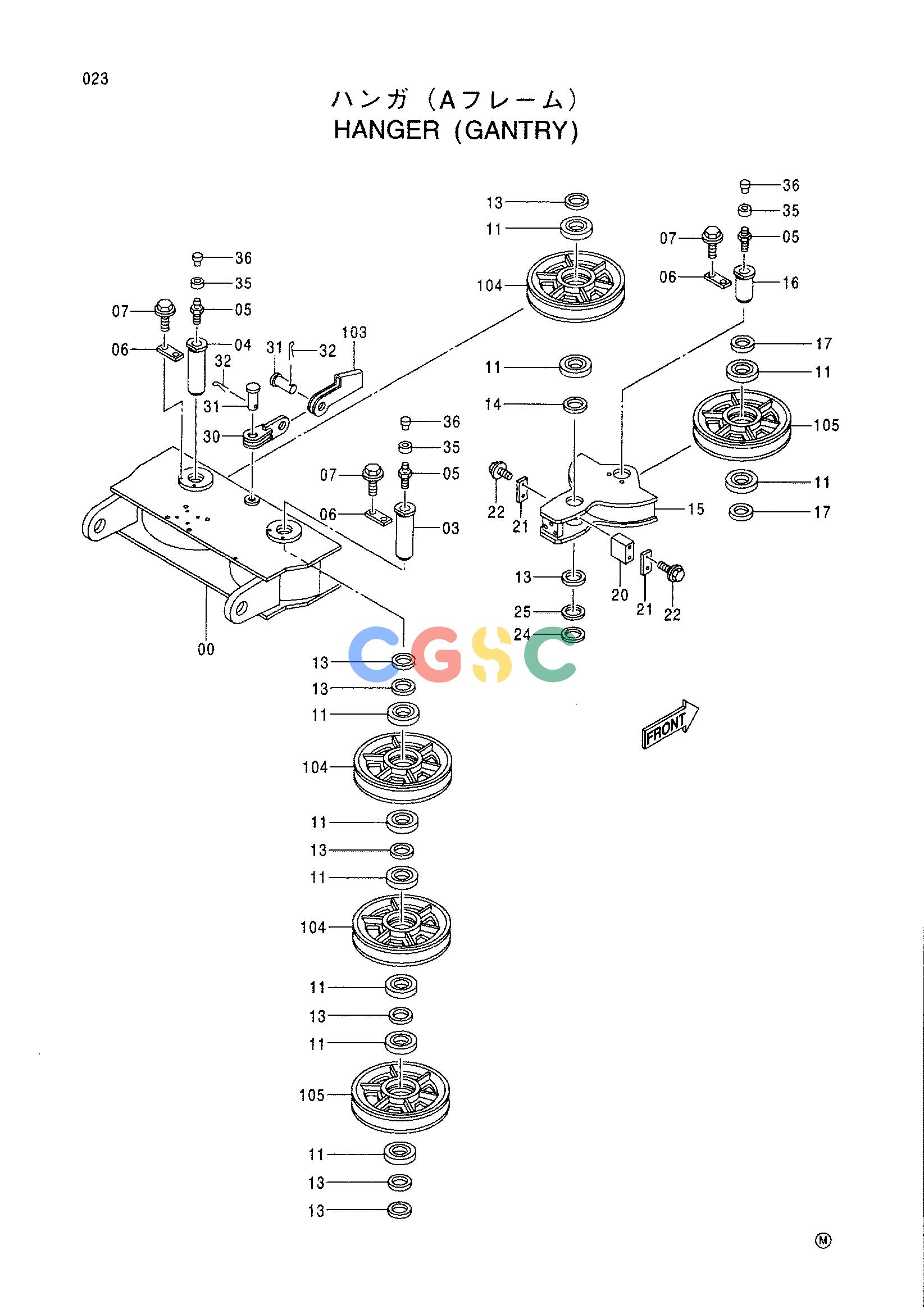

日立零件查询（CX1000）HANGER (GANTRY) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
289 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7035308 | [1] | HANGER | |
| 03. | 3085071 | [1] | PIN | |
| 04. | 3085072 | [1] | PIN | |
| 05. | J75481 | [3] | FITTING;GREASE | |
| 06. | 4135186 | [3] | PLATE | |
| 07. | J011225 | [6] | BOLT;SEMS | |
| 11. | 944922 | [10] | BRG.;BALL | |
| 13. | 442617 | [8] | SPACER | |
| 14. | 4415259 | [1] | SPACER | |
| 15. | 7020138 | [1] | HANGER | |
| 16. | 4368939 | [1] | PIN | |
| 17. | 4415260 | [2] | SPACER | |
| 20. | 3029537 | [1] | PLATE | |
| 21. | 4159399 | [2] | PLATE | |
| 22. | J011025 | [4] | BOLT;SEMS | |
| 24. | 4423145 | [2] | SHIM 1.2 | |
| 25. | 4423147 | [1] | SHIM 1.6 | |
| 30. | 9725626 | [1] | END;FORK | |
| 31. | 4368906 | [2] | PIN | |
| 32. | A768063 | [2] | PIN;SPLIT | |
| 35. | 4130686 | [3] | COLLAR | |
| 36. | 4105912 | [3] | CAP | |
| 103. | 34217 | [1] | SOCKET;ROPE | |
| 104. | 3080671 | [3] | SHEAVE | |
| 105. | 3085667 | [2] | SHEAVE | |
