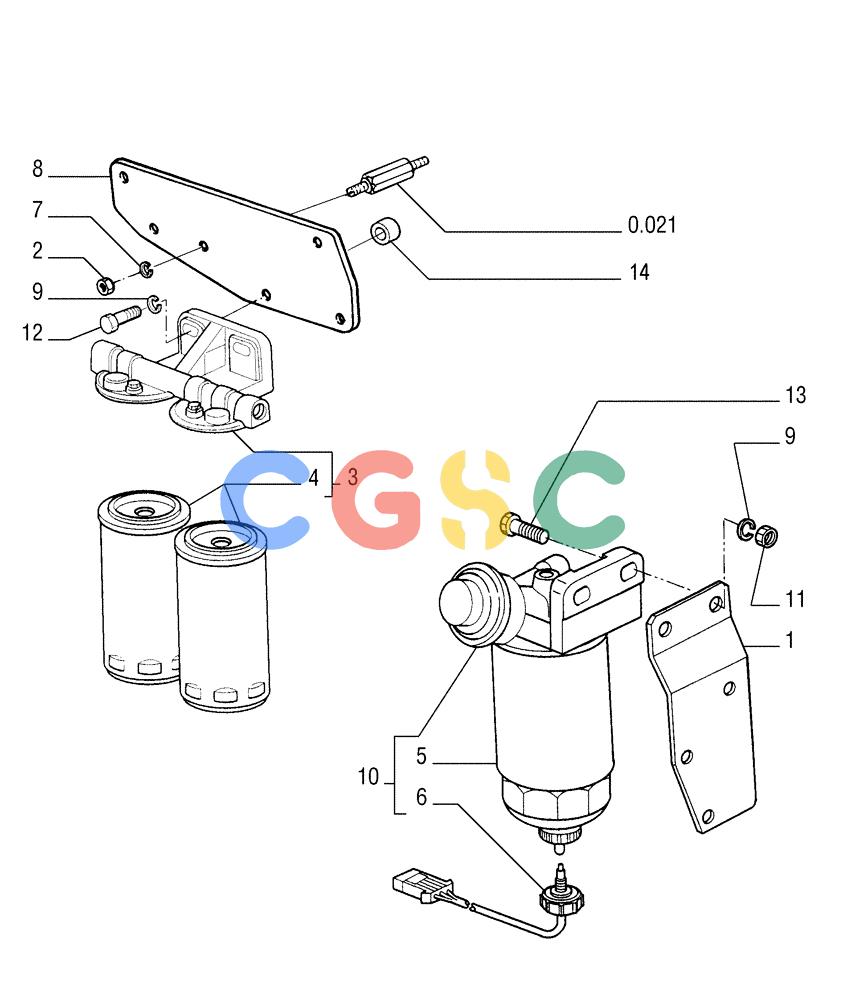

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.200[1A]) - FUEL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61321832 | [1] | SUPPORT | LEC, Start Serial: D3747 |
| 2. | 17038221 | [3] | NUT | TOR, Start Serial: D3747 Superseded by part number: 12164721 |
| 3. | 98433648 | [1] | FUEL FILTER | LEC- ASSY, Start Serial: D3747 Superseded by part number: 98447551 |
| 4. | 1930953 | [2] | FUEL FILTER | LEC, Start Serial: D3747 Superseded by part number: 84604400 |
| 5. | 1930992 | [1] | FUEL FILTER | LEC, Start Serial: D3747 Superseded by part number: 84348883 |
| 5. | 1931061 | [1] | FUEL FILTER | LEC, Start Serial: 30440 Superseded by part number: 84348883 |
| 6. | 99468264 | [1] | SENSOR | LECIN ALTERNATIVE |
| 6. | 98431956 | [1] | SENSOR | LEC- IN ALTERNATIVE, Start Serial: D3747 Superseded by part number: 99468264 |
| 7. | 11190574 | [3] | BELLEVILLE WASHER,Belleville, M10.5 | TTF, Start Serial: D3747 |
| 9. | 11198374 | [4] | BELLEVILLE WASHER,Belleville, M10.5 | TTF, Start Serial: D3747 |
| 10. | 98430076 | [1] | AIR PRE-CLEANER ASSY | LEC- ASSY, Start Serial: D3747 Superseded by part number: 98432043 |
| 10. | 99460566 | [1] | FUEL FILTER | LEC, Start Serial: 30440 |
| 11. | 15500121 | [2] | NUT | BHB, Start Serial: D3747 |
| 12. | 9602206 | [1] | SCREW,Hex, M10 x 1.25 x 50mm, Cl 8.8 | BHB |
| 12. | 15970724 | [2] | SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd | TTF, Start Serial: D3747 |
| 13. | 11106424 | [2] | SCREW,Hex, M10 x 30mm, Cl 8.8, Full Thd | IMO, Start Serial: D3747 Superseded by part number: 9515003 |
| 14. | 4808523 | [3] | SPACER | NH Superseded by part number: 4808519 |
