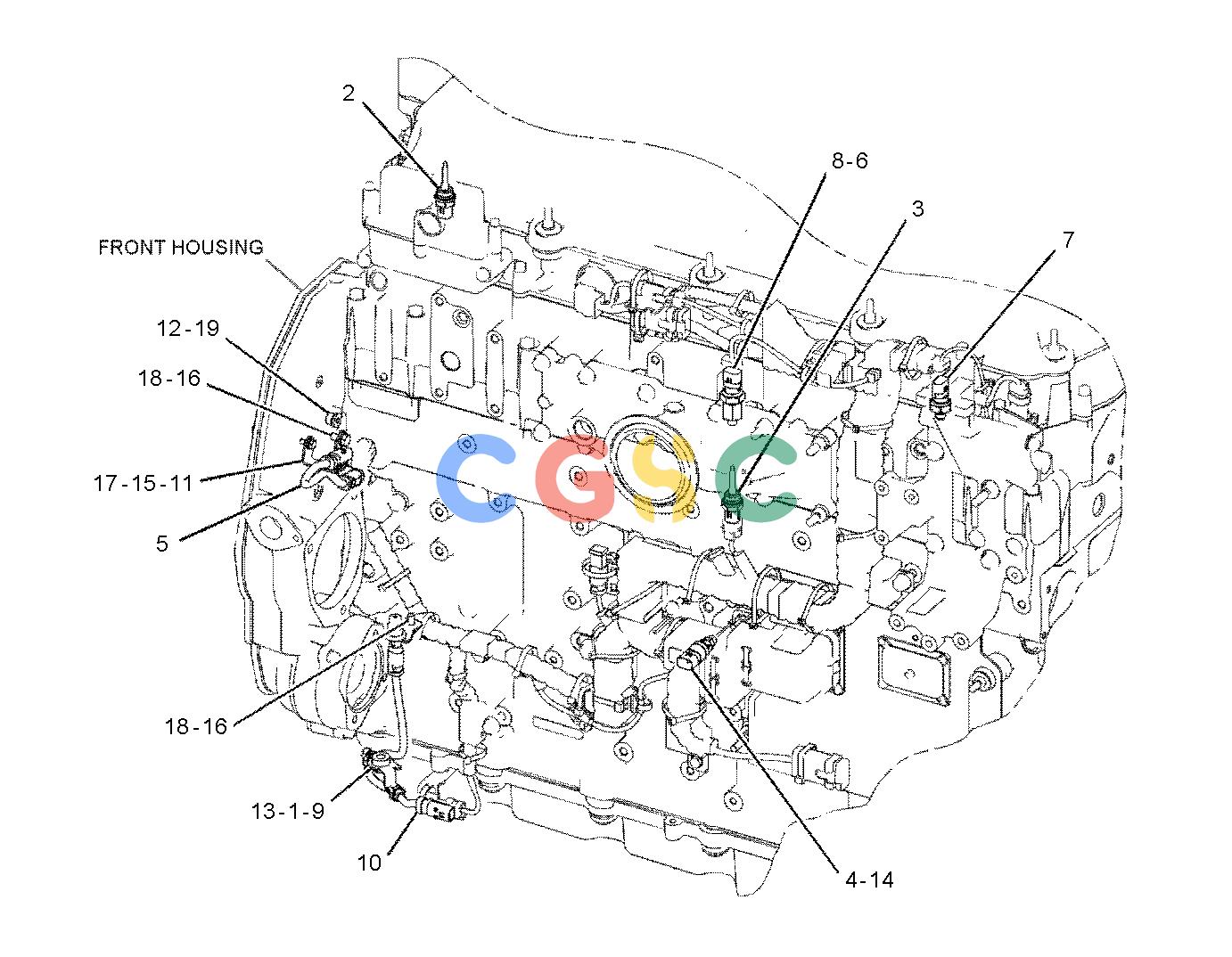

卡特零件查询（730） 379-6636: SENSOR GP-ENGINE
广数供应链运营团队, 15 02月, 2025，浏览：
532 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [2] | STRAP-CABLE | |
| 2. | 234-5012Y | [1] | SENSOR GP-TEMPERATURE(COOLANT) | |
| 3. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(INTAKE AIR MANIFOLD) | |
| 4. | 274-6719 | [1] | SENSOR GP-PRESSURE(OIL PRESSURE) | |
| 5. | 300-9806Y | [1] | SENSOR GP-SPEED(CAMSHAFT) | |
| 6. | 330-9740 | [1] | ADAPTER AS | |
| | 214-7566 | [1] | SEAL-O-RING | |
| | 330-9739 | [1] | ADAPTER | |
| 7. | 331-1134Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 8. | 332-0296Y | [1] | SENSOR GP-PRESSURE | |
| 9. | 378-1459 | [1] | BRACKET | |
| 10. | 384-1836Y | [1] | SENSOR GP-SPEED(CRANKSHAFT) | |
| 11. | 156-6175 | [1] | CLIP(LADDER) | |
| 12. | 214-7568 | [1] | SEAL-O-RING | |
| 13. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 14. | 353-5112 | [1] | ADAPTER AS | |
| | 9X-0262 | [1] | ADAPTER | |
| | 214-7566 | [2] | SEAL-O-RING | |
| 15. | 5P-0537 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 16. | 6V-5215M | [2] | BOLT(M8X1.25X16-MM) | |
| 17. | 6V-8836M | [1] | BOLT(M6X1X14-MM) | |
| 18. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
