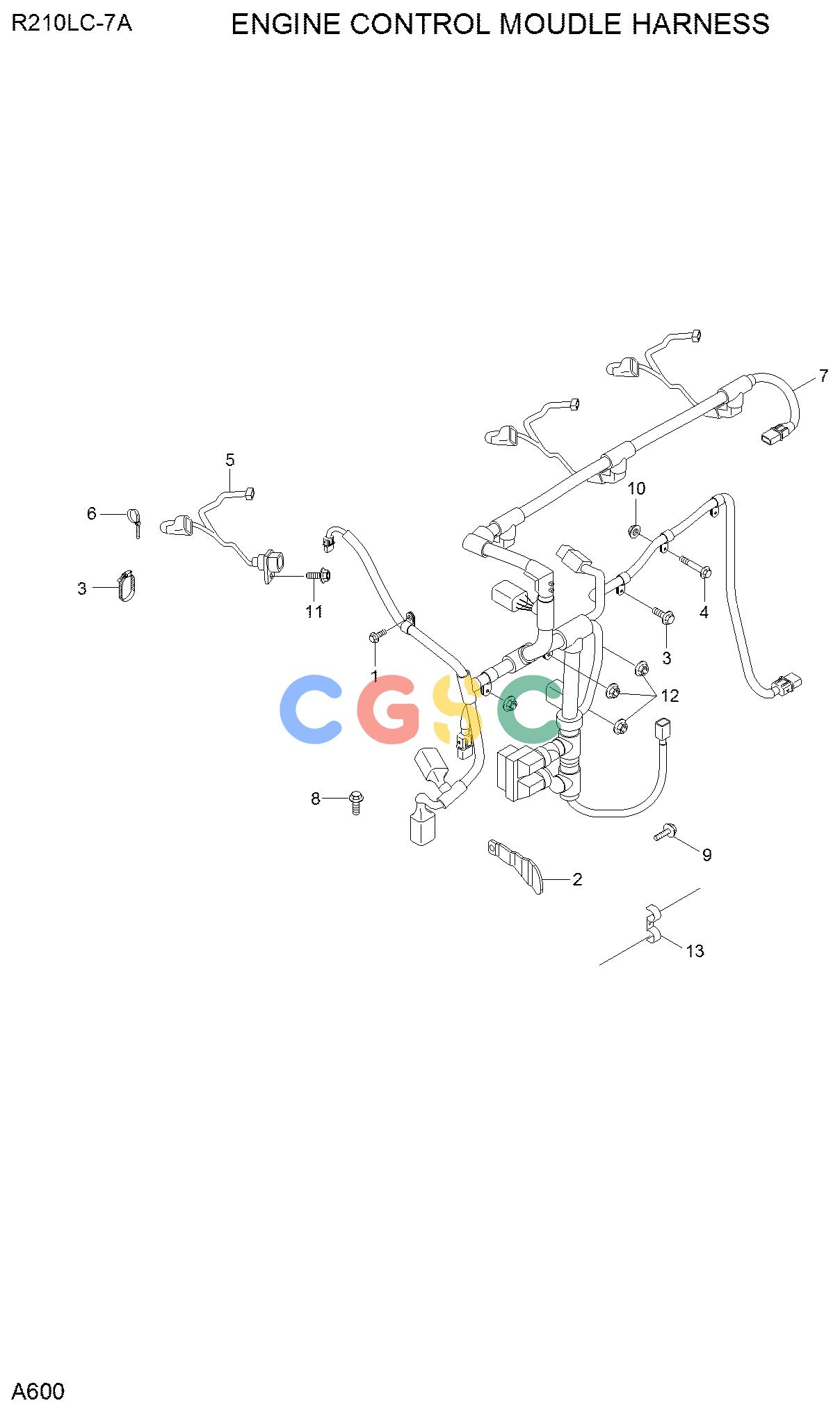

现代零件查询R210LC-7A ENGINE CONTROL MODULE HARNESSEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XKDE-00321
|
[2] |
NUT-HEX FLANGE
|
|
| 2. |
XKDE-00885
|
[2] |
BRACE-WIRING
|
|
| 3. |
XKDE-00930
|
[3] |
CLIP-WIRE RETAINING
|
|
| 4. |
XKDE-00469
|
[1] |
SCREW-HEX F/HEAD CAP
|
|
| 5. |
XKDE-01130
|
[3] |
HARNESS-WIRING
|
|
| 6. |
XKDE-00429
|
[6] |
CLIP-WIRE RETAINING
|
|
| 7. |
XKDE-01129
|
[1] |
HARNESS-ECM WIRING
|
|
| 8. |
XKDE-00448
|
[1] |
SCREW-HEX HD CAP
|
|
| 9. |
XKDE-01385
|
[2] |
SCREW-HEX F/HEAD CAP
|
|
| 10. |
XKDE-01460
|
[2] |
SPACER-MOUNTING
|
|
| 11. |
XKDE-00062
|
[3] |
SCREW-HEX HD CAP
|
|
| 12. |
XKDE-00299
|
[3] |
NUT-HEX FLANGE
|
|
| 13. |
XKDE-00919
|
[1] |
CLAMP-TUBE
|
|
