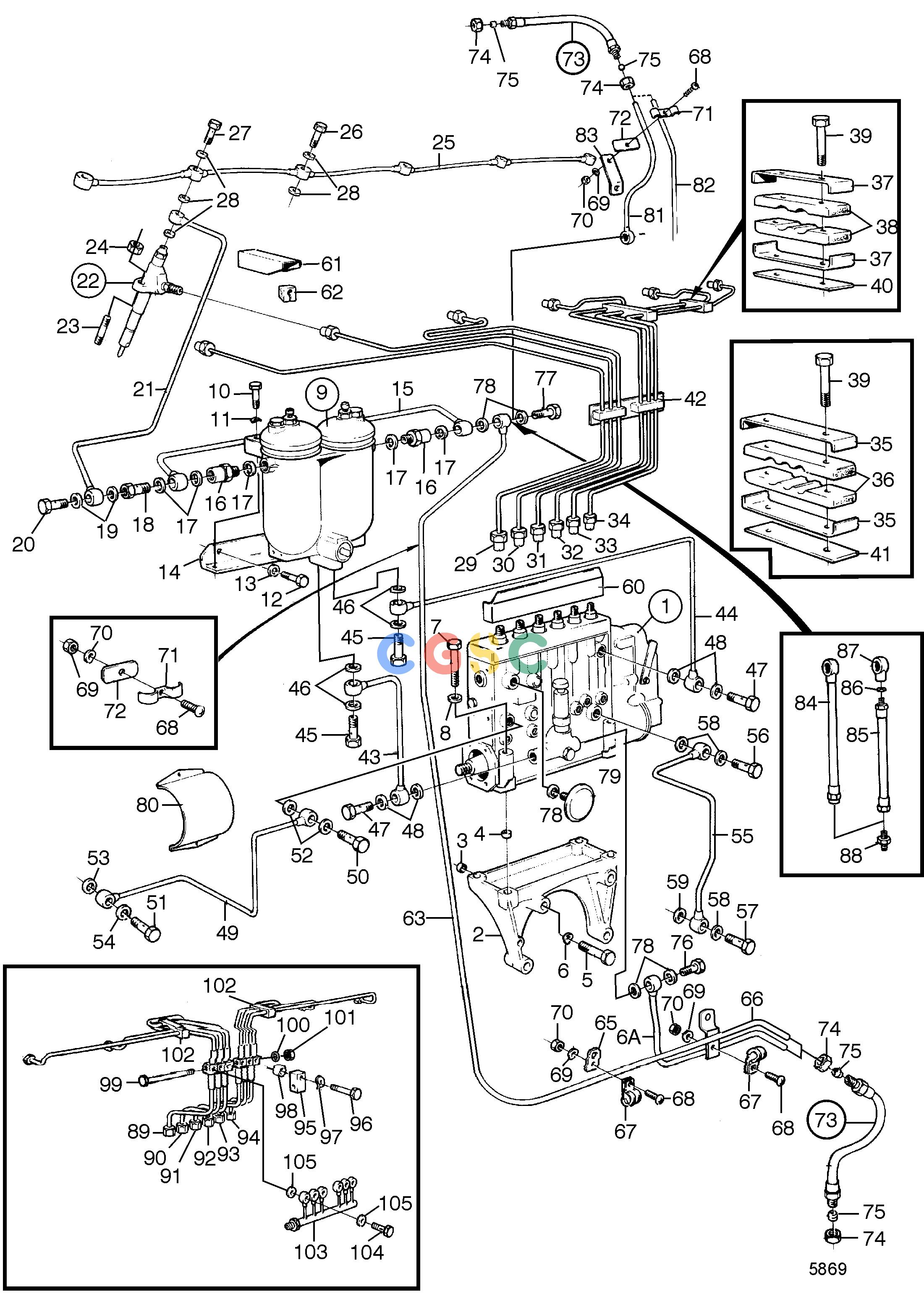

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemFuel System, Classed Engine SPEC867096, 867097, 867189, 867589: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
747 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
241699
|
[1] |
Injection pump, fuel injection pump
|
MO-3925/XXXX
|
| 1. |
|
|
|
Repl by 843978
|
| 1. |
836910
|
[1] |
Injection pump
|
MO3926/XXXX-
|
| 2. |
468558
|
[1] |
Bracket
|
|
| 3. |
423161
|
[2] |
Guide sleeve
|
|
| 4. |
417588
|
[1] |
Guide sleeve
|
|
| 5. |
955566
|
[4] |
Hexagon screw
|
|
| 6. |
940280
|
[4] |
Spring washer
|
|
| 7. |
940156
|
[4] |
Hexagon screw
|
|
| 8. |
190509
|
[4] |
Washer
|
|
| 9. |
243405
|
[1] |
Fuel filter kit
|
|
| 10. |
940134
|
[2] |
Hexagon screw
|
|
| 11. |
941909
|
[2] |
Spring washer
|
|
| 12. |
940115
|
[2] |
Hexagon screw
|
|
| 13. |
942336
|
[2] |
Spring washer
|
|
| 14. |
845319
|
[1] |
Bracket
|
(836365)
|
| 15. |
836748
|
[1] |
Pipe
|
|
| 16. |
35096
|
[2] |
Overflow valve
|
|
| 17. |
18671
|
[5] |
Gasket
|
|
| 18. |
16496
|
[1] |
Hollow screw
|
|
| 19. |
957171
|
[2] |
Gasket
|
|
| 20. |
74033
|
[1] |
Hollow screw
|
|
| 21. |
836747
|
[1] |
Pipe
|
|
| 22. |
837097
|
[6] |
Injector
|
|
| 22. |
3803249
|
[6] |
Injector
|
|
| 23. |
941928
|
[12] |
Stud
|
|
| 24. |
417110
|
[12] |
Nut
|
|
| 25. |
822564
|
[1] |
Leak-off line
|
|
| 26. |
74033
|
[5] |
Hollow screw
|
|
| 27. |
74034
|
[1] |
Hollow screw
|
|
| 28. |
957171
|
[13] |
Gasket
|
|
| 29. |
822558
|
[1] |
Tube
|
Cyl. no. 1
|
| 30. |
822559
|
[1] |
Tube
|
Cyl. no. 2
|
| 31. |
822560
|
[1] |
Tube
|
Cyl. no. 3
|
| 32. |
822561
|
[1] |
Tube
|
Cyl. no. 4
|
| 33. |
822562
|
[1] |
Pipe
|
Cyl. no. 5
|
| 34. |
822563
|
[1] |
Tube
|
Cyl. no. 6
|
| 35. |
414346
|
[8] |
Attaching clamp
|
|
| 36. |
414347
|
[8] |
Attaching clamp
|
|
| 37. |
414344
|
[2] |
Attaching clamp
|
|
| 38. |
414345
|
[2] |
Attaching clamp
|
|
| 39. |
955247
|
[10] |
Hexagon screw
|
|
| 40. |
414736
|
[1] |
Nut plate
|
|
| 41. |
414735
|
[2] |
Nut plate
|
|
| 42. |
822546
|
[1] |
Bracket
|
See group 2B
|
| 43. |
836750
|
[1] |
Fuel pipe
|
|
| 44. |
836749
|
[1] |
Fuel pipe
|
|
| 45. |
26013
|
[2] |
Hollow screw
|
|
| 46. |
957181
|
[4] |
Gasket
|
|
| 47. |
25167
|
[2] |
Hollow screw
|
|
| 48. |
18671
|
[4] |
Gasket
|
|
| 49. |
423393
|
[1] |
Feed line
|
|
| 50. |
48634
|
[1] |
Hollow screw
|
|
| 51. |
942081
|
[1] |
Hollow screw, hollow screw
|
MO-18662/XXXX
|
| 51. |
|
|
|
See group 2B
|
| 51. |
837709
|
[1] |
Hollow screw, hollow screw
|
MO18663/XXXX-
|
| 52. |
957173
|
[2] |
Gasket
|
|
| 53. |
18666
|
[1] |
Gasket
|
|
| 54. |
11994
|
[1] |
Gasket
|
|
| 55. |
422246
|
[1] |
Return pipe
|
|
| 56. |
25167
|
[1] |
Hollow screw
|
|
| 57. |
954394
|
[1] |
Hollow screw
|
|
| 58. |
18671
|
[3] |
Gasket
|
|
| 59. |
11998
|
[1] |
Gasket
|
|
| 60. |
824377
|
[1] |
Protecting plate
|
Included in repair kit 6210761
|
| 61. |
824379
|
[6] |
Protecting plate
|
Included in repair kit 6210761
|
| 62. |
836456
|
[6] |
Protecting sleeve
|
Included in repair kit 6210761
|
| 63. |
837610
|
[1] |
Fuel pipe
|
Included in repair kit 6210761
|
| 64. |
837607
|
[1] |
Fuel pipe
|
Included in repair kit 6210761
|
| 65. |
821036
|
[1] |
Anchorage
|
Included in repair kit 6210761
|
| 66. |
821625
|
[1] |
Anchorage
|
Included in repair kit 6210761
|
| 67. |
952625
|
[3] |
Clamp
|
Included in repair kit 6210761.
|
| 68. |
950046
|
[4] |
Cross recessed screw
|
Included in repair kit 6210761.
|
| 69. |
941906
|
[4] |
Spring washer
|
Included in repair kit 6210761.
|
| 70. |
955825
|
[4] |
Hexagon nut
|
Included in repair kit 6210761.
|
| 71. |
941492
|
[2] |
Clamp
|
Included in repair kit 6210761
|
| 72. |
821076
|
[2] |
Anchorage
|
Included in repair kit 6210761
|
| 73. |
|
|
|
Included in repair kit 6210761., Repl by 845450
|
| 74. |
956983
|
[8] |
Fitting nut
|
Included in repair kit 6210761.
|
| 75. |
956969
|
[8] |
Ferrule
|
Included in repair kit 6210761.
|
| 76. |
25167
|
[1] |
Hollow screw
|
Included in repair kit 6210761.
|
| 77. |
180211
|
[1] |
Hollow screw
|
|
| 78. |
18671
|
[5] |
Gasket
|
|
| 79. |
466398
|
[1] |
Pressure equalizer
|
|
| 80. |
7742190_035
|
|
fuel injection pump
|
|
| 80. |
|
|
|
|
| 81. |
837611
|
[1] |
Fuel pipe
|
Included in repair kit 6210761
|
| 82. |
837612
|
[1] |
Fuel pipe
|
Included in repair kit 6210761
|
| 83. |
|
|
|
Included in repair kit 6210761.
|
| 84. |
|
|
|
Spec VER Repl by 837364
|
| 85. |
845372
|
[1] |
Fuel hose
|
(837364)
|
| 86. |
11998
|
[1] |
Gasket
|
|
| 87. |
26016
|
[1] |
Banjo nipple
|
|
| 88. |
22753
|
[1] |
Nipple
|
|
