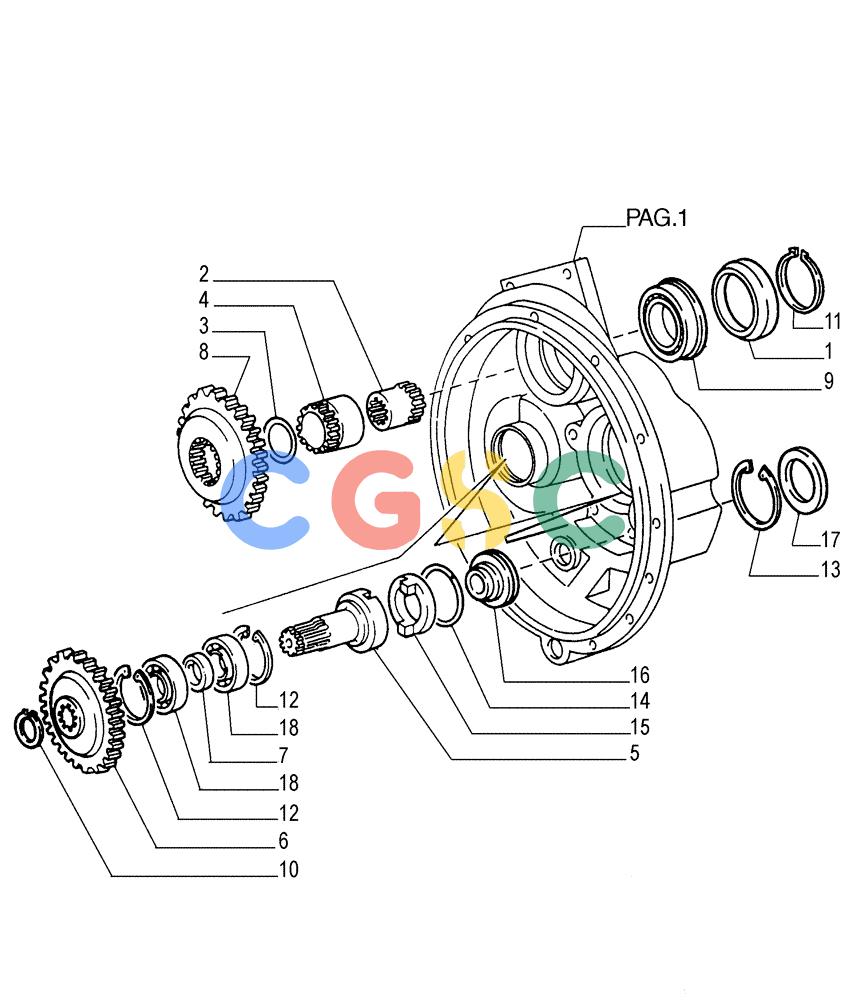

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (1.200[02]) - UNIT TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76035627 | [1] | WASHER, THRUST | LECWASHER,THRUST |
| 2. | 76035626 | [1] | DRIVE BUSHING | LEC |
| 3. | 79011004 | [1] | RING | LEC |
| 4. | 79011005 | [1] | SLEEVE | LEC |
| 5. | 79010265 | [2] | CONTROL SHAFT | LEC |
| 6. | 79011617 | [2] | GEAR | LEC |
| 7. | 79004529 | [2] | SPACER,30.2mm ID x 38mm OD x 11mm L | LEC |
| 8. | 79011006 | [1] | GEAR | LEC |
| 9. | 79004527 | [1] | BALL BEARING,75mm ID x 115mm OD x 20mm W | LEC |
| 10. | 11067476 | [2] | SNAP RING,M26, Ext | LEC |
| 11. | 11070576 | [1] | SNAP RING,M75, Ext | MKT Superseded by part number: 300637 |
| 12. | 11061076 | [4] | SNAP RING,M62, Int | ZED Superseded by part number: 370012 |
| 13. | 11061676 | [2] | SNAP RING,M75, Int | PLO Superseded by part number: 382103 |
| 14. | 4526900 | [1] | SNAP RING | BRE |
| 15. | 4526899 | [1] | COUPLING RING | BRE |
| 16. | 591794 | [1] | CHANNEL | LEC |
| 17. | 565154 | [1] | RING | MOD |
| 18. | 20685450 | [4] | BALL BEARING,30 mm ID x 62 mm OD x 16 mm | TTF30X62 Superseded by part number: 75224976, 210064, 700803262 |
