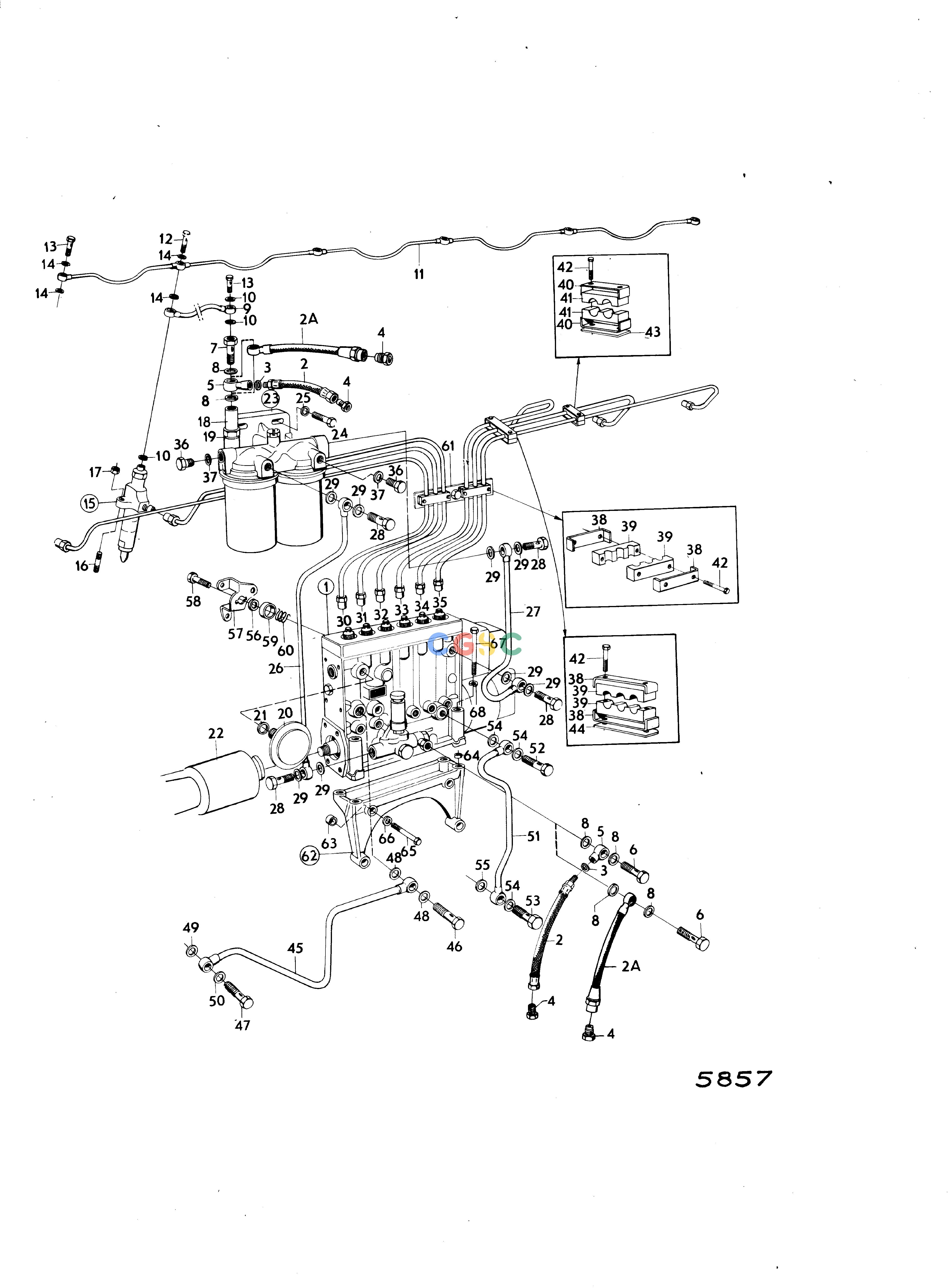

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCFuel SystemFuel System: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Repl by 843979
|
| 1. |
843979
|
[1] |
Injection pump
|
|
| 2. |
|
|
|
Spec VER Repl by 837364
|
| 2A. |
845372
|
[2] |
Fuel hose
|
(837363)
|
| 2. |
845372
|
[2] |
Fuel hose
|
(837364)
|
| 3. |
11998
|
[2] |
Gasket
|
|
| 4. |
22753
|
[2] |
Nipple
|
|
| 5. |
26016
|
[2] |
Banjo nipple
|
|
| 6. |
25167
|
[1] |
Hollow screw
|
|
| 7. |
16496
|
[1] |
Hollow screw
|
|
| 8. |
18671
|
[4] |
Gasket
|
|
| 9. |
822592
|
[1] |
Leak-off line
|
|
| 10. |
957171
|
[3] |
Gasket
|
|
| 11. |
822564
|
[1] |
Leak-off line
|
|
| 12. |
74034
|
[1] |
Hollow screw
|
|
| 13. |
74033
|
[6] |
Hollow screw
|
|
| 14. |
957171
|
[12] |
Gasket
|
|
| 15. |
837097
|
[6] |
Injector
|
|
| 15. |
3803249
|
[6] |
Injector
|
|
| 16. |
941928
|
[12] |
Stud
|
|
| 17. |
417110
|
[12] |
Nut
|
|
| 18. |
35096
|
[2] |
Overflow valve
|
Included in repair kit 6210761.
|
| 19. |
18671
|
[2] |
Gasket
|
Included in repair kit 6210761.
|
| 20. |
466398
|
[1] |
Pressure equalizer
|
|
| 21. |
18671
|
[1] |
Gasket
|
|
| 22. |
|
|
|
|
| 23. |
241672
|
[1] |
Filter housing
|
Replaced by 77989.
|
| 23. |
471172
|
[1] |
Filter housing
|
|
| 24. |
940162
|
[2] |
Hexagon screw
|
|
| 25. |
942336
|
[2] |
Spring washer
|
|
| 26. |
822590
|
[1] |
Fuel pipe
|
|
| 27. |
822591
|
[1] |
Fuel pipe
|
|
| 28. |
25167
|
[4] |
Hollow screw
|
|
| 29. |
18671
|
[8] |
Gasket
|
|
| 30. |
823781
|
[1] |
Delivery pipe
|
Cyl. no. 1
|
| 31. |
823782
|
[1] |
Delivery pipe
|
Cyl. no. 2
|
| 32. |
823783
|
[1] |
Delivery pipe
|
Cyl. no. 3
|
| 33. |
823784
|
[1] |
Delivery pipe
|
Cyl. no. 4
|
| 34. |
823785
|
[1] |
Delivery pipe
|
Cyl. no. 5
|
| 35. |
823786
|
[1] |
Delivery pipe
|
Cyl. no. 6
|
| 36. |
960630
|
[2] |
Plug
|
|
| 37. |
18671
|
[2] |
Gasket
|
|
| 38. |
414346
|
[8] |
Attaching clamp
|
|
| 39. |
414347
|
[8] |
Attaching clamp
|
|
| 40. |
414344
|
[2] |
Attaching clamp
|
|
| 41. |
414345
|
[2] |
Attaching clamp
|
|
| 42. |
955247
|
[10] |
Hexagon screw
|
|
| 43. |
414736
|
[1] |
Nut plate
|
|
| 44. |
414735
|
[2] |
Nut plate
|
|
| 45. |
423393
|
[1] |
Feed line
|
|
| 46. |
48634
|
[1] |
Hollow screw
|
|
| 47. |
942081
|
[1] |
Hollow screw
|
MO-18662/XXXX
|
| 47. |
837709
|
[1] |
Hollow screw
|
MO18663/XXXX-
|
| 48. |
957173
|
[2] |
Gasket
|
|
| 49. |
18666
|
[1] |
Gasket
|
|
| 50. |
11994
|
[1] |
Gasket
|
|
| 51. |
422246
|
[1] |
Return pipe
|
|
| 52. |
25167
|
[1] |
Hollow screw
|
|
| 53. |
954394
|
[1] |
Hollow screw
|
|
| 54. |
18671
|
[3] |
Gasket
|
|
| 55. |
11998
|
[1] |
Gasket
|
|
| 56. |
941906
|
[1] |
Spring washer
|
See group 2D
|
| 57. |
821134
|
[1] |
Lever
|
See group 2D
|
| 58. |
955270
|
[1] |
Hexagon screw
|
See group 2D
|
| 61. |
822546
|
[1] |
Bracket
|
See group 2B
|
| 62. |
468558
|
[1] |
Bracket
|
|
| 63. |
423161
|
[2] |
Guide sleeve
|
|
| 64. |
417588
|
[1] |
Guide sleeve
|
|
| 65. |
955566
|
[4] |
Hexagon screw
|
|
| 66. |
940280
|
[4] |
Spring washer
|
|
| 67. |
940156
|
[4] |
Hexagon screw
|
|
| 68. |
190509
|
[4] |
Washer
|
|
