沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCMiscellaneous EquipmentBilge Pump 1''EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
288 次

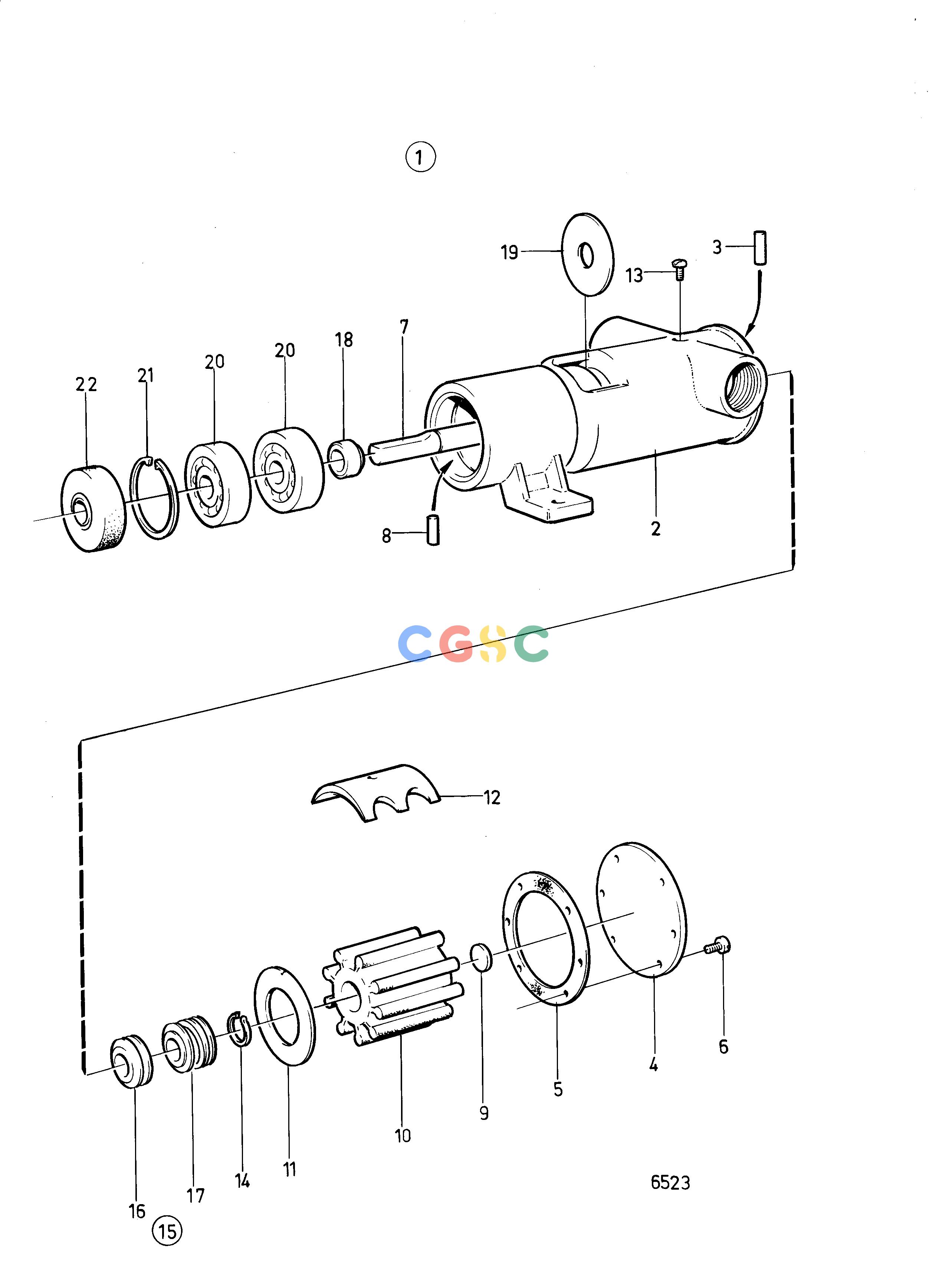

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
815293
|
[1] |
Bilge pump
|
1''
|
| 2. |
|
|
|
|
| 3. |
807572
|
[1] |
Locating pin
|
|
| 4. |
815573
|
[1] |
Cap
|
|
| 5. |
807582
|
[1] |
Gasket
|
|
| 6. |
804776
|
[6] |
Screw
|
|
| 7. |
809113
|
[1] |
Shaft
|
|
| 8. |
|
|
|
|
| 9. |
804781
|
[2] |
Sealing washer
|
|
| 10. |
|
|
|
|
| 11. |
807589
|
[1] |
Wear washer
|
|
| 12. |
801565
|
[1] |
Cam
|
|
| 13. |
801566
|
[1] |
Screw
|
|
| 14. |
914450
|
[1] |
Snap ring
|
|
| 15. |
822708
|
[1] |
Sealing
|
|
| 16. |
822708
|
[1] |
Sealing
|
(809440) repl by 822708
|
| 17. |
822708
|
[1] |
Sealing
|
(823228) repl by 822708
|
| 18. |
809441
|
[1] |
Sealing
|
|
| 19. |
807555
|
[1] |
Deflector
|
|
| 20. |
809443
|
[2] |
Ball bearing
|
|
| 21. |
813704
|
[1] |
Lock ring
|
|
| 22. |
807515
|
[1] |
Sealing ring
|
|
| 22. |
875758
|
[1] |
Impeller kit
|
See group 10A
|
