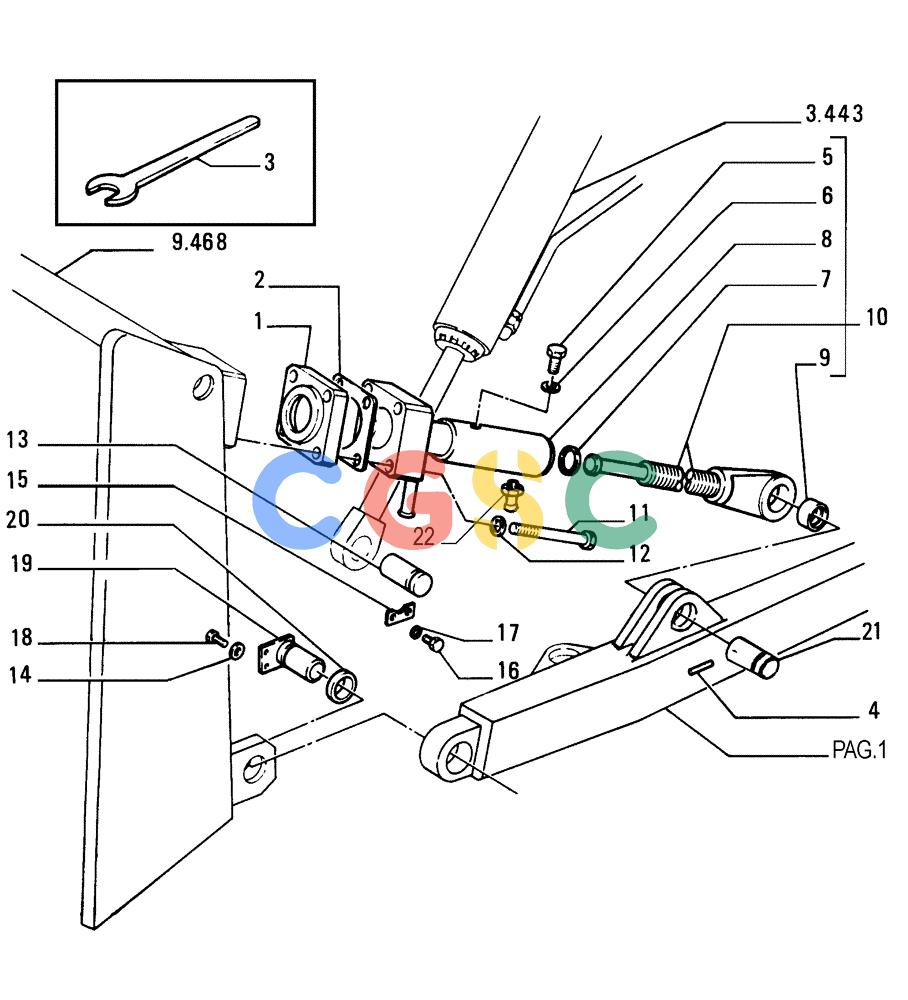

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (9.467[02]) - PUSHBEAMS AND STRUTS (HSU) - OPTIONAL CODE 76026283 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
420 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8284681 | [2] | SPECIAL TOOL | LEC |
| 2. | 8284682 | [1] | SHIM,105mm ID x 100mm OD x 0.3mm Thk | LEC |
| 3. | 14585778 | [1] | ADJUSTING WRENCH | LEC36 Superseded by part number: 14585771 |
| 4. | 13918070 | [2] | ROLL PIN,M10 x 120, Coiled | LEC |
| 5. | 8293816 | [1] | SCREW,M20 x 2.5 x 2.5mm | LEC |
| 6. | 14497131 | [1] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 7. | 8295066 | [1] | SEAL | LEC |
| 8. | 76030118 | [1] | DRAG LINK | LEC |
| 9. | 8284648 | [1] | BUSHING | LEC |
| 10. | 76030122 | [1] | TIE-ROD | LEC- ASSY |
| 11. | 11126131 | [8] | BOLT,Hex, M20 x 120, 10.9 | COE20X120 Superseded by part number: 11126134 |
| 13. | 8290347 | [2] | PIN | LEC |
| 14. | 14496931 | [4] | WASHER,17mm ID x 30mm OD x 3mm Thk | IMO Superseded by part number: 86625266 |
| 15. | 8270126 | [2] | PLATE | LEC Superseded by part number: 76092114 |
| 16. | 11115531 | [4] | BOLT,Hex, M14 x 30, 10.9, Full Thd | LEC Superseded by part number: 11115534 |
| 17. | 12644931 | [4] | WASHER,14.4mm ID x 32mm OD x 4mm Thk | LEC |
| 18. | 11127531 | [4] | BOLT,Hex, M16 x 35, 10.9 | LEC Superseded by part number: 86529976 |
| 19. | 76033414 | [2] | PIN | LEC |
| 20. | 76029688 | [4] | SPACER | LEC |
| 21. | 76033420 | [2] | PIN | LEC |
| 22. | 13407211 | [1] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
