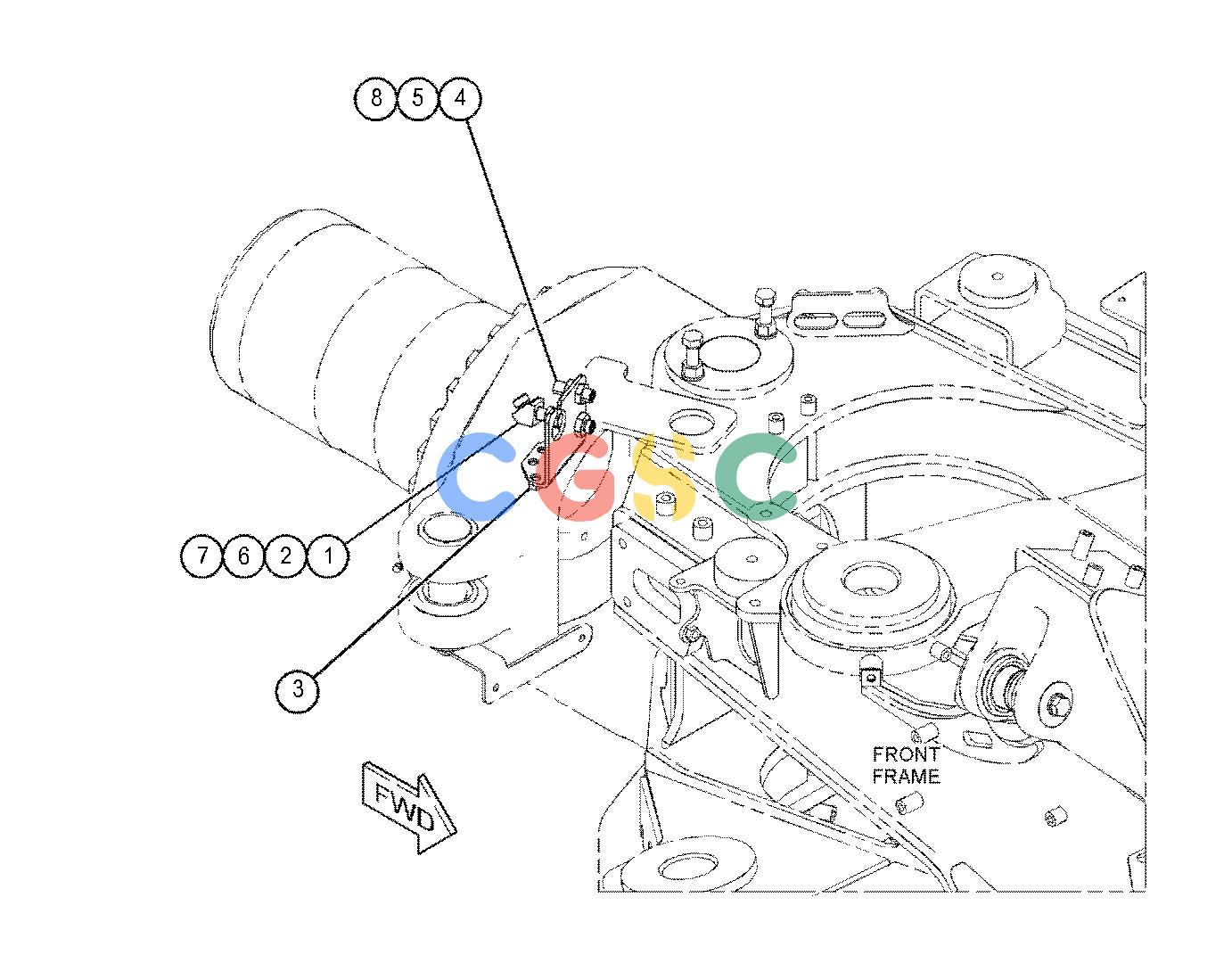

卡特零件查询（730） 513-4401: ADAPTER GP-MOUNTING
广数供应链运营团队, 15 02月, 2025，浏览：
872 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 153-6241 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8C-8989 | [1] | ELBOW | |
| 2. | 185-3365 | [1] | UNION AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-0129 | [1] | UNION | |
| 3. | 511-3169 | [1] | BRACKET AS | |
| 4. | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 5. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 6. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 7. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 8. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
