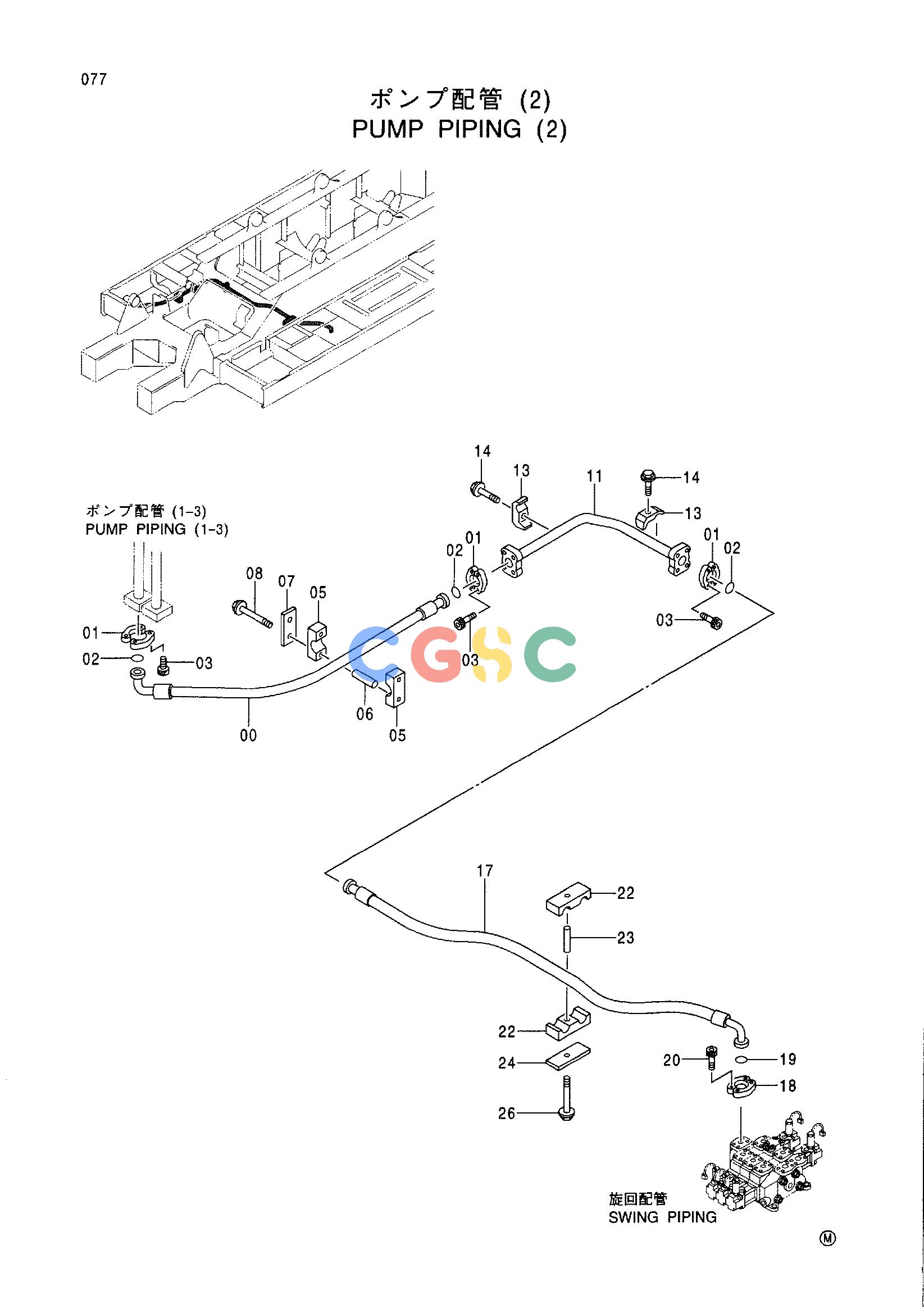

日立零件查询（CX1000）PUMP PIPING (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
928 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4367886 | [1] | HOSE | |
| 01. | 4085560 | [6] | FLANGE;SPLIT | |
| 02. | 966993 | [3] | O-RING | |
| 03. | M341250 | [12] | BOLT;SOCKET | |
| 05. | 4341808 | [2] | CLAMP;HOSE | |
| 06. | 4205614 | [2] | SPACER | |
| 07. | 4341803 | [1] | PLATE | |
| 08. | J011285 | [2] | BOLT;SEMS | |
| 11. | 8072591 | [1] | PIPE | |
| 13. | 4190127 | [2] | CLAMP;PIPE | |
| 14. | J011265 | [2] | BOLT;SEMS | |
| 17. | 4402967 | [1] | HOSE | |
| 18. | 4154614 | [2] | FLANGE;SPLIT | |
| 19. | 4508805 | [1] | O-RING | |
| 20. | M341230 | [4] | BOLT;SOCKET | |
| 22. | 4205615 | [2] | CLAMP;HOSE | |
| 23. | 4205614 | [1] | SPACER | |
| 24. | 4224002 | [1] | PLATE | |
| 26. | J011280 | [1] | BOLT;SEMS | |
