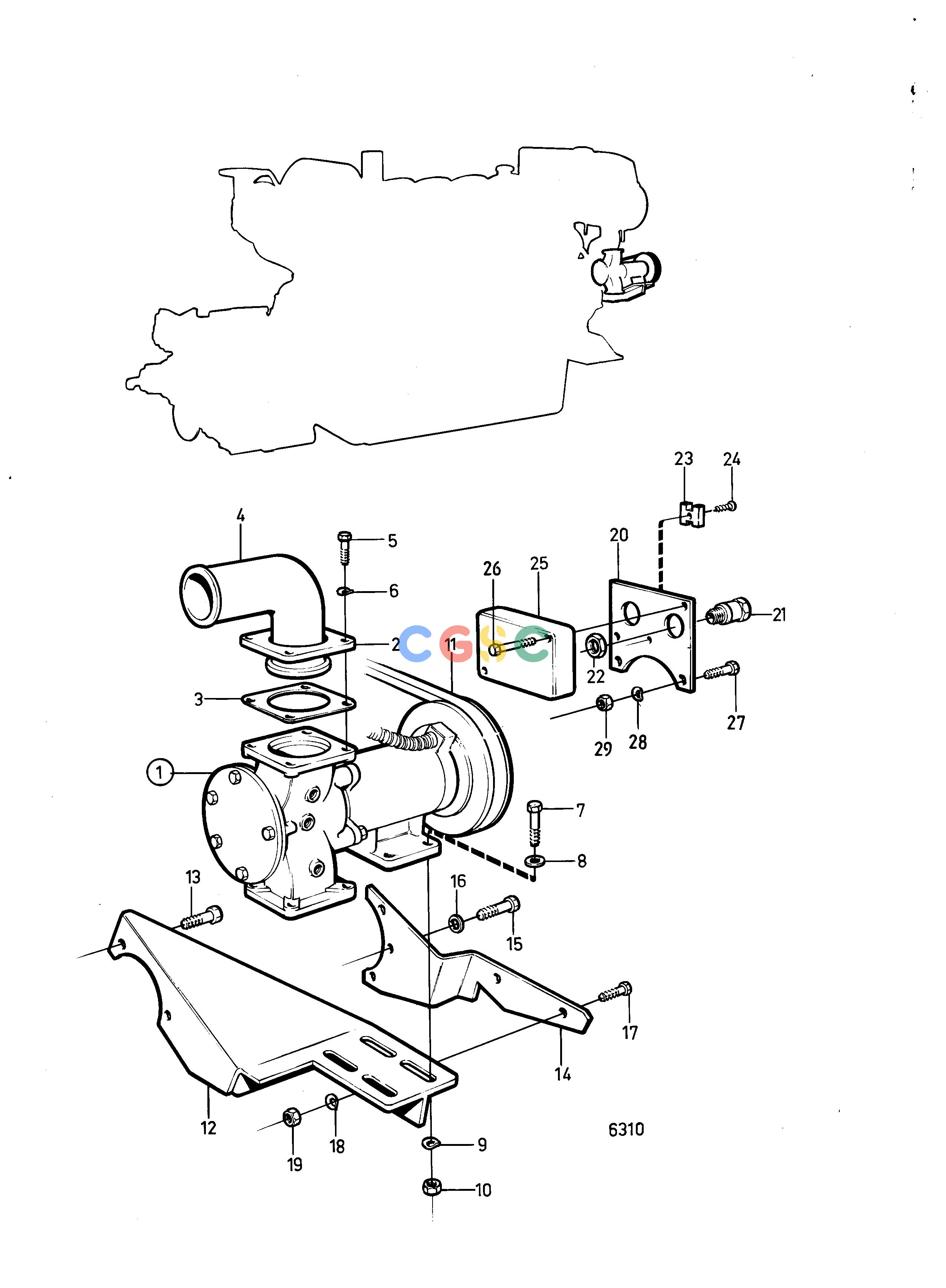

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCMiscellaneous EquipmentFlushing Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846104
|
[1] |
Sea water pump
|
11/4''
|
| 2. |
842029
|
[2] |
Flange
|
|
| 3. |
820877
|
[2] |
Gasket
|
|
| 4. |
842028
|
[2] |
Hose attachment
|
|
| 5. |
940114
|
[8] |
Hexagon screw
|
|
| 6. |
942336
|
[8] |
Spring washer
|
|
| 7. |
940162
|
[4] |
Hexagon screw
|
|
| 8. |
940097
|
[4] |
Washer
|
|
| 9. |
942336
|
[4] |
Spring washer
|
|
| 10. |
955827
|
[4] |
Hexagon nut
|
|
| 11. |
846361
|
[1] |
V-belt
|
|
| 12. |
846231
|
[1] |
Bracket
|
|
| 13. |
955577
|
[2] |
Hexagon screw
|
|
| 14. |
846232
|
[1] |
Bracket
|
|
| 15. |
955535
|
[3] |
Hexagon screw
|
|
| 16. |
940097
|
[3] |
Washer
|
|
| 17. |
955535
|
[2] |
Hexagon screw
|
|
| 18. |
942336
|
[2] |
Spring washer
|
|
| 19. |
955827
|
[2] |
Hexagon nut
|
|
| 20. |
846233
|
[1] |
Bracket
|
|
| 21. |
881192
|
[1] |
Grommet
|
|
| 21. |
822327
|
[1] |
Grommet
|
|
| 22. |
880243
|
[2] |
Nut
|
|
| 23. |
182010
|
[1] |
Coupling piece
|
|
| 24. |
956049
|
[1] |
Cross recessed screw
|
|
| 25. |
837392
|
[1] |
Cap
|
|
| 26. |
956301
|
[2] |
Cross recessed screw
|
|
| 27. |
955525
|
[2] |
Hexagon screw
|
|
| 28. |
941905
|
[2] |
Spring washer
|
|
| 29. |
955780
|
[2] |
Hexagon nut
|
|
