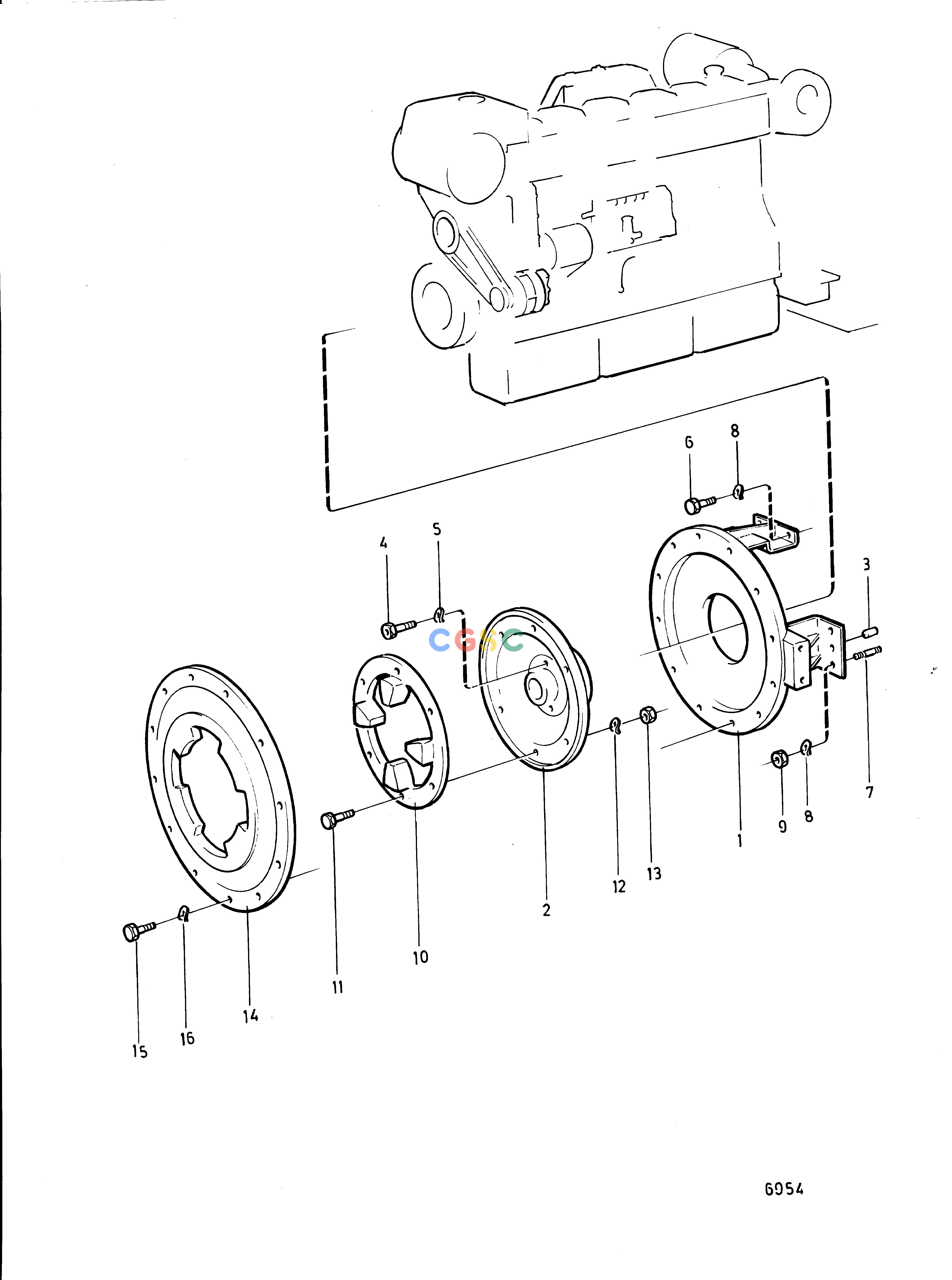

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCMiscellaneous EquipmentInstallation Components for Hydraulic Pump F-11-78-C, F-11-11EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823121
|
[1] |
Bell housing
|
8''+10''
|
| 2. |
823081
|
[1] |
Companion flange
|
8''
|
| 3. |
941510
|
[2] |
Pin
|
|
| 4. |
955555
|
[12] |
Hexagon screw
|
|
| 5. |
941909
|
[12] |
Spring washer
|
|
| 6. |
955535
|
[2] |
Hexagon screw
|
|
| 7. |
953282
|
[6] |
Stud
|
|
| 8. |
942336
|
[8] |
Spring washer
|
|
| 9. |
955827
|
[6] |
Hexagon nut
|
|
| 10. |
846147
|
[1] |
Element
|
|
| 11. |
955535
|
[6] |
Hexagon screw
|
|
| 12. |
942336
|
[6] |
Spring washer
|
|
| 13. |
950354
|
[6] |
Lock nut
|
|
| 14. |
846149
|
[1] |
Plate
|
F-11-78-C
|
| 14. |
846148
|
[1] |
Plate
|
F-11-110-C
|
| 15. |
940115
|
[12] |
Hexagon screw
|
|
| 16. |
942336
|
[12] |
Spring washer
|
|
