纽荷兰零件查询(E135SR) - CRAWLER EXCAVATOR ASN YY04-06254 (03-005) - HYD LINES, ARM 2.45M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
806 次

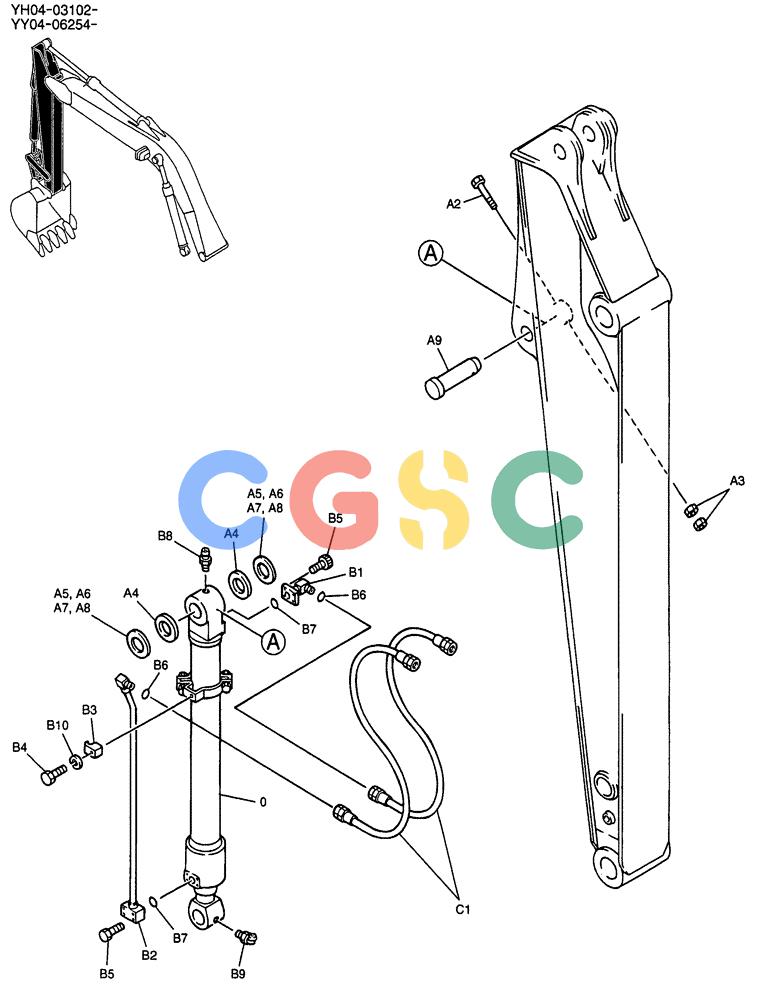

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YX01V00005F2 | [1] | CYLINDER ASSY. | KOBBUCKET YH04-03102, Serial Range: -YH04-03345 Superseded by part number: YX01V00005F7 |
| 0. | YX01V00005F7 | [1] | HYDRAULIC CYLINDER | KOBCYLINDER ASSY, BUCKET, Start Serial: YH04-03346 |
| . . | YY12B00005F2 | [1] | CYLINDER INSTAL | |
| A2. | HS18C12110G2 | [1] | CAPSCREW | KOBSCREW CAP |
| A3. | ZN18C12010 | [2] | NUT | KOB |
| A4. | YW12B01025P1 | [2] | SHIM,62mm ID x 100mm OD x 3mm Thk | KOB(3.0) |
| A5. | B16T0442D43 | [1] | SHIM,0.9mm Thk | KOB |
| A6. | B16T0442D56 | [1] | SHIM,0.5mm Thk | KOB |
| A7. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB(1.2) |
| A8. | B16T0442D19 | [1] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOB(1.6) |
| A9. | YY12B01046P1 | [1] | PIN | KOB |
| . . | LP43H00002F1 | [1] | LINE | KOBHYD, CYLINDER |
| B1. | LP43H01054P1 | [1] | TUBE | KOB |
| B2. | LP43H01047P2 | [1] | TUBE | KOB |
| B3. | YW43H01049P1 | [1] | CLAMP | KOB |
| B4. | ZS18C10050 | [1] | SCREW,Hex, M10 x 50mm | KOBCAP |
| B5. | ZS28C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOBCAP |
| B6. | ZD12A01600 | [2] | O-RING | KOB |
| B7. | ZD12P02600 | [2] | O-RING | KOB |
| B8. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB |
| B9. | ZG91U02000 | [1] | LUBE NIPPLE | KOB |
| B10. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | YY43H00001F1 | [1] | LINE | KOBHYD, ARM Superseded by part number: ZX50H10110 |
| C1. | ZX50H10110 | [2] | HOSE | KOB |
