斗山零件查询BOOM PIPING-4.6m ROTATING & TILTING SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

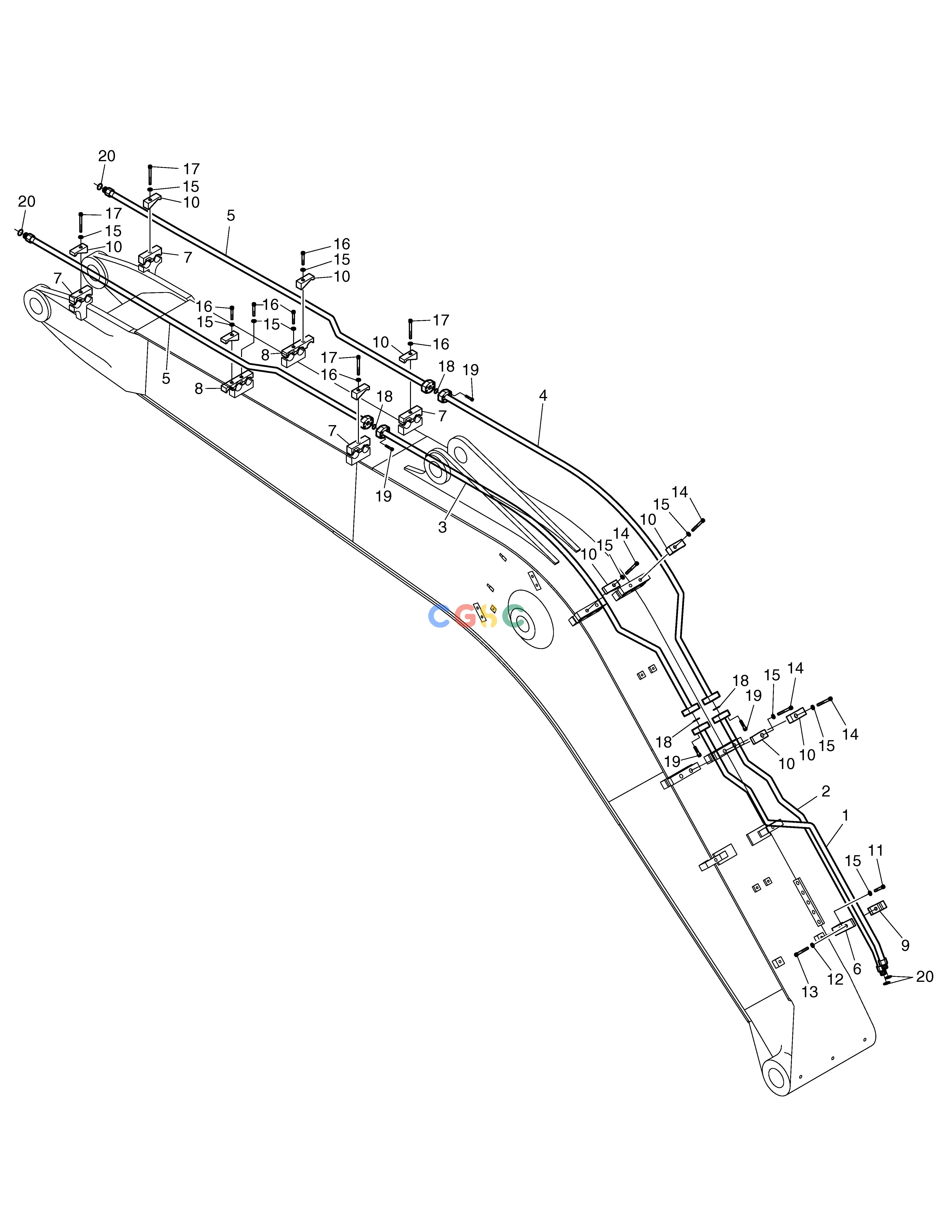

400-00857
|
[-] |
BOOM PIPING-4.6m
|
|
| 1. |
140-01109A
|
[1] |
PIPE;BOOM1(L.H)
|
|
| 10. |
124-00241
|
[10] |
CLAMP;PIPE
|
|
| 11. |
S0560553
|
[1] |
BOLT M12X1.75X40
|
|
| 12. |
S5102603
|
[1] |
. WASHER
|
|
| 13. |
S0558953
|
[1] |
BOLT
|
|
| 14. |
S0561353
|
[4] |
BOLT M12X1.75X80
|
|
| 15. |
S5102703
|
[13] |
WASHER
|
|
| 16. |
S0560953
|
[4] |
BOLT M12X1.75X60
|
|
| 17. |
S0561553
|
[4] |
BOLT M12X1.75X90
|
|
| 18. |
2180-1026D30
|
[4] |
O-RING
|
|
| 19. |
S2209366
|
[16] |
BOLT
|
|
| 2. |
140-01110A
|
[1] |
PIPE;BOOM1(R.H)
|
|
| 20. |
S8030081
|
[4] |
O-RING
|
|
| 3. |
140-01111A
|
[1] |
PIPE;BOOM-M(L.H)
|
|
| 4. |
140-01112A
|
[1] |
PIPE;BOOM-M(R.H)
|
|
| 5. |
140-01113A
|
[2] |
PIPE;BOOM2
|
|
| 6. |
195-01514A
|
[1] |
BRACKET
|
|
| 7. |
124-00239
|
[4] |
CLAMP;PIPE
|
|
| 8. |
124-00240
|
[2] |
CLAMP;PIPE
|
|
| 9. |
124-00201
|
[1] |
CLAMP;PIPE
|
|
