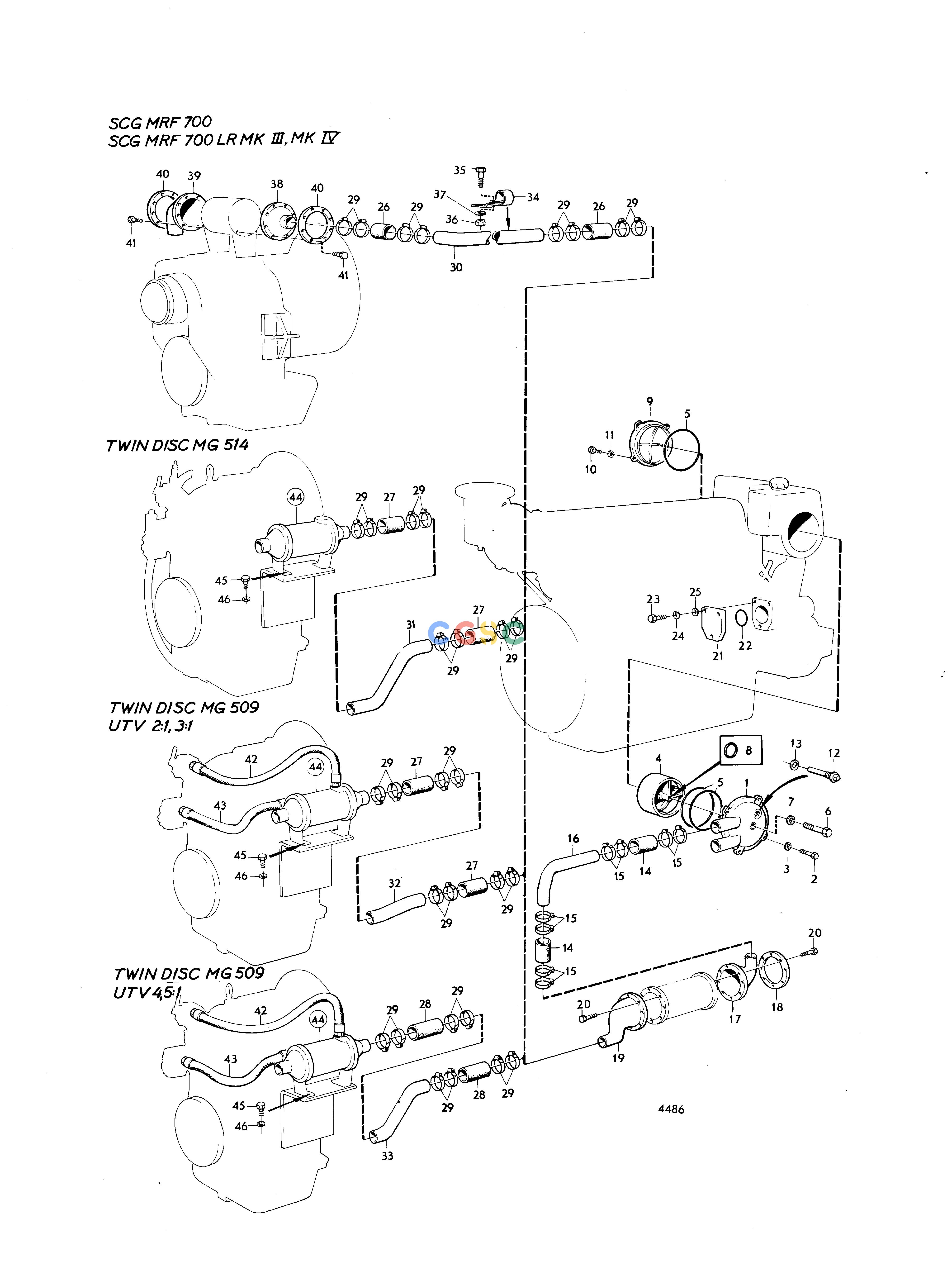

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCMiscellaneous EquipmentKeel Cooling SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
384 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
822545
|
[1] |
Cap
|
|
| 2. |
955536
|
[4] |
Hexagon screw
|
|
| 3. |
942336
|
[4] |
Spring washer
|
|
| 4. |
823688
|
[1] |
Housing
|
|
| 5. |
925278
|
[3] |
O-ring
|
|
| 6. |
955598
|
[1] |
Hexagon screw
|
|
| 7. |
941912
|
[1] |
Spring washer
|
|
| 8. |
955977
|
[1] |
O-ring
|
|
| 9. |
823689
|
[1] |
End cover
|
|
| 10. |
955535
|
[4] |
Hexagon screw
|
|
| 11. |
942336
|
[4] |
Spring washer
|
|
| 12. |
823661
|
[3] |
Zinc anode
|
(823661)
|
| 13. |
836169
|
[3] |
Gasket
|
|
| 14. |
943372
|
[1] |
Rubber hose
|
L=110mm (952980)
|
| 15. |
943480
|
[8] |
Hose clamp
|
(951797)
|
| 16. |
823690
|
[1] |
Coolant pipe
|
|
| 17. |
823803
|
[1] |
End cover
|
|
| 18. |
823802
|
[1] |
Clamping ring
|
|
| 19. |
824454
|
[1] |
End cover
|
|
| 20. |
955514
|
[16] |
Hexagon screw
|
|
| 21. |
420178
|
[1] |
Cover
|
|
| 22. |
413619
|
[1] |
Gasket
|
|
| 23. |
955576
|
[3] |
Hexagon screw
|
|
| 24. |
941911
|
[3] |
Spring washer
|
|
| 25. |
955899
|
[3] |
Washer
|
|
| 26. |
943372
|
[1] |
Rubber hose
|
L=70mm (952980)
|
| 27. |
943372
|
[1] |
Rubber hose
|
MD21A, MD21B for separate water outlet., L=150mm (952980)
|
| 28. |
943372
|
[1] |
Rubber hose
|
L=170mm
|
| 29. |
943480
|
[8] |
Hose clamp
|
|
| 30. |
824452
|
[1] |
Coolant pipe
|
SCG MRF 700
|
| 30. |
824450
|
[1] |
Tube
|
SCG MRF 700 LR MK3
|
| 31. |
836115
|
[1] |
Tube
|
|
| 32. |
837109
|
[1] |
Coolant pipe
|
|
| 33. |
837117
|
[1] |
Coolant pipe
|
|
| 34. |
824433
|
[1] |
Clamp
|
|
| 35. |
940159
|
[1] |
Hexagon screw
|
|
| 36. |
955826
|
[1] |
Hexagon nut
|
|
| 37. |
941907
|
[1] |
Spring washer
|
|
| 38. |
823813
|
[1] |
End cover
|
Replaced by 828412
|
| 38. |
836888
|
[1] |
End cover
|
For SCG MRF700 MK4
|
| 39. |
823803
|
[1] |
End cover
|
Replaced by 828412
|
| 39. |
836888
|
[1] |
End cover
|
For SCG MRF700 MK4
|
| 40. |
823802
|
[2] |
Clamping ring
|
Replaced by 828412.
|
| 41. |
940117
|
[16] |
Hexagon screw
|
Replaced by 828412.
|
| 42. |
837119
|
[1] |
Hose
|
L=600mm
|
| 43. |
837095
|
[1] |
Lubricating oil hose
|
L=695mm
|
| 44. |
837099
|
[1] |
Oil cooler
|
|
| 44. |
|
|
|
See group 4A
|
| 45. |
940098
|
[4] |
Hexagon screw
|
|
| 46. |
942336
|
[4] |
Spring washer
|
|
