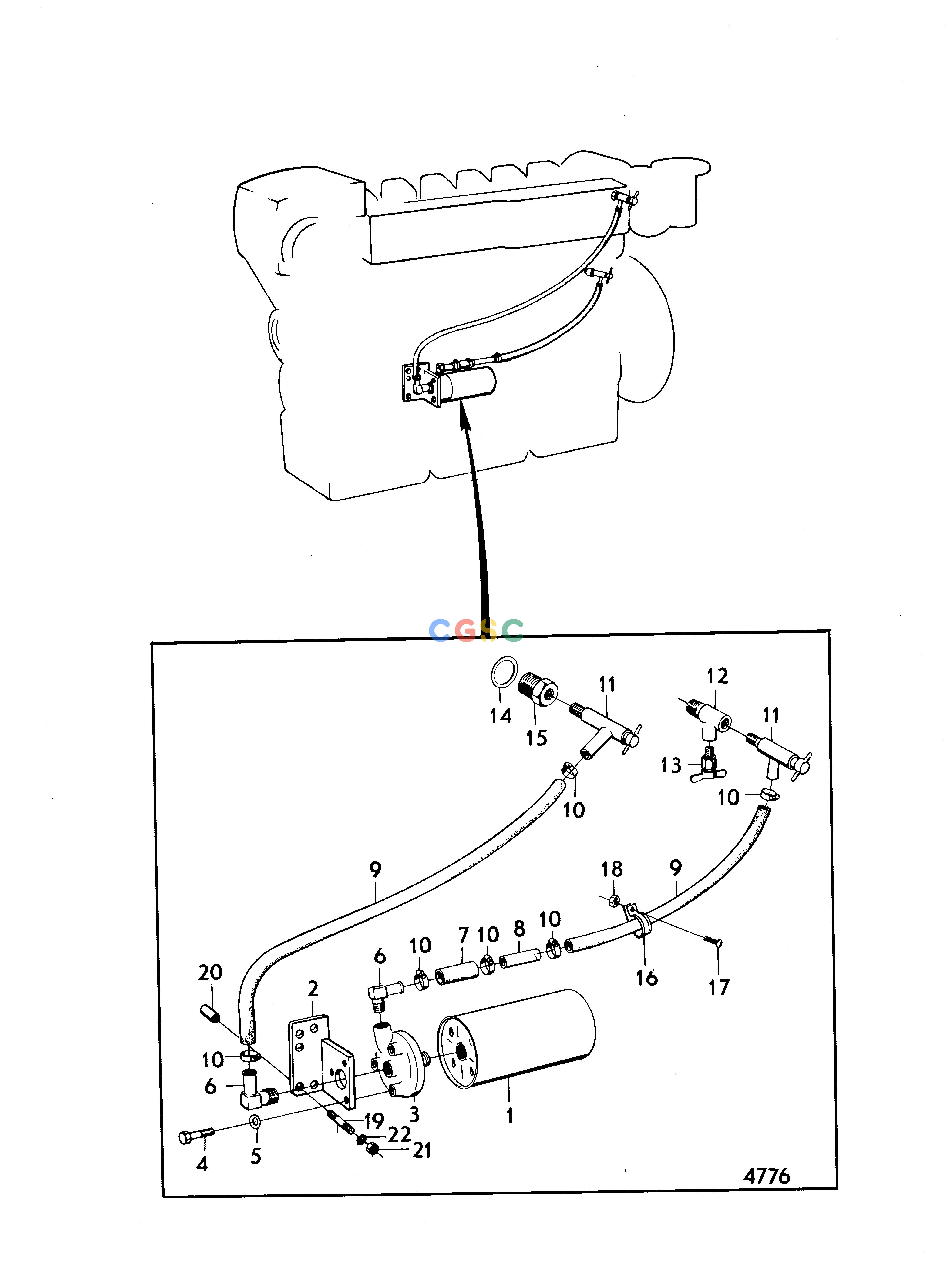

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCMiscellaneous EquipmentWater Filter with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
366822
|
[1] |
Filter
|
|
| 2. |
836462
|
[1] |
Bracket
|
|
| 3. |
836440
|
[1] |
Filter housing
|
|
| 4. |
940135
|
[3] |
Hexagon screw
|
|
| 5. |
941907
|
[3] |
Spring washer
|
|
| 6. |
961606
|
[2] |
Hose nipple
|
|
| 7. |
941995
|
[1] |
Hose
|
Early type L=80mm
|
| 8. |
365275
|
[1] |
Flow indicator
|
Early type
|
| 9. |
941995
|
[1] |
Hose
|
Late type L=800mm
|
| 10. |
943472
|
[4] |
Hose clamp
|
Late type
|
| 11. |
365287
|
[2] |
Faucet
|
|
| 12. |
827932
|
[1] |
T-pipe
|
|
| 13. |
82745
|
[1] |
Shut-off cock
|
|
| 14. |
469328
|
[1] |
Gasket
|
|
| 15. |
837180
|
[1] |
Plug
|
|
| 16. |
941772
|
[1] |
Clamp
|
|
| 17. |
950021
|
[1] |
Cross recessed screw
|
|
| 18. |
940092
|
[1] |
Hexagon nut
|
|
| 19. |
953350
|
[2] |
Stud
|
L=65mm
|
| 20. |
955899
|
[2] |
Washer
|
|
| 21. |
955828
|
[2] |
Hexagon nut
|
|
| 22. |
941911
|
[2] |
Spring washer
|
|
