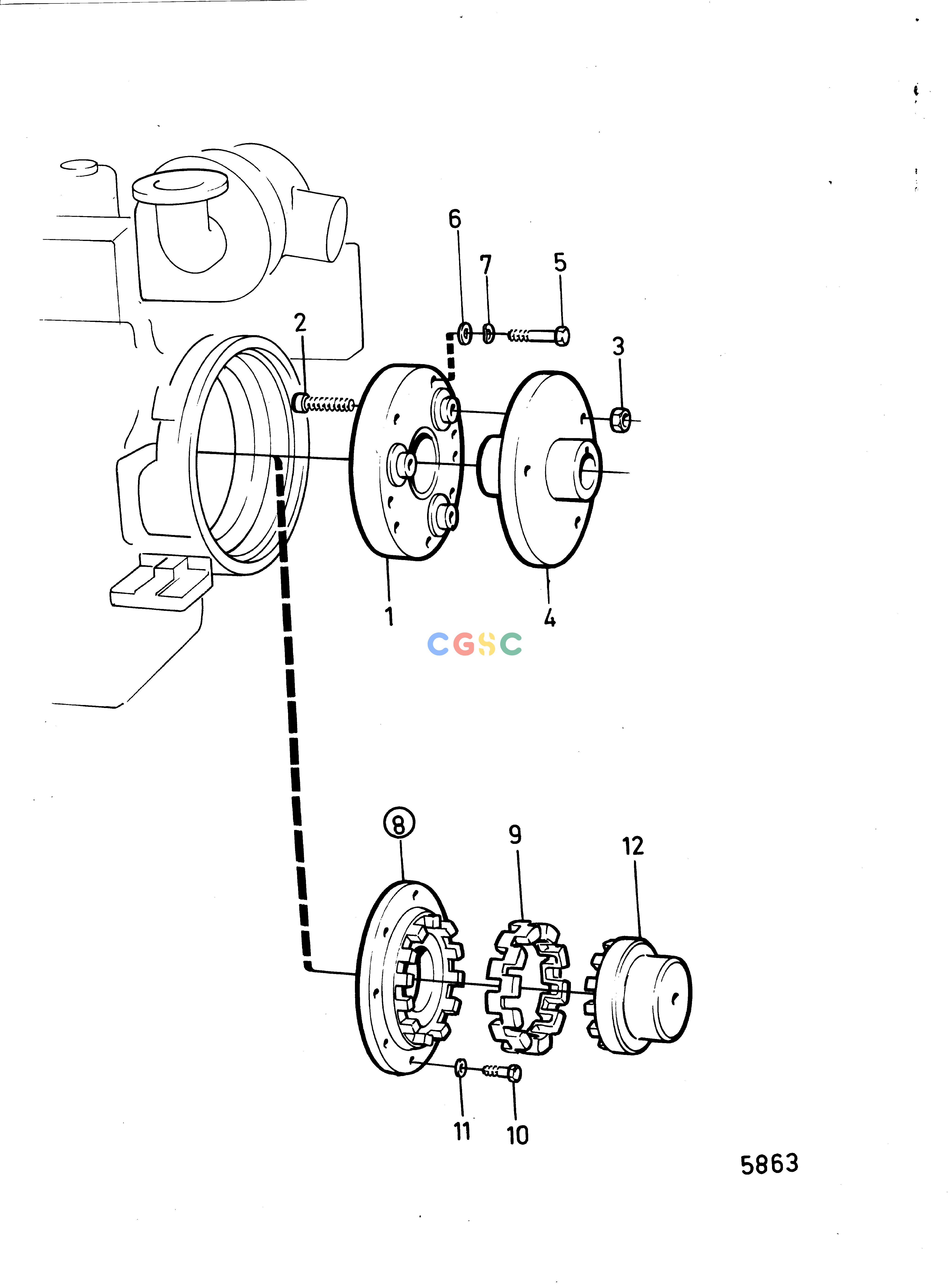

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCTransmissionsFlexible CouplingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823358
|
[1] |
Clutch
|
Included only in 851501
|
| 2. |
824471
|
[3] |
Screw
|
Included only in 851501., Early type
|
| 3. |
824472
|
[3] |
Lock nut
|
Included only in 851501., Early type
|
| 4. |
823382
|
[1] |
Clutch half
|
For transport., Included only in 851501., I.d=38mm early type
|
| 5. |
955541
|
[6] |
Hexagon screw
|
Included only in 851501., Early type
|
| 6. |
942336
|
[6] |
Spring washer
|
Included only in 851501., Early type
|
| 7. |
940097
|
[6] |
Washer
|
Included only in 851501., Early type
|
| 8. |
|
|
|
Late type
|
| 8. |
845622
|
[1] |
Clutch flange
|
Late type
|
| 9. |
845621
|
[1] |
Rubber element
|
Late type
|
| 10. |
960691
|
[8] |
Hexagon screw
|
Late type
|
| 11. |
840210
|
[8] |
Washer
|
Late type
|
| 12. |
845620
|
[1] |
Clutch half
|
For transport., I.d=48mm late type
|
