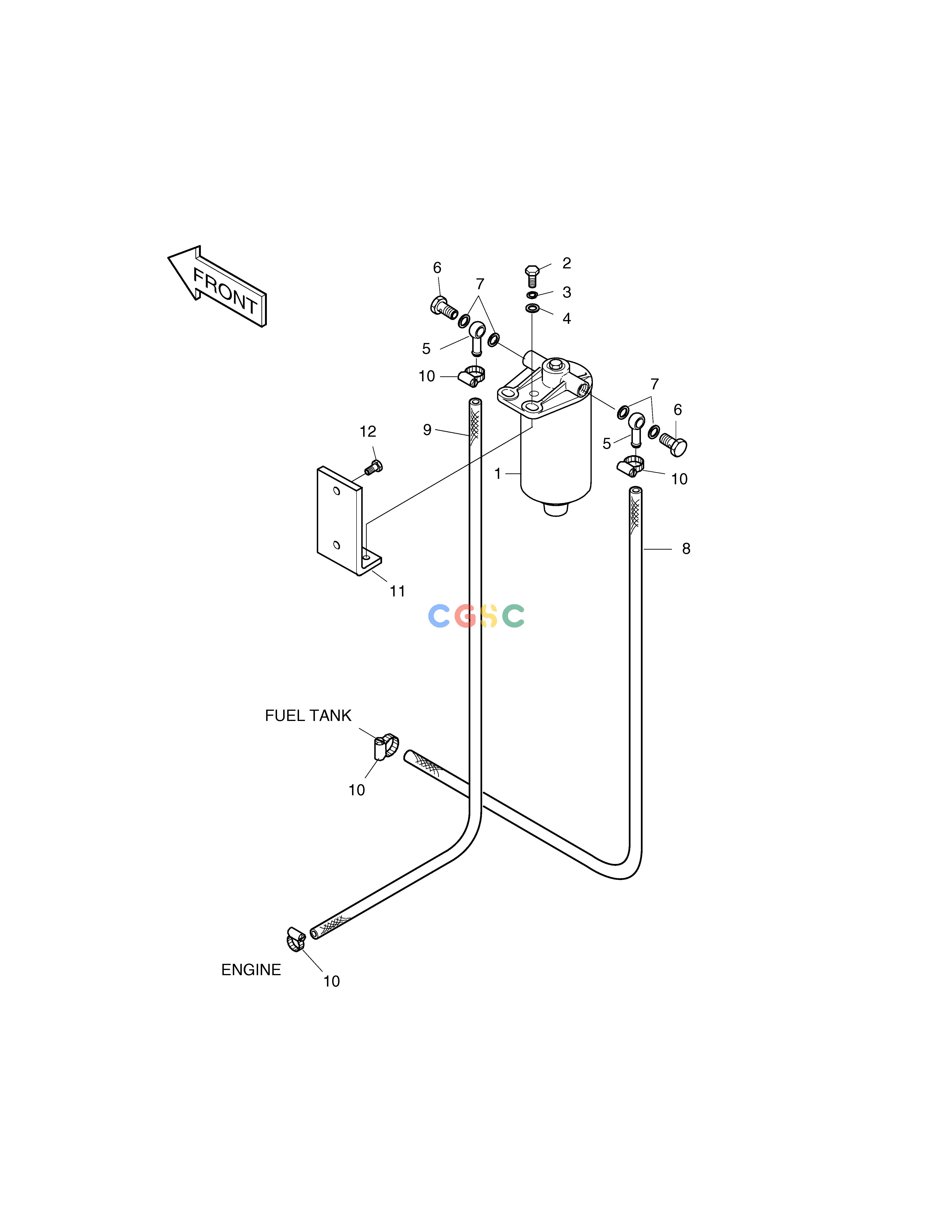

斗山零件查询DOUBLE FUEL FILTER SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
471-00016
|
[-] |
DOUBLE FUEL FILTER ASS'Y
|
|
| 1. |
2471-9053
|
[1] |
FUEL FILTER ASS'Y
|
|
| 10. |
S8450012
|
[4] |
CLAMP
|
|
| 11. |
195-00218
|
[1] |
BRACKET
|
|
| 12. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 2. |
S0515353
|
[2] |
BOLT M12X1.75X35
|
|
| 3. |
S5102703
|
[2] |
WASHER
|
|
| 4. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 5. |
2181-9015
|
[2] |
PIPE;FUEL
|
|
| 6. |
2120-9013
|
[2] |
SCREW;HOLLOW
|
|
| 7. |
S8180221
|
[4] |
RING;SEAL
|
|
| 8. |
2185-1247D1
|
[1] |
HOSE
|
|
| 9. |
2185-1247D31
|
[1] |
HOSE 1200L
|
|
