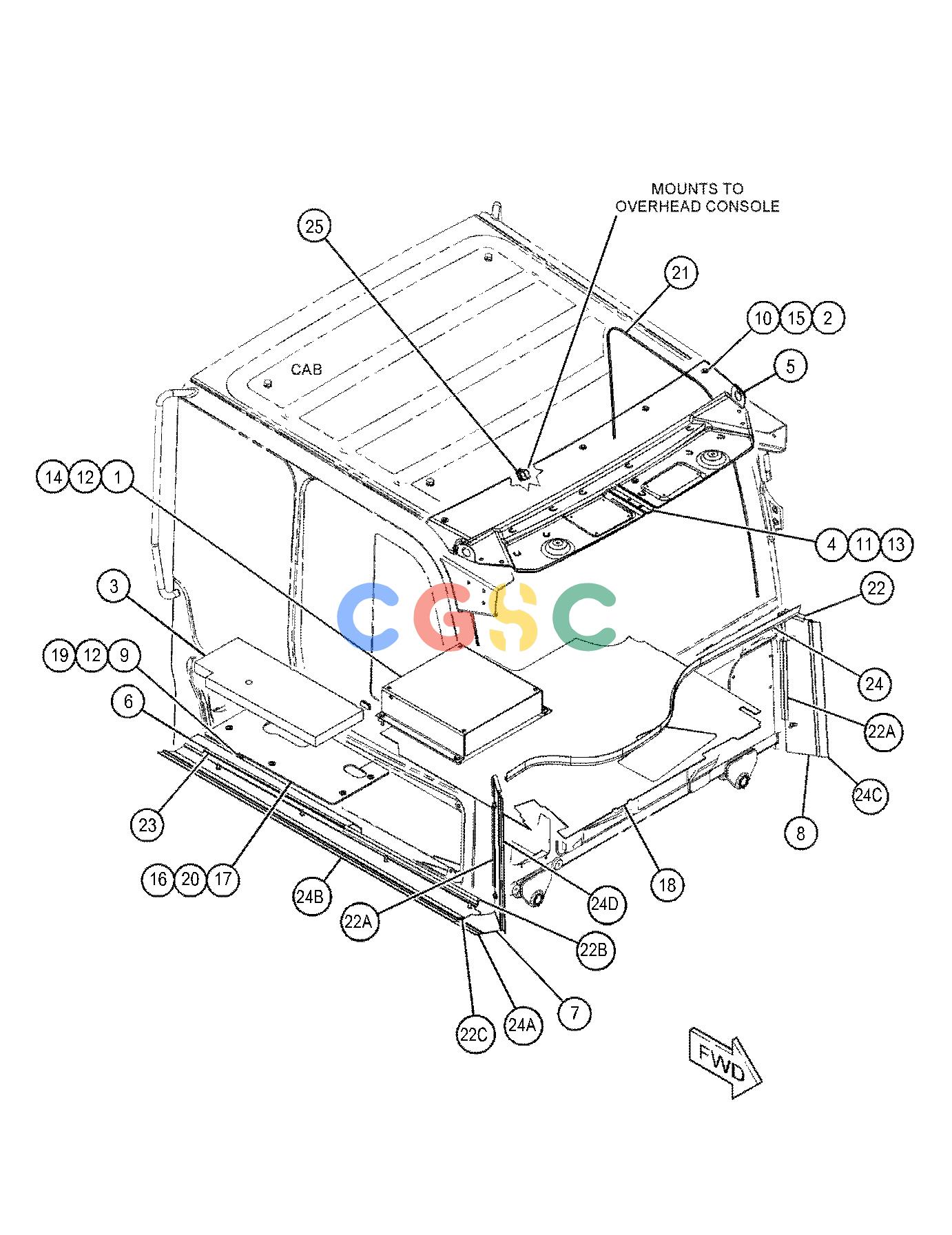

卡特零件查询（730） 485-0332: ROPS GP
广数供应链运营团队, 15 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 444-2499 | [1] | SUPPORT AS | |
| 2. | 463-0212 | [6] | SPACER(8.8X16X4-MM THK) | |
| 3. | 462-7982 | [1] | INSULATION | |
| 4. | 485-5669 | [1] | PANEL AS | |
| 5. | 492-1197 | [1] | VISOR | |
| 6. | 526-1346 | [1] | PANEL | |
| 7. | 526-1345 | [1] | PANEL | |
| 8. | 547-4423 | [1] | PLATE | |
| 9. | 7G-1060 | [1] | STRAP AS-GROUND | |
| 10. | 7X-0579 | [6] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 11. | 7X-7729 | [12] | WASHER(11X25X3-MM THK) | |
| 12. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [12] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4182M | [4] | BOLT(M10X1.5X45-MM) | |
| 15. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 16. | 104-5604 | [6] | WASHER(7.2X25X2-MM THK) | |
| 17. | 541-8391 | [1] | BAFFLE | |
| 18. | 542-5213 | [2] | COVER | |
| 19. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 20. | 9X-2046M | [6] | SCREW-TRUSS HEAD(M6X1X35-MM) | |
| 21. | 6V-3987D | | SEAL(2-M) | |
| 22. | 201-4066H | | SEAL(0.8-DM EACH) | |
| 22A. | 201-4066H | | SEAL(3.6-DM EACH) | |
| 22B. | 201-4066H | | SEAL(7-DM) | |
| 22C. | 201-4066H | | SEAL(0.6-DM) | |
| 23. | 5P-5637D | | SEAL(0.8-M) | |
| 24. | 136-7728H | | SEAL(16.8-DM) | |
| 24A. | 136-7728H | | SEAL(1.2-DM) | |
| 24B. | 136-7728H | | SEAL(15.8-DM) | |
| 24C. | 136-7728H | | SEAL(6.2-DM) | |
| 24D. | 136-7728H | | SEAL(6-DM) | |
| 25. | 228-6089 | [1] | PLUG(ROCKER SWITCH) | |
| | D | | ORDER BY THE METER |
| | H | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
