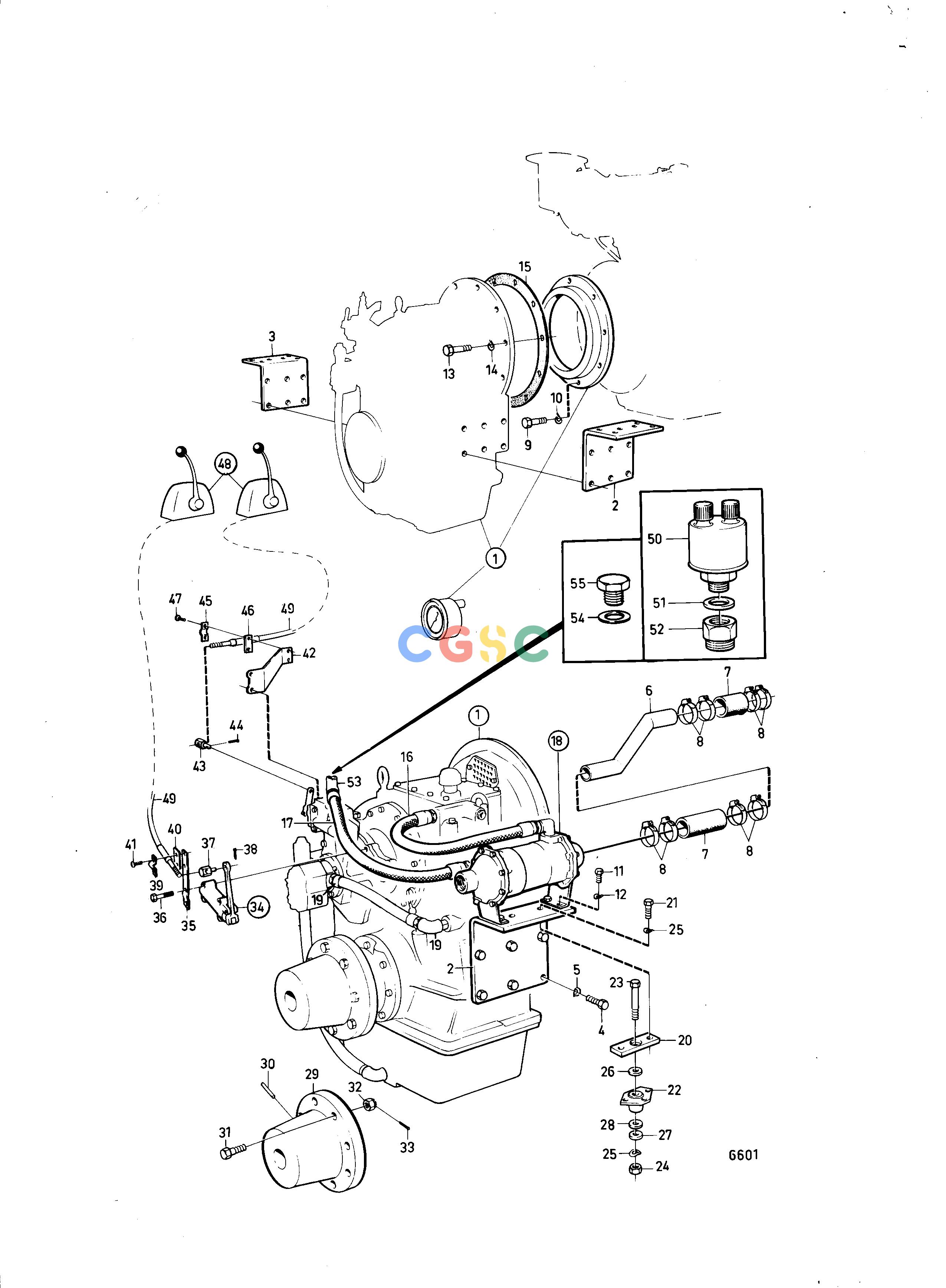

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCTransmissionsReverse Gear Twin Disc MG514 and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
837088
|
[1] |
Bracket
|
|
| 3. |
837068
|
[1] |
Bracket
|
|
| 4. |
955601
|
[8] |
Hexagon screw
|
|
| 5. |
941913
|
[8] |
Spring washer
|
|
| 6. |
846330
|
[1] |
Tube
|
See group 2B
|
| 7. |
943372
|
[1] |
Rubber hose
|
L=190mm
|
| 8. |
943480
|
[4] |
Hose clamp
|
|
| 9. |
955561
|
[8] |
Hexagon screw
|
|
| 10. |
940280
|
[8] |
Spring washer
|
|
| 11. |
940098
|
[4] |
Hexagon screw
|
|
| 12. |
942336
|
[4] |
Spring washer
|
|
| 13. |
940134
|
[10] |
Hexagon screw
|
|
| 14. |
941909
|
[12] |
Spring washer
|
|
| 15. |
800314
|
[1] |
Gasket
|
|
| 16. |
824487
|
[1] |
Lubricating oil hose
|
|
| 17. |
836476
|
[1] |
Lubricating oil hose
|
|
| 18. |
837099
|
[1] |
Oil cooler
|
|
| 19. |
949707
|
[2] |
Reduction nipple
|
|
| 20. |
824374
|
[2] |
Intermediate plate
|
|
| 21. |
955589
|
[4] |
Hexagon screw
|
|
| 22. |
836961
|
[2] |
Rubber cushion
|
|
| 23. |
959827
|
[2] |
Hexagon screw
|
|
| 24. |
955829
|
[2] |
Hexagon nut
|
|
| 25. |
941912
|
[6] |
Spring washer
|
|
| 26. |
836325
|
[2] |
Washer
|
|
| 27. |
836962
|
[2] |
Stop washer
|
|
| 28. |
836963
|
[2] |
Rubber washer
|
|
| 29. |
837093
|
[1] |
Clutch flange
|
|
| 30. |
907661
|
[2] |
Taper pin
|
|
| 31. |
955772
|
[8] |
Screw
|
|
| 32. |
955889
|
[8] |
Castle nut
|
|
| 33. |
907881
|
[8] |
Split pin
|
|
| 34. |
846862
|
[1] |
Slip valve
|
Spec 867012, 867145
|
| 34. |
|
|
|
|
| 35. |
846170
|
[1] |
Bracket
|
|
| 36. |
955528
|
[2] |
Hexagon screw
|
|
| 37. |
804312
|
[1] |
Cube
|
|
| 38. |
17276
|
[1] |
Split pin
|
|
| 39. |
21471054
|
[1] |
Bracket
|
|
| 40. |
819068
|
[1] |
Washer
|
|
| 41. |
950021
|
[2] |
Cross recessed screw
|
|
| 42. |
836117
|
[1] |
Bracket
|
|
| 43. |
813674
|
[1] |
Cube
|
|
| 44. |
907824
|
[1] |
Split pin
|
|
| 45. |
21471054
|
[1] |
Bracket
|
|
| 46. |
819068
|
[1] |
Washer
|
|
| 47. |
950021
|
[2] |
Cross recessed screw
|
|
| 48. |
|
|
|
See group 9
|
| 49. |
|
|
|
See group 9
|
| 50. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 51. |
947624
|
[1] |
Gasket
|
|
| 52. |
843706
|
[1] |
Nipple
|
|
| 53. |
844795
|
[1] |
Elbow nipple
|
|
| 54. |
947624
|
[1] |
Gasket
|
|
| 55. |
960632
|
[1] |
Plug
|
|
