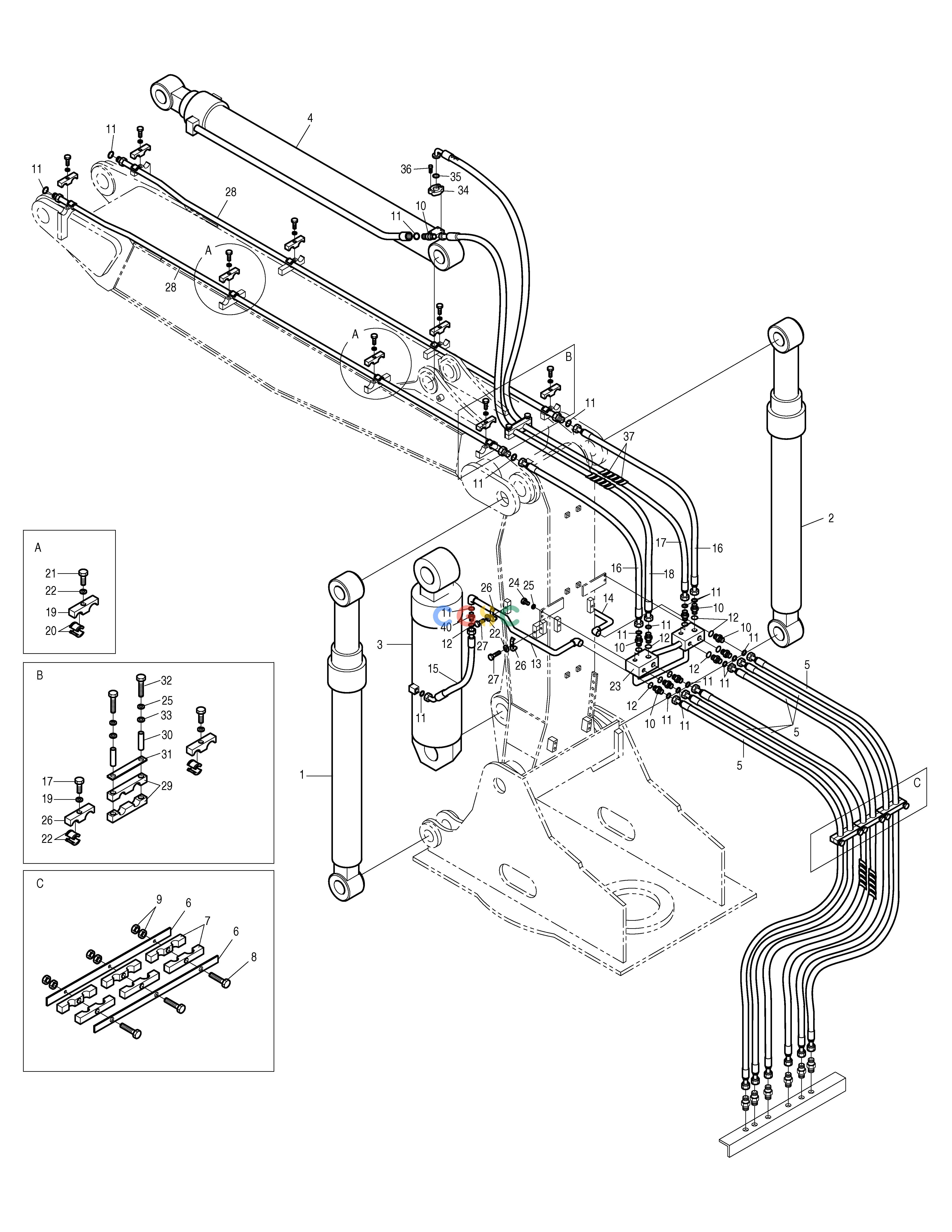

斗山零件查询FRONT PIPING-ARTI.BOOM SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
863 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00732
|
[-] |
FRONT PIPING-ARTI.
|
|
| 1. |
440-00283
|
[1] |
BOOM CYLINDER(L.H.)-ARTI.BOOM
|
|
| 10. |
2181-2627D1
|
[11] |
ADAPTER
|
|
| 11. |
S8030121
|
[19] |
O-RING
|
|
| 12. |
S8000231
|
[12] |
O-RING
|
|
| 13. |
140-00898
|
[1] |
PIPE;ARTI (LH)
|
|
| 14. |
140-00899
|
[1] |
PIPE;ARTI (RH)
|
|
| 15. |
DS2012160
|
[2] |
HOSE PF3/4-640L
|
|
| 16. |
2184-1196D8
|
[2] |
HOSE PF3/4-1150L
|
|
| 17. |
DS2018055
|
[1] |
HOSE PF3/4-2040L
|
|
| 18. |
2184-1196D11
|
[1] |
HOSE PF3/4-2150L
|
|
| 19. |
124-00171
|
[8] |
CLAMP
|
|
| 2. |
440-00284
|
[1] |
CYCLINDER;BOOM-ARTI.(R.H)
|
|
| 20. |
2161-2250A
|
[16] |
RUBBER
|
|
| 21. |
S0560853
|
[8] |
BOLT M12X1.75X55
|
|
| 22. |
S5102703
|
[12] |
WASHER
|
|
| 23. |
423-00131
|
[1] |
BLOCK;ARTI.
|
|
| 24. |
S0511953
|
[4] |
BOLT
|
|
| 25. |
S5102603
|
[6] |
. WASHER
|
|
| 26. |
2124-1026D2
|
[4] |
CLAMP
|
|
| 27. |
S0560753
|
[4] |
BOLT M12X1.75X50
|
|
| 28. |
140-00900
|
[2] |
PIPE;UPPER BOOM
|
|
| 29. |
124-00027
|
[2] |
CLAMP;RUBBER
|
|
| 3. |
440-00285
|
[1] |
ARTI. BOOM CYLINDER
|
|
| 30. |
2182-1018D47
|
[2] |
PIPE
|
|
| 31. |
2191-4689
|
[1] |
PLATE
|
|
| 32. |
S0559153
|
[2] |
BOLT
|
|
| 33. |
S5010613
|
[2] |
WASHER
|
|
| 34. |
2181-9079
|
[2] |
FLANGE
|
|
| 35. |
2180-1026D2
|
[1] |
O-RING
|
|
| 36. |
S2212266
|
[4] |
BOLT
|
|
| 37. |
2158-1003D8
|
[2] |
PROTECTOR
|
|
| 4. |
2440-9242A
|
[1] |
CYLINDER;ARM
|
|
| 40. |
2181-2627D7
|
[2] |
ADAPTER
|
|
| 5. |
DS2011313
|
[6] |
HOSE PF3/4-2220L
|
|
| 6. |
2191-4290A
|
[2] |
PLATE
|
|
| 7. |
2124-1226
|
[6] |
CLAMP
|
|
| 8. |
S0559153
|
[3] |
BOLT
|
|
| 9. |
S4012633
|
[6] |
NUT
|
|
