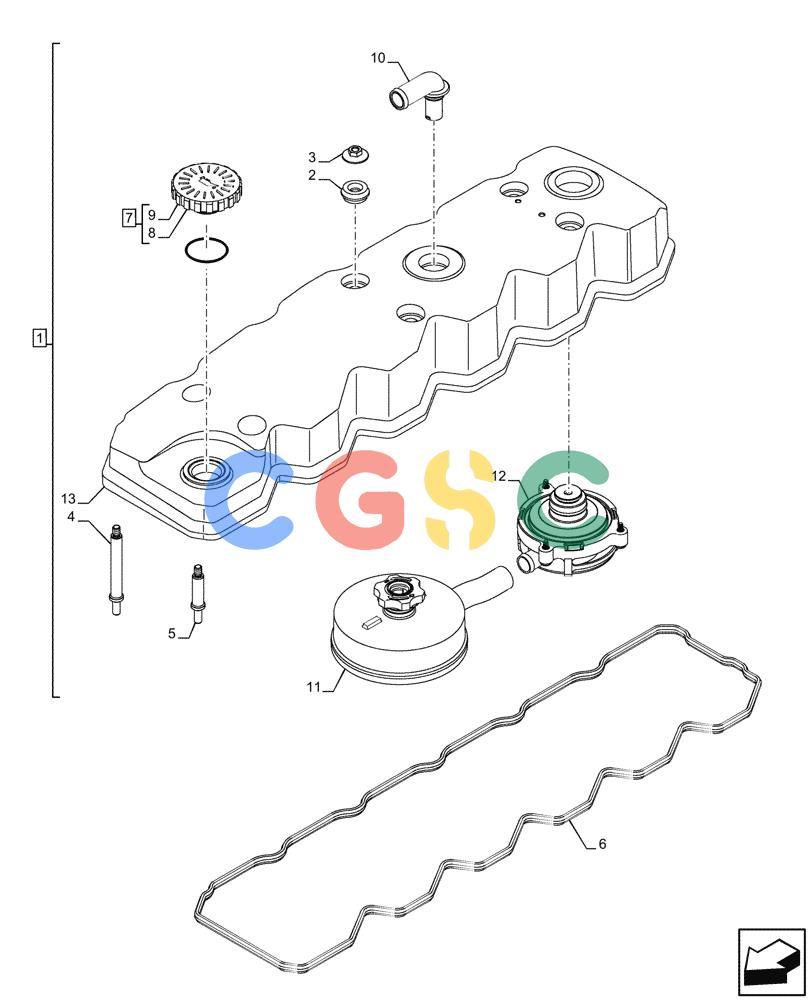

神钢零件查询(F4HFE613T A004) - ENGINE 504384900 - 84232924 (3/11-) (10.101.02[01]) - HEAD COVER, UP TO SERIAL NUMBER 1462087 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 504118461 | [1] | ASSY, Incl 10 - 13 | |
| 2. | 504070041 | [6] | GASKET | TOR Superseded by part number: 4899239 |
| 3. | 504075125 | [6] | FLANGE NUT | TOR Superseded by part number: 4893936 |
| 4. | 504088235 | [4] | SCREW | CUR |
| 5. | 504129243 | [2] | SCREW | SCREW |
| 6. | 504070038 | [1] | GASKET | SM Superseded by part number: 2853784 |
| 7. | 504262827 | [1] | CAP | TORASSY, Incl 8, 9 |
| 8. | 98412146 | [1] | GASKET | TOR Superseded by part number: 2852774 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 1 |
| 12. | 504371134 | [1] | VALVE | TOR Superseded by part number: |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONHead cover, Incl in 1 |
