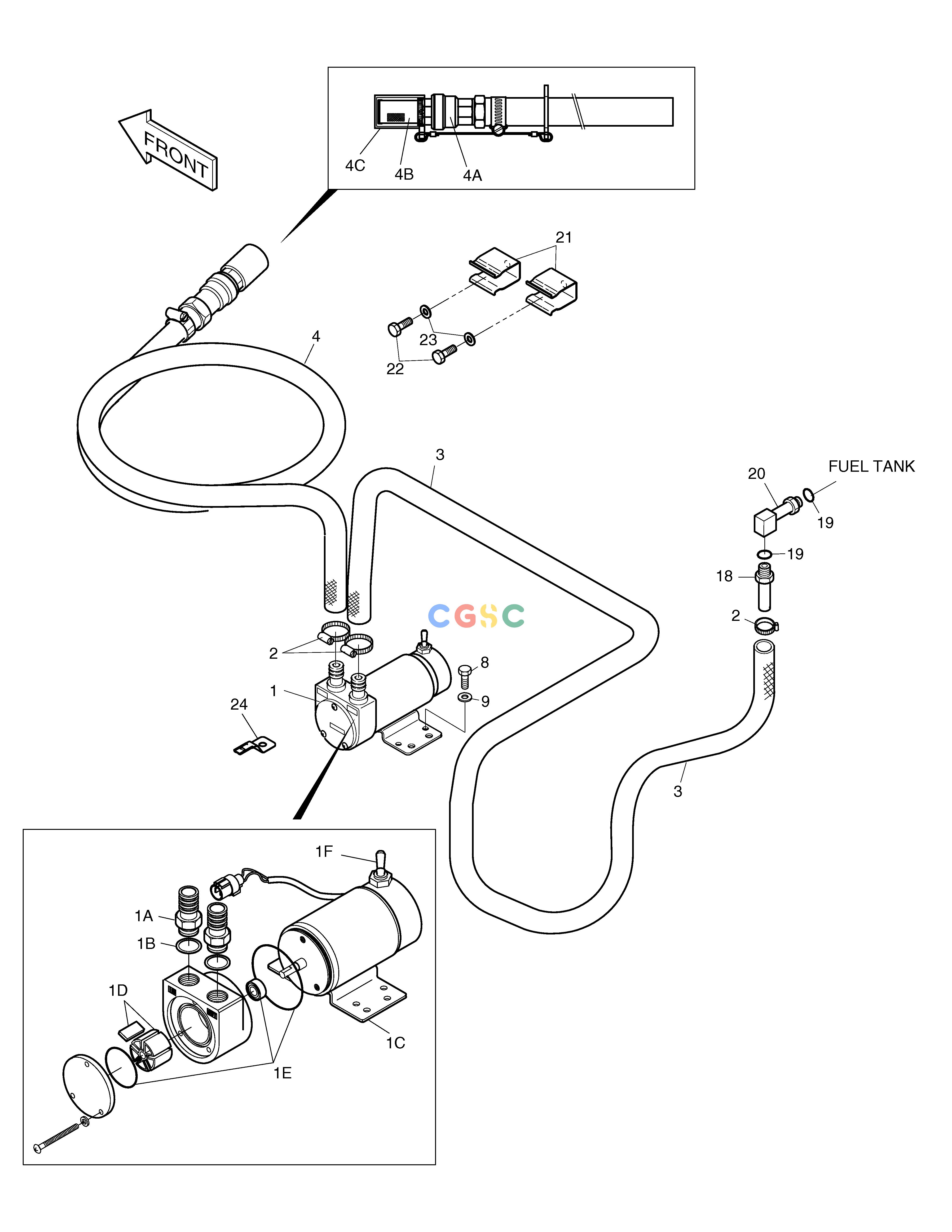

斗山零件查询FUEL FILLER PUMP ASS'Y SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00371
|
[-] |
PUMP ASS'Y
|
|
| -. |
401-00371A
|
[-] |
PUMP ASS'Y
|
|
| 1. |
401-00373
|
[1] |
PUMP;FUEL
|
|
| 18. |
2181-2104D6
|
[1] |
ADAPTER
|
|
| 19. |
S8000181
|
[2] |
O-RING
|
|
| 1A. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 1B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 1C. |
523-00002A
|
[1] |
MOTOR;FUEL TRANSFER PUMP
|
|
| 1D. |
407-00001
|
[1] |
. VANE KIT
|
|
| 1E. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 1F. |
2549-9096
|
[1] |
SWITCH;TOGGLE
|
|
| 2. |
S8450023
|
[3] |
CLAMP
|
|
| 20. |
2181-2295D15
|
[1] |
ELBOW
|
|
| 21. |
124-00152A
|
[2] |
CLAMP
|
|
| 22. |
S2208471
|
[2] |
BOLT;SOCKET M8X1.25X12
|
|
| 23. |
S5110501
|
[2] |
WASHER;SPRING M8
|
|
| 24. |
195-02154
|
[1] |
BRACKET
|
|
| 3. |
2185-1353D29
|
[1] |
HOSE
|
|
| 3. |
2185-1247D84
|
[1] |
HOSE PF3/4-2500L
|
|
| 4. |
185-00167D3
|
[1] |
HOSE
|
|
| 4A. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 4B. |
2471-1152
|
[1] |
. STRAINER
|
|
| 4C. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 8. |
S0508553
|
[4] |
BOLT
|
|
| 9. |
S5010513
|
[4] |
WASHER
|
|
