斗山零件查询LAMP ASS'Y-GERMAN SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
690 次

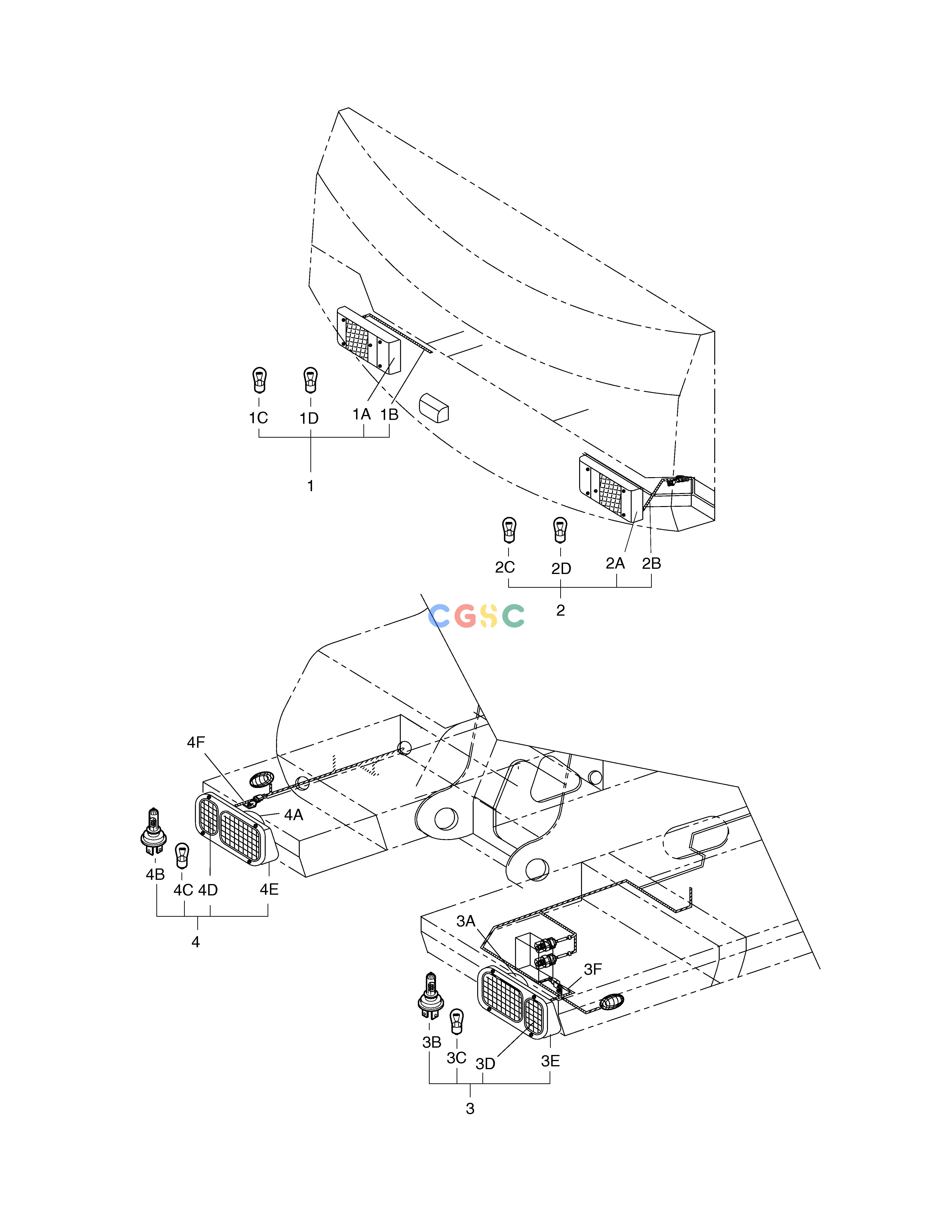

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
534-00009
|
[-] |
LAMP ASS'Y
|
|
| 1. |
534-00008
|
[1] |
LAMP ASS'Y;REAR COMBI(L.H)
|
|
| 1A. |
2534-6022
|
[1] |
CASE;LAMP(L.H)
|
|
| 1B. |
530-00034
|
[1] |
HARNESS;REAR LAMP
|
|
| 1C. |
S864221H
|
[2] |
BULB 24V 21W
|
|
| 1D. |
S863210H
|
[1] |
BULB(POSITION)24V 10W
|
|
| 2. |
534-00007
|
[1] |
LAMP ASS'Y;REAR COMBI(R.H)
|
|
| 2A. |
2534-6021
|
[1] |
CASE;LAMP(R.H)
|
|
| 2B. |
530-00034
|
[1] |
HARNESS;REAR LAMP
|
|
| 2C. |
S864221H
|
[2] |
BULB 24V 21W
|
|
| 2D. |
S863210H
|
[1] |
BULB(POSITION)24V 10W
|
|
| 2E. |
S0504603
|
[2] |
BOLT
|
|
| 2F. |
S5100303
|
[2] |
WASHER
|
|
| 2G. |
S4012303
|
[2] |
NUT
|
|
| 3. |
534-00014
|
[1] |
LAMP ASS'Y;FRONT COMBI(L.H)
|
|
| 3A. |
2534-6032
|
[1] |
CASE;LAMP
|
|
| 3B. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 3C. |
S861203H
|
[1] |
BULB 24V 3W
|
|
| 3D. |
534-00011
|
[1] |
LAMP;FRONT TURN SIGNAL
|
|
| 3E. |
2621-3791A
|
[1] |
COVER;LAMP(L.H.)
|
|
| 3F. |
2530-1652
|
[1] |
HARNESS;FRONT LAMP
|
|
| 4. |
534-00013
|
[1] |
LAMP ASS'Y;FRONT COMBI(R.H)
|
|
| 4A. |
2534-6032
|
[1] |
CASE;LAMP
|
|
| 4B. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 4C. |
S861203H
|
[1] |
BULB 24V 3W
|
|
| 4D. |
534-00011
|
[1] |
LAMP;FRONT TURN SIGNAL
|
|
| 4E. |
2621-3792A
|
[1] |
COVER;LAMP(R.H.)
|
|
| 4F. |
2530-1652
|
[1] |
HARNESS;FRONT LAMP
|
|
