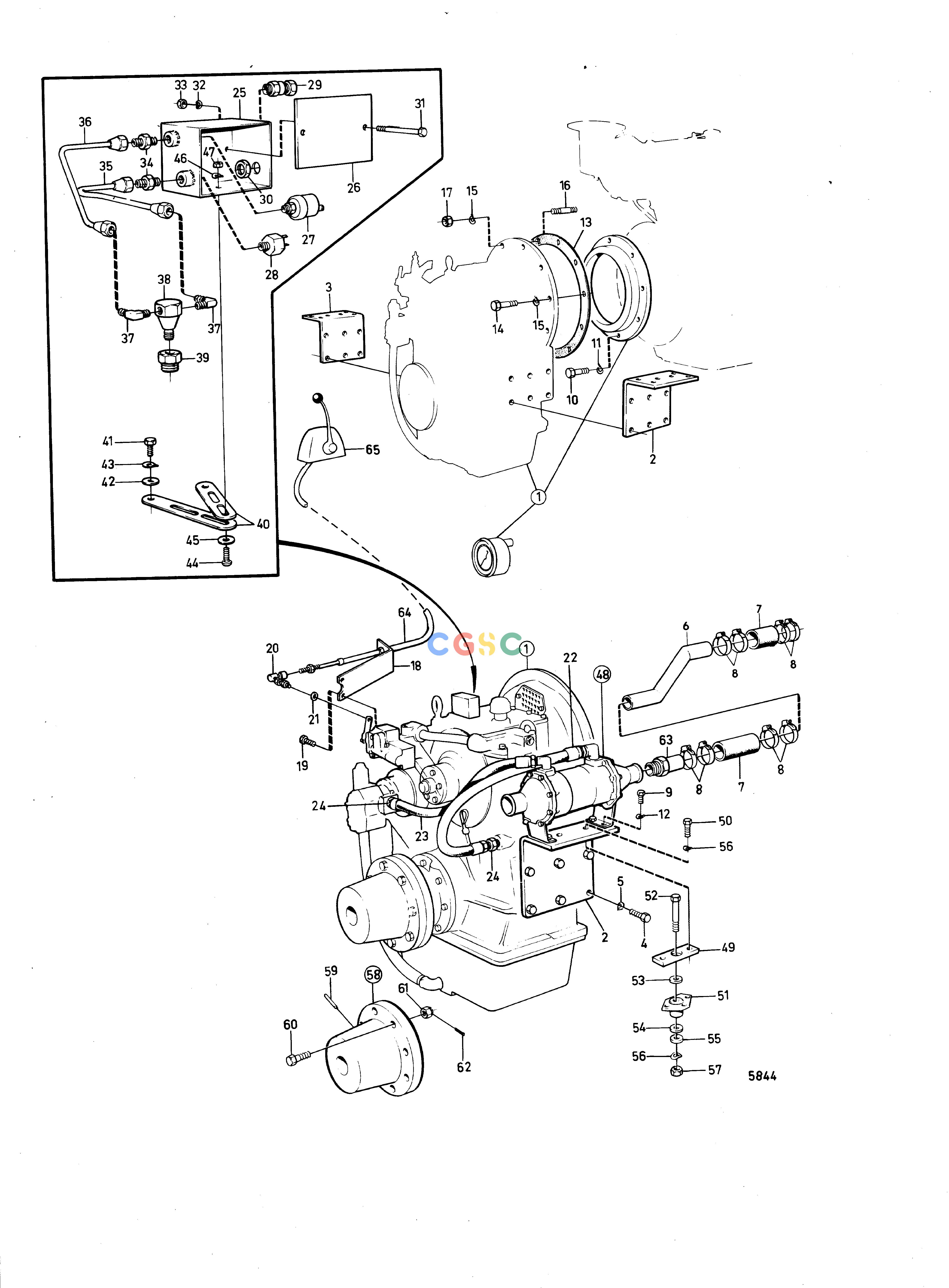

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCTransmissionsReverse Gear Twin Disc MG514 with Installation Comp. MOXXXX/42850-EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
824311
|
[1] |
Bracket
|
Replaced by 831175 + 17276 + 804312 + 819067 + 819068 + 940191 + 2pcs 950021
|
| 2. |
837088
|
[1] |
Bracket
|
When exchanging reverse gear MS3B to MS3C
|
| 3. |
836123
|
[1] |
Bracket
|
Replaced by 831175 + 17276 + 804312 + 819067 + 819068 + 940191 + 2pcs 950021
|
| 3. |
837068
|
[1] |
Bracket
|
When exchanging reverse gear MS3B to MS3C
|
| 4. |
955601
|
[12] |
Hexagon screw
|
|
| 5. |
941914
|
[12] |
Spring washer
|
|
| 6. |
836114
|
[1] |
Tube
|
|
| 7. |
943370
|
[1] |
Rubber hose
|
When exchanging reverse gear MS3B to MS3C., L=140mm
|
| 8. |
943478
|
[8] |
Hose clamp
|
|
| 9. |
940098
|
[4] |
Hexagon screw
|
|
| 10. |
955561
|
[8] |
Hexagon screw
|
|
| 11. |
940280
|
[8] |
Spring washer
|
|
| 12. |
942336
|
[4] |
Spring washer
|
|
| 13. |
800314
|
[1] |
Gasket
|
|
| 14. |
940134
|
[10] |
Hexagon screw
|
|
| 15. |
941909
|
[12] |
Spring washer
|
|
| 16. |
953290
|
[2] |
Stud
|
|
| 17. |
940157
|
[2] |
Hexagon nut
|
|
| 18. |
845508
|
[1] |
Control attachment
|
|
| 19. |
940159
|
[2] |
Hexagon screw
|
|
| 20. |
842782
|
[1] |
Ball joint
|
|
| 21. |
955892
|
[1] |
Washer
|
|
| 22. |
824487
|
[1] |
Lubricating oil hose
|
|
| 23. |
836476
|
[1] |
Lubricating oil hose
|
|
| 24. |
949707
|
[2] |
Reduction nipple
|
|
| 25. |
843224
|
[1] |
Box
|
|
| 26. |
843225
|
[1] |
Cap
|
|
| 27. |
837781
|
[1] |
Oil pressure sensor
|
|
| 28. |
843813
|
[1] |
Contact
|
Alarm
|
| 29. |
881192
|
[1] |
Grommet
|
|
| 30. |
880243
|
[1] |
Nut
|
|
| 31. |
963205
|
[2] |
Hexagon screw
|
|
| 32. |
941906
|
[2] |
Spring washer
|
|
| 33. |
955781
|
[2] |
Hexagon nut
|
|
| 34. |
954335
|
[1] |
Nipple
|
|
| 35. |
845645
|
[1] |
Tube
|
|
| 36. |
844264
|
[1] |
Oil pipe
|
|
| 37. |
954342
|
[3] |
Elbow nipple
|
|
| 38. |
942490
|
[1] |
T-nipple
|
|
| 39. |
942919
|
[1] |
Reduction nipple
|
|
| 40. |
965541
|
[4] |
Bracket
|
|
| 41. |
955535
|
[2] |
Hexagon screw
|
|
| 42. |
940097
|
[2] |
Washer
|
|
| 43. |
942336
|
[2] |
Spring washer
|
|
| 44. |
955272
|
[2] |
Hexagon screw
|
|
| 45. |
960139
|
[4] |
Washer
|
|
| 46. |
941906
|
[2] |
Spring washer
|
|
| 47. |
955781
|
[2] |
Hexagon nut
|
|
| 48. |
837100
|
[1] |
Oil cooler
|
|
| 49. |
824374
|
[2] |
Intermediate plate
|
|
| 50. |
955589
|
[4] |
Hexagon screw
|
|
| 51. |
836961
|
[2] |
Rubber cushion
|
|
| 52. |
959827
|
[2] |
Hexagon screw
|
|
| 53. |
836325
|
[2] |
Washer
|
|
| 54. |
836963
|
[2] |
Rubber washer
|
|
| 55. |
836962
|
[2] |
Stop washer
|
|
| 56. |
941912
|
[6] |
Spring washer
|
|
| 57. |
955829
|
[2] |
Hexagon nut
|
|
| 58. |
837093
|
[1] |
Clutch flange
|
When exchanging reverse gear MS3B to MS3C., 1'' hole for propeller shaft.
|
| 59. |
907661
|
[2] |
Taper pin
|
|
| 60. |
955772
|
[8] |
Screw
|
|
| 61. |
955889
|
[8] |
Castle nut
|
|
| 62. |
907881
|
[8] |
Split pin
|
(907877)
|
| 63. |
942315
|
[2] |
Hose nipple
|
|
| 64. |
|
|
|
See group 9
|
| 65. |
|
|
|
See group 9
|
