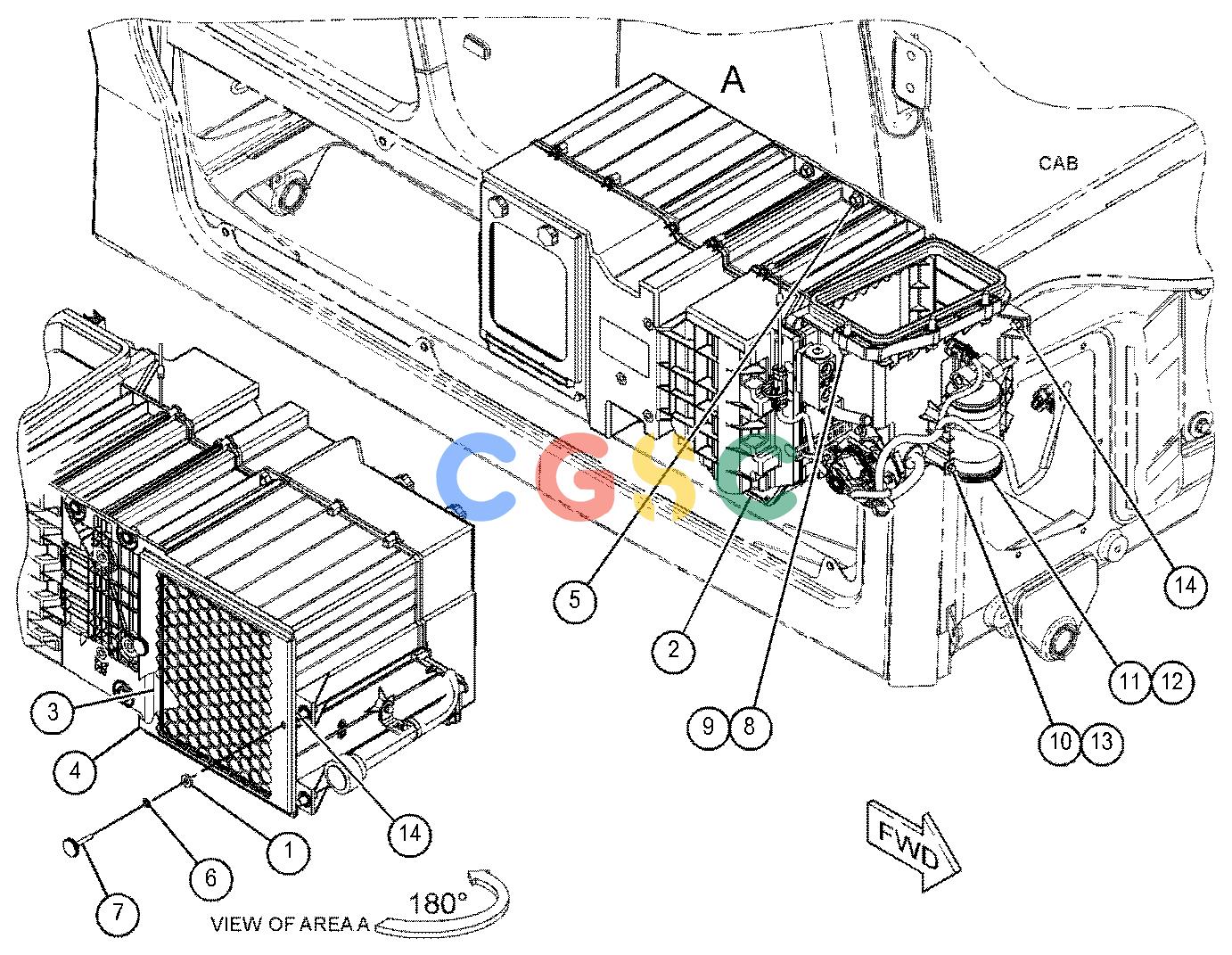

卡特零件查询（730） 478-9886: AIR CONDITIONER & MOUNTING GP
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 229-2704 | [2] | SEAL | |
| 2. | 484-9673Y | [1] | AIR CONDITIONER GP | |
| 3. | 485-5435 | [1] | FILTER-CAB AIR | |
| 4. | 488-0176 | [1] | COVER | |
| 5. | 175-7141M | [3] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 6. | 275-6710 | [2] | RETAINER(PUSH ON) | |
| 7. | 514-1267M | [2] | SCREW(M6X1X35-MM) | |
| 8. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 9. | 8T-4186M | [3] | BOLT(M10X1.5X40-MM) | |
| 10. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 11. | 355-1793 | [1] | DRYER AS-REFRIGERANT | |
| 12. | 485-5438 | [2] | BRACKET | |
| 13. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 14. | 342-9913M | [4] | BOLT-FLANGE HEAD(M10X1.5X20-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
