斗山零件查询LOCK VALVE PIPING-BOOM 4.6m SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
313 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

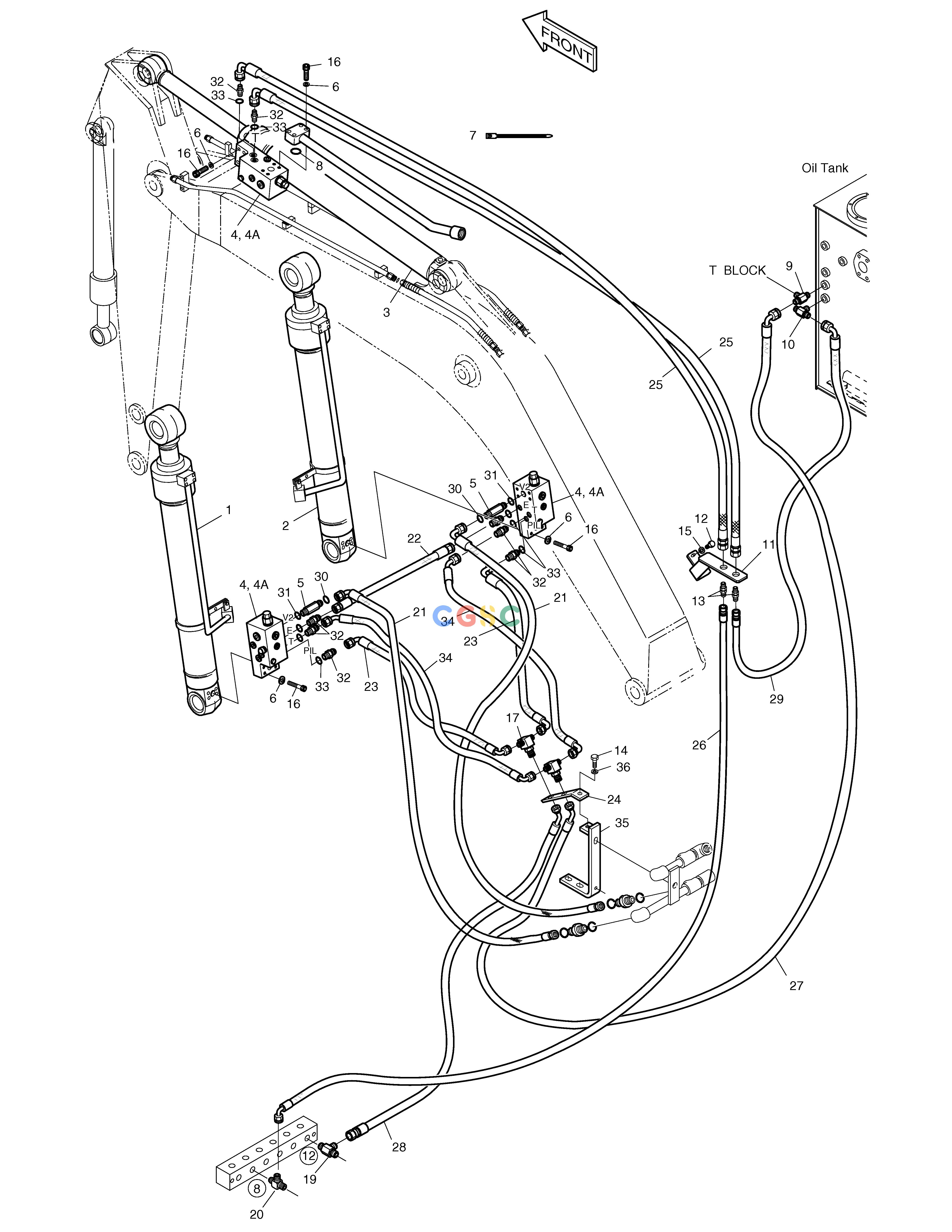

400-00136
|
[-] |
LOCK VALVE PIPING
|
|
| 1. |
440-00299
|
[1] |
BOOM CYLINDER(L.H.)
|
|
| 10. |
2181-2281D2
|
[1] |
TEE PFO1/2-PF1/2-PF3/8
|
|
| 11. |
195-00068
|
[1] |
BRAKCET
|
|
| 12. |
S0511953
|
[2] |
BOLT
|
|
| 13. |
181-00007
|
[2] |
ADAPTER
|
|
| 14. |
S0515153
|
[1] |
BOLT M12X1.75X28
|
|
| 15. |
S5102603
|
[2] |
. WASHER
|
|
| 16. |
S2212666
|
[16] |
BOLT;SOCKET M10X1.5X50
|
|
| 17. |
181-00008
|
[2] |
TEE
|
|
| 19. |
2181-1951D11
|
[1] |
TEE
|
|
| 2. |
440-00300
|
[1] |
BOOM CYLINDER(R.H.)
|
|
| 20. |
2181-1951D16
|
[1] |
TEE
|
|
| 21. |
DS2013361
|
[2] |
HOSE UNF13/16-580L
|
|
| 22. |
2184-1096D8
|
[1] |
HOSE PF1/4-610L
|
|
| 23. |
DS2058214
|
[2] |
HOSE PF1/4-500L
|
|
| 24. |
195-02400
|
[1] |
BRACKET
|
|
| 25. |
2184-1046D252
|
[2] |
HOSE PF1/4-5630L
|
|
| 26. |
2184-1046D283
|
[1] |
HOSE PF3/8-2100L
|
|
| 27. |
2184-1076D60
|
[1] |
HOSE PF3/8-1700L
|
|
| 28. |
2184-1060D203
|
[1] |
HOSE PF3/8-1700L
|
|
| 29. |
2184-1076D31
|
[1] |
HOSE PF3/8-800L
|
|
| 3. |
440-00064
|
[1] |
CYLINDER;ARM
|
|
| 30. |
S8030081
|
[2] |
O-RING
|
|
| 31. |
180-00073D4
|
[2] |
SEAL
|
|
| 32. |
2181-1126D14
|
[8] |
ADAPTER
|
|
| 33. |
S8000111
|
[8] |
O-RING
|
|
| 34. |
DS2058215
|
[2] |
HOSE PF1/4-550L
|
|
| 35. |
195-02395
|
[1] |
BRACKET
|
|
| 36. |
S5102703
|
[1] |
WASHER
|
|
| 4. |
420-00003A
|
[3] |
VALVE;LOCK
|
|
| 4A. |
K9000998
|
[1] |
SEAL KIT
|
|
| 5. |
2181-4133D37
|
[2] |
ADAPTER
|
|
| 6. |
S5110601
|
[16] |
WASHER;SPRING M10
|
|
| 7. |
2124-1084D2
|
[15] |
CLIP;BAND
|
|
| 8. |
S8000281
|
[1] |
O-RING
|
|
| 9. |
2181-1951D21
|
[1] |
TEE
|
|
