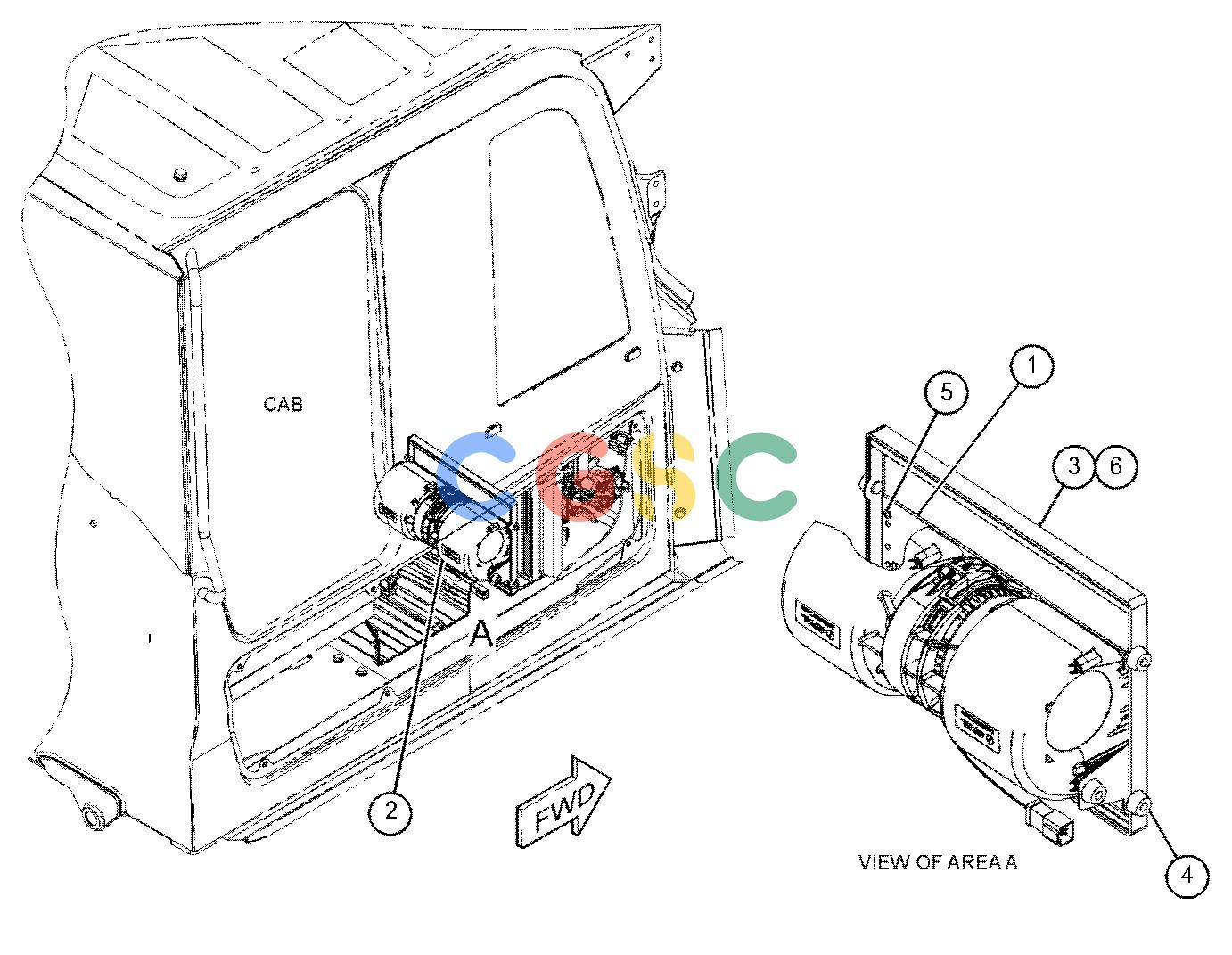

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 153-6932 | [1] | GASKET | |
| 2. | 361-5586 | [1] | BLOWER AS(24-VOLT) | |
| 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | ||
| 9X-3401 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | ||
| 3. | 484-9679 | [1] | PLATE AS | |
| 4. | 532-6166 | [6] | MOUNT | |
| 5. | 8T-0337M | [8] | SCREW-MACHINE(M4X0.7X12-MM) | |
| 6. | 6V-2496D | SEAL(1.2-M) | ||
| D | ORDER BY THE METER | |||
| M | METRIC PART | |||
