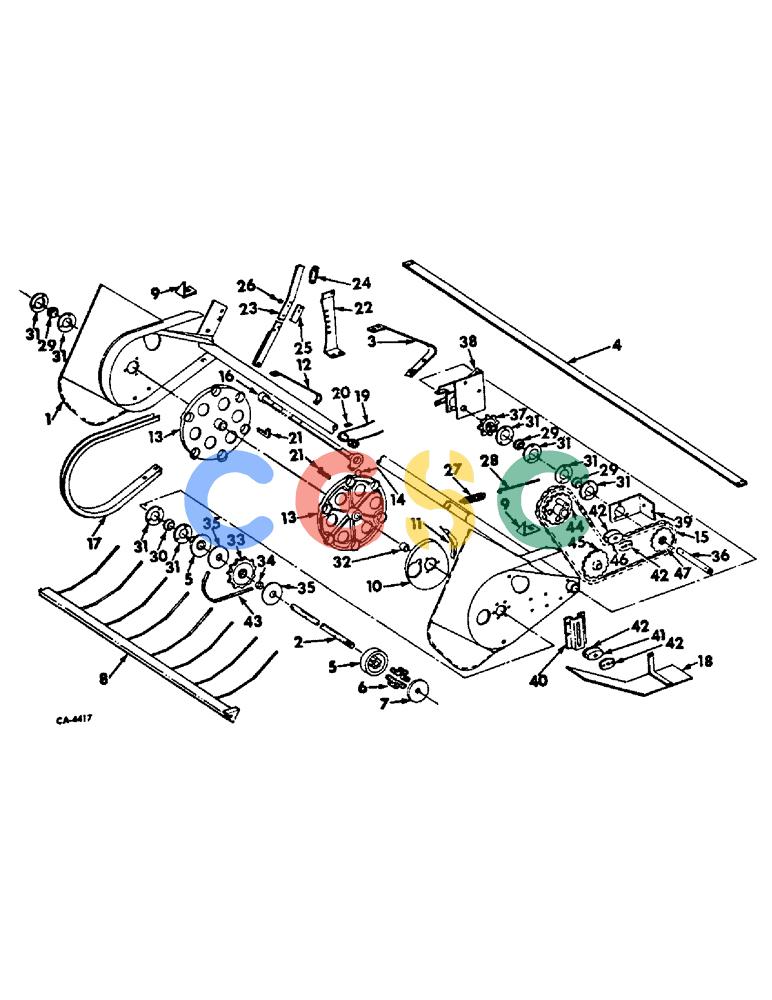

| 1. |
201984C1
|
[1] |
FRAME
|
IH
ASSY, pickup Superseded by part number: 210537C1
|
| . . |
14994R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2 Superseded by part number: 434-512
|
| . . |
23821R1
|
[2] |
HEADED PIN,5/16" x 2.609"
|
IH
PIN, HEADED, 5/16" x 2.609" Superseded by part number: 439-5544
|
| . . |
648002
|
[2] |
1/8" x 3/4"
|
KNIFE
|
| 2. |
663332R2
|
[1] |
SHAFT
|
IH
pickup cyl drive Superseded by part number: 210558C1
|
| . . |
425-1516
|
[1] |
JAM NUT,Jam, 1"-14, G5
|
CAS
1-14 znd hex. jam Superseded by part number: 87310319
|
| . . |
21788R1
|
[3] |
WASHER
|
IH
1-1/32 x 1-7/16 x 18 ga C-Z (as required) Superseded by part number: 591715R1
|
| . . |
21789R1
|
[2] |
WASHER
|
IH
1-1/32 x 1-1/4 x 16 ga C-Z (as required) Superseded by part number: 495-81065
|
| . . |
20529R1
|
[1] |
PIN,7/32" x 1 1/2", Slotted
|
IH
Superseded by part number: 70921452
|
| 3. |
201990C2
|
[20] |
SUPPORT
|
IH
pickup stripper
|
| 4. |
201992C1
|
[1] |
|
P
SEPARATOR, pickup stripper
|
| . . |
27607R1
|
[7] |
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"
|
IH
SCREW, 5/16-18 x 3/4 znd hex washer hd tap Superseded by part number: 87034817
|
| . . |
22859R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 7 ga C-Z Superseded by part number: 495-81113
|
| . . |
21496R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 11 ga C-Z Superseded by part number: 86624142
|
| 5. |
202399C1
|
[1] |
HUB
|
IH
pickup slip clutch
|
| 5. |
662026R4
|
[1] |
HUB
|
IH
pickup slip clutch
|
| . . |
576483R1
|
[2] |
LOCK PIN,5/16" x 1 1/2", Slotted
|
IH
Pin, 5/16" x 1 1/2", Slotted Superseded by part number: 86624089
|
| 6. |
M1015
|
[6] |
SPRING
|
IH
pickup clutch
|
| 7. |
202090C1
|
[1] |
WASHER
|
IH
pickup slip clutch
|
| 8. |
201996C1
|
[1] |
|
P
TINE ASSY, pickup cover
|
| 9. |
201986C1
|
[2] |
|
P
RETAINER, end tine
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 znd sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 10. |
201951C1
|
[1] |
CAM
|
IH
pickup tooth control
|
| . . |
18764R1
|
[3] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 1 znd hex-hd mach Superseded by part number: 424-512
|
| . . |
619855R1
|
[3] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 11. |
201952C1
|
[1] |
|
P
GUIDE ASSY, tooth bar roller
|
| . . |
133822
|
[1] |
COVER,Cross Flat Hd, 5/16"-18 x 5/8"
|
PA
SCREW, Cross Flat Hd, 5/16"-18 x 5/8"
|
| . . |
134512
|
[1] |
LATCH,8.28mm ID x 15.21mm OD
|
IH
5/16 C-Z csk ext tooth lock
|
| 12. |
201991C2
|
[20] |
BRACE
|
IH
pickup stripper
|
| . . |
18784R1
|
[20] |
BOLT,Hex, 3/8"-16 x 2 3/4", G2
|
IH
3/8 x 2-3/4 znd hex-hd mach Superseded by part number: 88444
|
| . . |
120377
|
[20] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[20] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 13. |
201962C1
|
[2] |
END
|
IH
pickup cylinder
|
| . . |
378484R1
|
[2] |
HEADED PIN,5/16" x 2"
|
IH
PIN, 5/16 x 2 znp std-hd Superseded by part number: 439-5532
|
| 14. |
ST543
|
[6] |
BALL BEARING,15mm ID x 35mm OD x 11mm W
|
IH
BEARING ASSY, pickup cyl tine control
|
| . . |
21787R1
|
[30] |
WASHER
|
IH
2-1/16 x 2-15/16 x 16 ga C-Z (as required) Superseded by part number: 86625259
|
| . . |
137273
|
[6] |
COTTER PIN
|
IH
PIN, 3/16 x 2-1/2 C-Z cot. Superseded by part number: 103413
|
| 16. |
204618C91
|
[6] |
|
P
BAR ASSY, pickup tooth
|
| 17. |
201989C1
|
[20] |
STRIPPER
|
IH
pickup
|
| 18. |
662297R91
|
[1] |
SHIELD
|
IH
ASSY, pickup drive
|
| . . |
21142R1
|
[1] |
BOLT, 7/16 x 3/4 znd hex-hd mach
|
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 19. |
208559C2
|
[60] |
VALVE SPRING
|
IH
TINE, pickup
|
| . . |
180077
|
[60] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
SCREW, 5/16-18 x 3/4 znd hex-hd cap Superseded by part number: 87872
|
| 20. |
27513K
|
[60] |
CUP WASHER
|
IH
WASHER PICKUP CYL, spring tooth
|
| . . |
598803R1
|
[60] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd
|
IH
BOLT, 5/16 x 1 znd sq-nk crg Superseded by part number: 88992
|
| . . |
938017R1
|
[60] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16-18 znd hex lock Superseded by part number: 145458
|
| 21. |
Q3931
|
[2] |
KEY,Gib, 5/16" Sq x 1 7/8"
|
IH
5/16 x 1-7/8 sq tapered
|
| 22. |
674153R1
|
[1] |
SUPPORT
|
IH
QUADRANT, pickup lever
|
| . . |
12872R1
|
[1] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| . . |
142619H
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 11 ga C-Z Superseded by part number: 86624144
|
| 23. |
674154R92
|
[1] |
LEVER
|
IH
ASSY, pickup
|
| . . |
22144R1
|
[2] |
RIVET
|
IH
3/8 x 1 C-Z small b-hd Superseded by part number: 45-616
|
| . . |
663922R1
|
[1] |
PIN,5/8" x 1 3/8"
|
IH
5/8 x 1-3/8 C-Z std-hd Superseded by part number: 21808R1
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 24. |
662340R1
|
[1] |
GRIP
|
IH
lever black
|
| 25. |
662506R1
|
[1] |
CLIP
|
IH
pickup lever
|
| 26. |
18489D
|
[1] |
SPRING
|
IH
pickup lever clip
|
| . . |
22753R1
|
[1] |
HEADED PIN,5/16" x 2 3/16"
|
IH
PIN, HEADED, 5/16" x 2 3/16"
|
| 27. |
MA731
|
[1] |
SPRING
|
IH
pickup balance
|
| 28. |
674158R1
|
[1] |
BOLT,3/8" - 16 x 14.6"
|
IH
balance spring
|
| . . |
21741R1
|
[1] |
WASHER
|
IH
13/32 x 7/8 x 11 ga C-Z Superseded by part number: 495-81133
|
| 29. |
671681R91
|
[3] |
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cyl RH
|
| 30. |
155264C91
|
[1] |
BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W
|
IH
pickup cyl LH
|
| 31. |
671682R1
|
[8] |
NO LONGER SERVICED
|
IH
FLANGE, pickup cyl brg Superseded by part number: 3101582R1
|
| 32. |
661036R1
|
[1] |
SPACER
|
IH
pickup cyl shaft inner
|
| 33. |
662023R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup slip clutch
|
| 34. |
662079R1
|
[1] |
BUSHING
|
IH
pickup slip clutch sprocket
|
| 35. |
662291R2
|
[2] |
LINING
|
IH
FACING, pickup drive clutch Superseded by part number: 662291R3
|
| 36. |
667713R2
|
[1] |
SHAFT
|
IH
pickup pivot drive
|
| . . |
551855R1
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/4 x 16 ga Superseded by part number: 21789R1
|
| 37. |
662024R2
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup pivot drive shaft
|
| . . |
21651R1
|
[1] |
LOCK PIN,5/16" x 2", Slotted
|
IH
Pin, 5/16" x 2", Slotted
|
| . . |
22004R1
|
[1] |
LOCK PIN,3/16" x 2", Slotted
|
IH
Pin, 3/16" x 2", Slotted Superseded by part number: 438-11232
|
| 38. |
674177R1
|
[1] |
SUPPORT
|
IH
BRACKET ASSY, pickup drive shaft pivot RH
|
| . . |
18795R1
|
[4] |
BOLT,Hex, 7/16"-14 x 1 1/4", G2
|
IH
7/16 x 1-1/4 C-Z hex-hd mach Superseded by part number: 179860
|
| . . |
NLS
|
[4] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 C-Z hex
|
| . . |
607891R1
|
[4] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| 39. |
667717R1
|
[1] |
BRACKET
|
IH
pickup pivot drive shaft LH
|
| . . |
18794R1
|
[2] |
BOLT,Hex, 7/16" - 14 x 1", Gr 2
|
IH
7/16 x 1 C-Z hex-hd mach Superseded by part number: 9706729
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 C-Z hex
|
| 40. |
667718R1
|
[1] |
BRACKET
|
IH
pickup idler
|
| 41. |
668147R1
|
[1] |
BLOCK
|
IH
tightener Superseded by part number: 667459R1
|
| 42. |
673666R1
|
[4] |
CAP
|
IH
REINFORCEMENT, block tightener
|
| . . |
21776R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2
|
IH
BOLT, 5/8 x 3-1/4 C-Z sq-nk crg Superseded by part number: 280563
|
| . . |
280374
|
[2] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
5-11 C-Z hex
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
608701R1
|
[2] |
WASHER
|
IH
21-32 x 1-1/4 x 16 ga C-Z Superseded by part number: 86624155
|
| . . |
21791R1
|
[2] |
WASHER
|
IH
31/32 x 1-1/2 x 9 ga C-Z Superseded by part number: 495-81064
|
| . . |
18723R1
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2
|
IH
BOLT, 5/8 x 2-3/4 C-Z sq-nk crg Superseded by part number: 411-1044
|
| 43. |
CA320
|
[1] |
SPARE PART
|
IH
CHAIN, pickup drive, no. ss stl chain, 28 links Superseded by part number: CS55
|
| 44. |
662025R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup drive
|
| . . |
18786R1
|
[1] |
BOLT,Hex, 3/8"-16 x 3 1/2", G2
|
IH
3/8 x 3-1/2 znd hex-hd mach Superseded by part number: 186283
|
| 45. |
582415R91
|
[1] |
DRIVE SPROCKET,9T
|
IH
SPROCKET ASSY, pickup drive idler, service for 180193C91
|
| . . |
18828R1
|
[1] |
BOLT,Hex, 5/8"-11 x 4", G5
|
IH
5/8 x 4 C-Z hex-hd mach Superseded by part number: 424-1064
|
| . . |
21782
|
[1] |
WASHER
|
IH
21/32 x 1-1/2 x 16 ga C-Z Superseded by part number: 495-81026, 495-81026, 84294563
|
| . . |
589068R1
|
[4] |
WASHER
|
IH
21/32 x 1-1/4 x 11 ga C-Z (as required) Superseded by part number: 495-51066
|
| 46. |
667459R1
|
[1] |
BLOCK
|
IH
tightener
|
| 47. |
662003R2
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup pivot drive
|
| . . |
21825R1
|
[1] |
LOCK PIN,5/16" x 1 3/4", Slotted
|
IH
Pin, 5/16" x 1 3/4", Slotted Superseded by part number: 438-12028
|
| . . |
22969R1
|
[1] |
LOCK PIN,3/16" x 1 3/4", Slotted
|
IH
Pin, , w/wire 16 ga x 8 in slt spring pin 3/16" x 1 3/4", Slotted Superseded by part number: 438-11228
|
