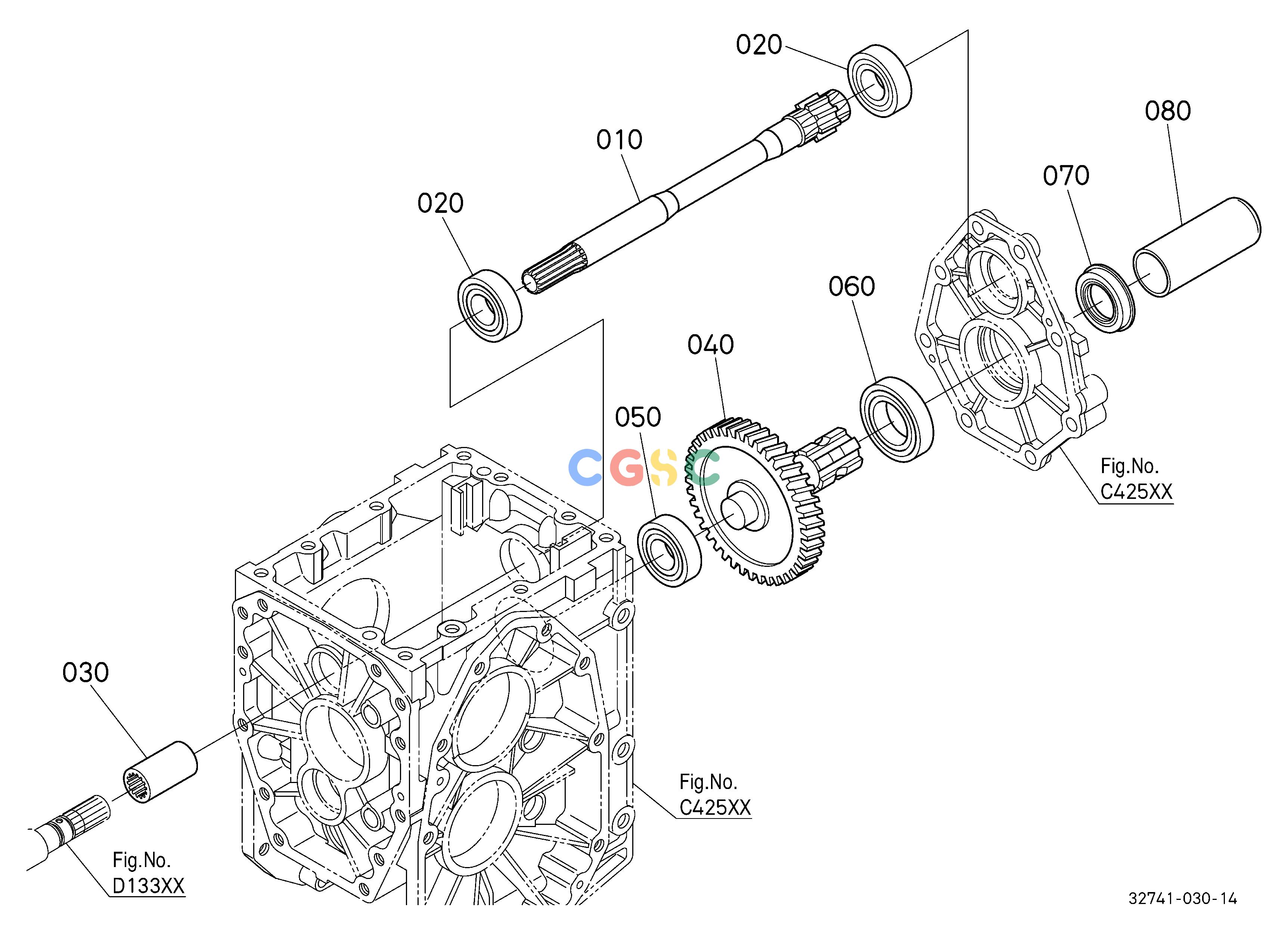

久保田零件查询D13200 PTO COUNTER SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20014412
|
[1] |
SHAFT,PTO DRIVE
|
1.8920(lbs); 0.860
|
| 020. |
0810106205
|
[2] |
BEARING,BALL
|
0.2640(lbs); 0.120
|
| 020. |
6A70016570
|
[2] |
BEARING,BALL K6205
|
0.2794(lbs); 0.127
|
| 030. |
6C05014520
|
[1] |
COUPLING
|
0.2178(lbs); 0.099
|
| 040. |
6C20014510
|
[1] |
SHAFT,PTO GEAR
|
4.2900(lbs); 1.950
|
| 050. |
0810106205
|
[1] |
BEARING,BALL
|
0.2640(lbs); 0.120
|
| 050. |
6A70016570
|
[1] |
BEARING,BALL K6205
|
0.2794(lbs); 0.127
|
| 060. |
0810106007
|
[1] |
BEARING,BALL
|
0.3520(lbs); 0.160
|
| 060. |
6A70016510
|
[1] |
BEARINGU,BALL
|
0.3300(lbs); 0.150
|
| 070. |
3741016550
|
[1] |
SEAL,OIL
|
0.0660(lbs); 0.030
|
| 080. |
3741063112
|
[1] |
CAP,PTO SHAFT
|
0.1210(lbs); 0.055
|
| 080. |
3122025820
|
[1] |
CAP
|
0.1210(lbs); 0.055
|
